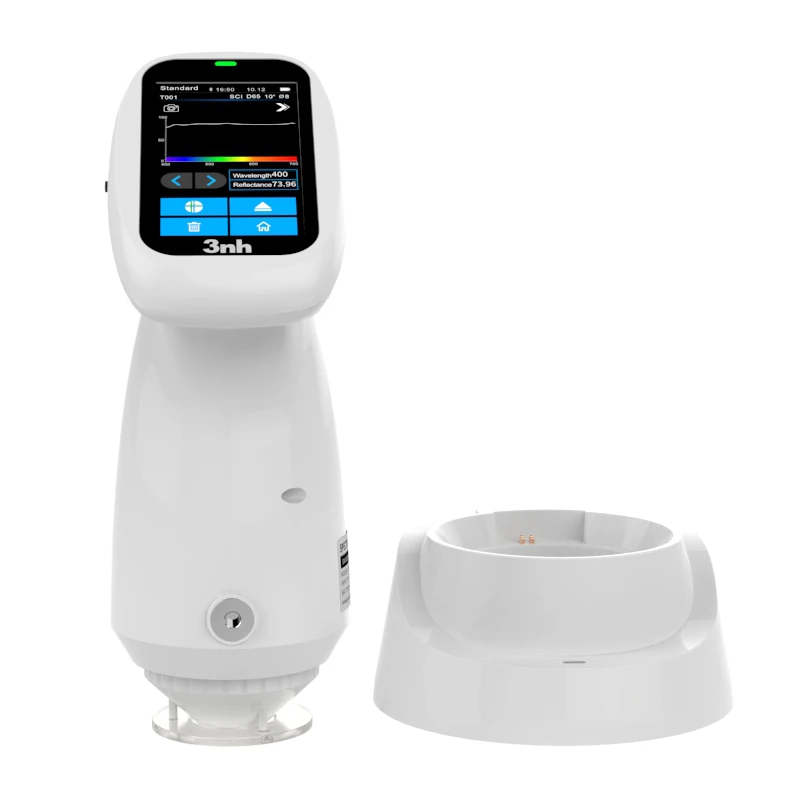

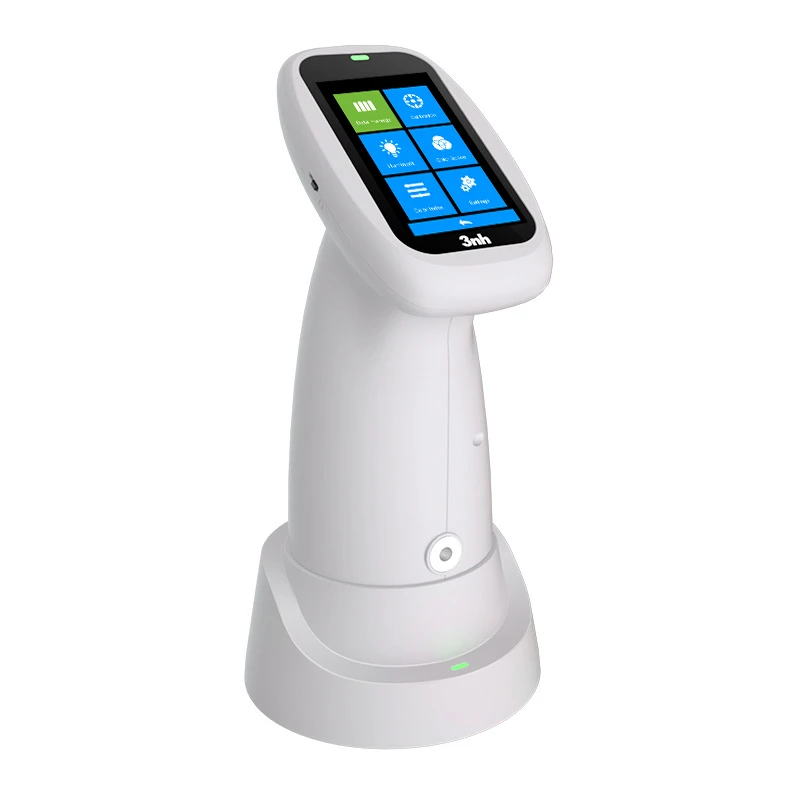

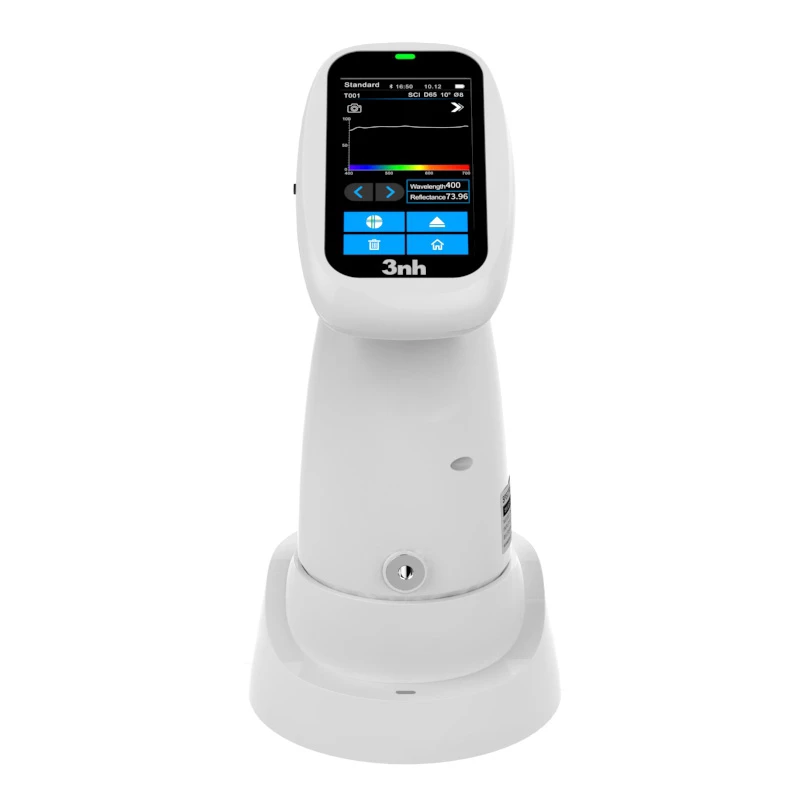

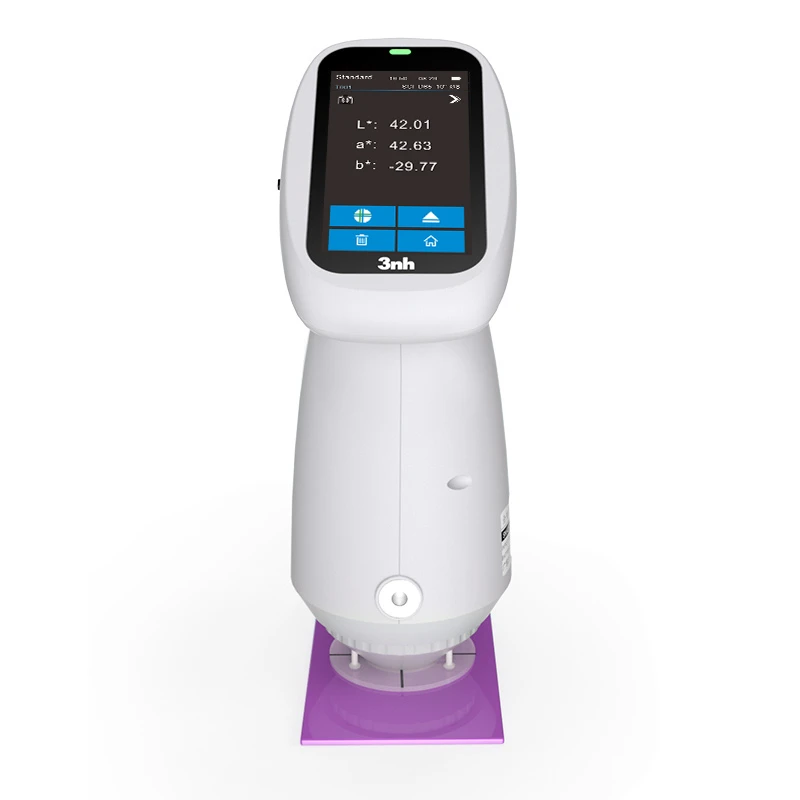

PS110 Spectrophotometer

PS110 Spectrophotometer Instructions Operating Manual PS110 Spectrophotometer PDF
This PS110 Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

PS110 is a professional and high-efficiency spectrophotometer equipped with a dual-row 16-group silicon photodiode array sensor, delivering excellent repeatability and inter-instrument consistency, ensuring stable and accurate measurement data. Adopting the internationally adopted D/8 optical structure and SCI technology, it is equipped with Φ4mm (flat + conical) measuring apertures, satisfying color management and quality control requirements in coatings, textiles, plastics, food, building materials, cosmetics and other industries.

Product Features

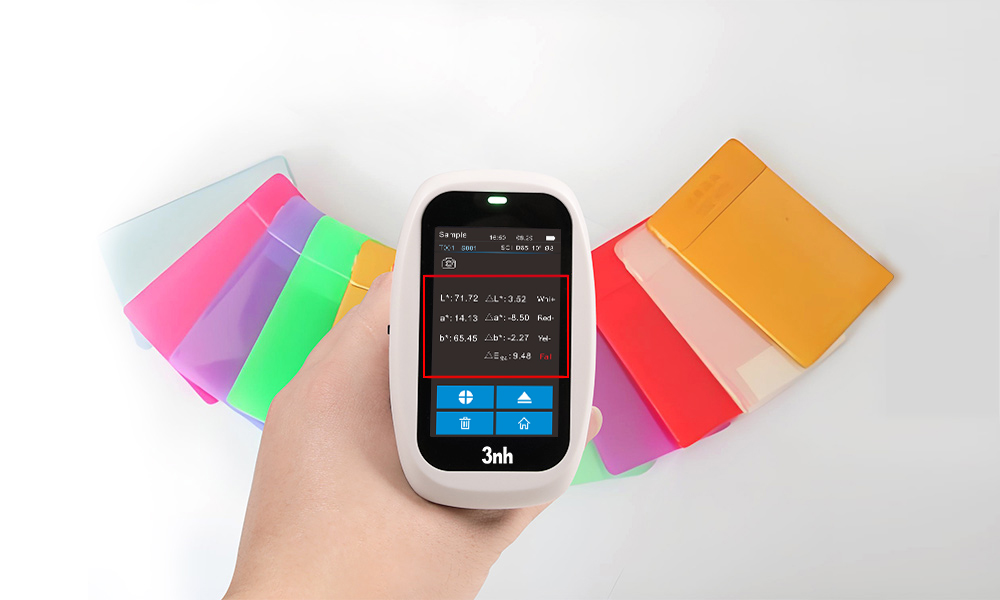

1. Excellent Measurement Performance

Professional Spectral Technology: With D/8 illumination and dual-row 16-group silicon photodiode array sensor, it accurately measures spectral reflectance within 400-700 nm.
Wide Aperture Compatibility: Φ4mm/Φ5mm (flat + conical) apertures adapt to various complex sample surfaces for high-precision color measurement.
High Repeatability: After warm-up calibration, the standard deviation of chromaticity value ΔE*ab ≤ 0.02, and spectral reflectance standard deviation ≤ 0.08%.
Low Inter-Instrument Difference: ΔE*ab ≤ 0.4 under MAV/SCI mode, ensuring high data consistency among multiple instruments.

1.Excellent Measurement Performance.jpg

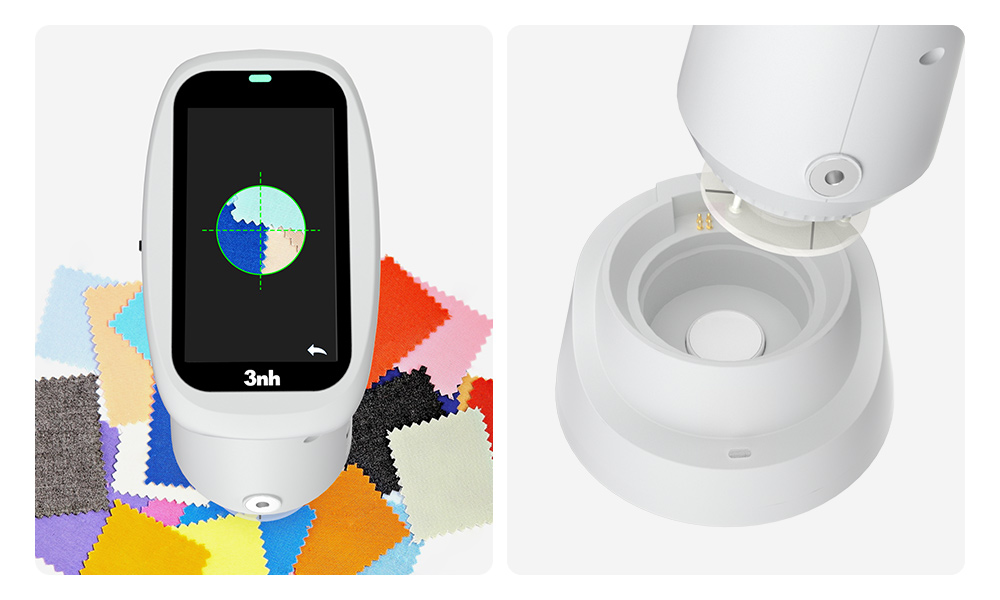

2. Easy Operation

Precise Positioning: Stable sheet positioning with flat + conical apertures enables easy targeting of small or irregular samples.
Simple Calibration: Supports contact whiteboard calibration, which can be completed in minutes.
Intuitive Interface: 2.8-inch TFT true-color capacitive touch screen displays spectral graphs, color values, color differences, pass/fail results, color simulation and color tendency.

2.Easy Operation.jpg

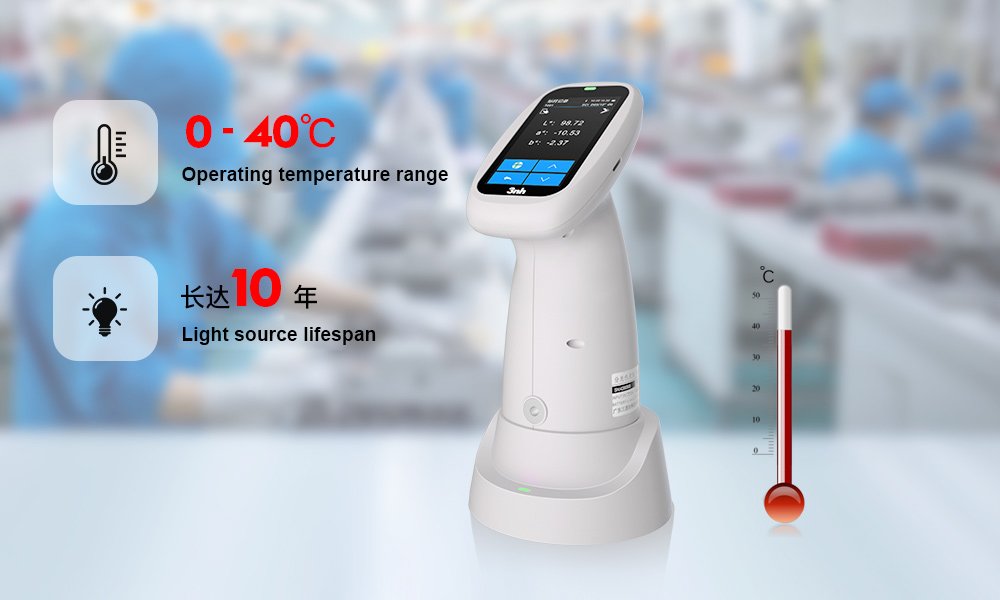

3. Strong Environmental Adaptability

Wide Temperature Range: Stable operation at 0-40°C, suitable for workshops and laboratories.
Durable & Reliable: Full-spectrum LED light source lifespan up to 10 years (＞1.2 million measurements); rugged housing for industrial environments.

3.Strong Environmental Adaptability.jpg

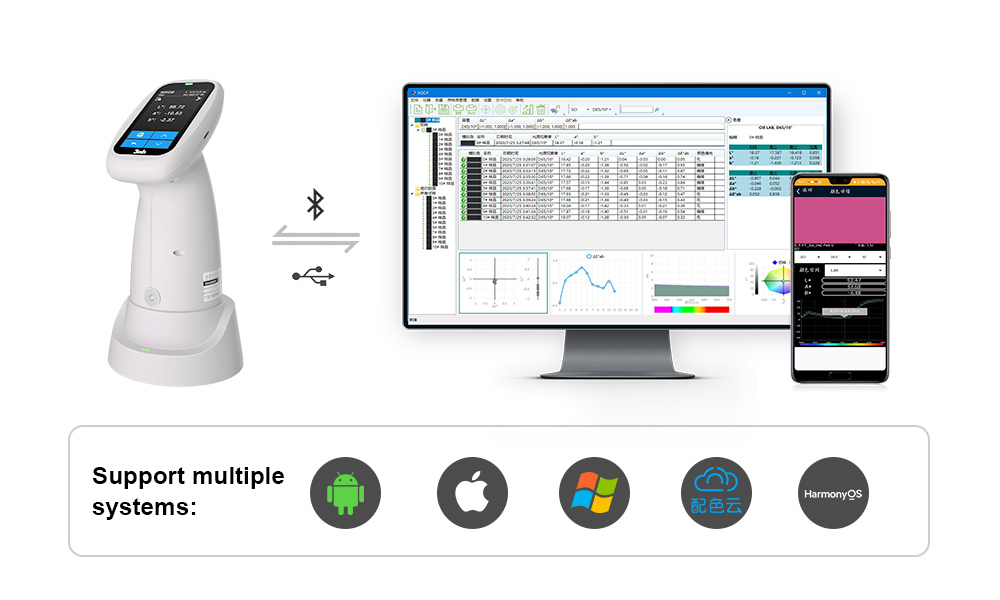

4. Excellent Data Management

Large Capacity Storage: Stores 200 standard samples and 10,000 test samples (SCI/SCE data supported simultaneously).
Multi-Device Connectivity: USB and Bluetooth®5.0 interfaces; compatible with Android, iOS, Windows, WeChat Mini Program and HarmonyOS for data transmission, sharing and remote management.

4.Excellent Data Management.jpg


Applications

PS110 spectrophotometer is widely used in plastics & electronics, paints & inks, textiles & garments, printing, ceramics and other industries. It supports full-process color quality control from raw material inspection, production monitoring to finished product testing, playing a key role in improving product quality and ensuring color consistency.



Spectrophotometer

Product Model

PS110 Spectrophotometer

Illumination/Viewing

D/8 (Diffuse/8°), SCI (Specular Component Included)Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E1164, DIN 5033 Teil7

Features

Color quality control for plastics, electronics, paints, inks, textiles, printing, ceramics, etc.

Light Source

Full-spectrum combined LED

Integrating Sphere

Φ40mm

Spectral Device

Nano-integrated spectral sensor

Sensor

Dual-row 16-group silicon photodiode array

Wavelength Range

400-700nm

Measuring Apertures

Φ4mm/Φ5mm(flat + conical)

Light Mode

SCI

Color Space

CIE LAB

Color Difference Formula

ΔE*ab

Other chromaticity indices

/

Observer

2°/10°

Illuminant

D65

Display

Spectrum graph/data, color value, color difference graph, pass/fail, color simulation, color tendency

Measuring Time

Approx.1s

Repeatability

Chromaticity value: MAV/SCI, standard deviation ΔE*ab ≤ 0.02 (after warm-up and calibration, average of 30 measurements on white tile at 5second intervals)
Spectral reflectance: MAV/SCI, standard deviation ≤ 0.08% (0.18% within 400-700 nm)

Inter-Instrument Agreement

ΔE*ab ≤ 0.4 (measured on 12 BCRA Series II tiles)

Display Resolution

0.01

Reflectance Range

0-200%

Reflectance Resolution

0.01%

Measuring Mode

Single measurement, average measurement (2-99 times)

Positioning

Stable sheet positioning

Calibration

Contact whiteboard calibration

Dimensions

94(L)×68(W)×188(H) mm (excluding calibration base)

Weight

410 g (excluding calibration base)

Battery

Li-ion 3.7V 3200mAh, up to 8000 measurements in 8 hours

Light Source Life

10 years or ＞1.2 million measurements

Screen

2.8-inch TFT true-color capacitive touch screen

Interface

USB, Bluetooth®5.0

Data Storage

200 standards, 10,000 samples; unlimited via APP/PC

Software Support

Android, iOS, Windows, WeChat Mini Program, HarmonyOS

Language

Simplified Chinese, English, Traditional Chinese

Operating Environment

0-40°C, 0-85%RH (non-condensing), altitude ＜2000 m

Storage Environment

-20-50°C, 0-85%RH (non-condensing)

Standard Accessories

Power adapter, data cable, user manual, QC software (downloadable), white calibration box, protective cover, wrist strap, measuring apertures

Optional Accessories

Mini printer, powder test kit

Note

Specifications are for reference only; subject to actual product


Our Valued Clients

  • LUND UNIVERSITY
  • YONSEI UNIVERSITY
  • university mississippi
  • DTU Technical Denmark University
  • University of Connecticut
  • BASF Plastic Company
  • Lubrizol
  • UCDAVIS UNIVERSITY

FAQs About  Spectrocolorimeter

The LAB color space defines colors in a three-dimensional model: Lightness (L), red–green axis (a), and blue–yellow axis (b). It's a globally recognized standard supported by most modern color measuring devices. CIELAB is a standardized, device-independent system designed to map all visible colors that the human eye can perceive.

The LAB color space uses three values to define any color, each representing a specific dimension:


L (Lightness): Ranges from 0 to 100. It measures the brightness of the color, where 0 is pure black and 100 is pure white.
A (Red-Green Axis): Ranges from approximately -128 to +127. Positive values represent red tones, while negative values represent green tones.
B (Yellow-Blue Axis): Ranges from approximately -128 to +127. Positive values represent yellow tones, while negative values represent blue tones.


L*a*b* is an L*a*b* color space. The L* is a measure of lightness (as 0 = black, 100 = white), a* indicates the green to red axis, and b* indicates the blue to yellow axis. It is also common in color measurement in terms of precision and reliability.


A Spectrophotometer color measuring device objectively determines the color of a surface. It is used wherever accurate color matching, reproducibility or deviation control is needed – for example in quality assurance, product development or incoming goods inspection.

Spectrophotometer color measuring devices primarily perform three key tasks:

Capture color information: They detect light reflected, transmitted, or emitted by a sample using optical sensors.
Quantify color data: They convert the captured optical signals into standardized numerical values, such as RGB, CMYK, or CIELAB coordinates.
Compare color consistency: They compare the measured color data of a sample against a target or standard to assess color accuracy and uniformity.


A colorimeter is used to measure the intensity of color of a solution by measuring its absorbance at selected wavelengths of light. It is widely applied in chemistry, food, pharmaceuticals, and quality control to determine concentration, track color changes, or product uniformity.


A colorimeter is sufficient when measuring similar materials or batches with stable conditions. Suitable for fast, low-cost color checks where high precision is not required. Quick quality control in plastics, paint batch consistency, food color grading (e.g., fruit ripeness), and basic printing checks.

A spectrophotometer is recommended when you need professional, maximum color accuracy or when testing materials with variable surfaces – such as glossy or textured samples. Like textile dye formulation, cosmetic shade matching, medical device color calibration, high-end printing (e.g., packaging for luxury goods), and material spectral research. learn more Understanding Spectrophotometric Parameter Measurement
