The Ultimate Guide to Portable Spectrophotometers

Effective color management is vital to any modern-day manufacturing and design business. It is important to have portable & handheld spectrophotometers which are precise and portable. It allows manufacturers to take color measurements of a surface both in a lab setting and right on the production floor. Printers and those working in the textile, plastic, automotive, coating, and cosmetic industries have to deal with color measurement on a day to day basis and these poles apart industries find these portable handheld spectrophotometers useful for both quality control and for maintaining industry standards and also for product formulation.

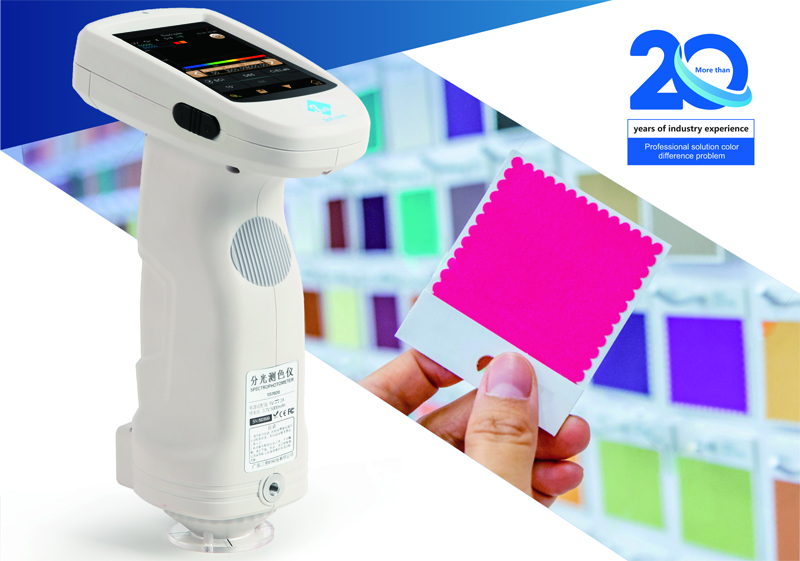

high quality color measurement instrument Spectrophotometer

As opposed to colorimeters, which provide simpler measurements based on filters, spectrophotometers capture the entire visible color spectrum with more detail and greater accuracy, Averaging and measuring a sample’s reply of color can be done with greater detail which is important for product formulation, quality control and product standardization for every industry.

What Is A Portable Color Spectrophotometer?

The device, whether handheld or benchtop, measures color by quantifying the reflection of a surface at varying wavelengths. Light is broken down into segments. Portable and handheld spectrophotometers perform this by measuring segments every 10nm. Each segment’s reflection is noted and a graph of the segments, called a spectral curve, is used to determine color value.

As color measurement is a common task, these devices can be carried and used for quality control and for further measurements in the warehouse or at customer sites.

Portable Spectrophotometer Working Procedure

The analysis of color differences using Portable sphere spectrophotometer is based on the use of LEDs, and optical sensors, programmed using specific algorithms. The main steps of the process are as follows:



● Illumination: The sample is illuminated using stable LEDs or xenon lamps.

● Reflection: The light hits the surface of the sample. Its portions are reflected and enter the optical sensor of the device.

● Detection: The light is separated by a diffraction grating or a filter into its component wavelengths.

● Measurement: The device is calibrated to measure the intensity of the light reflected at different wavelengths.

● Calculation: The derived values are compared with preset thresholds, then the colors are ascertained and represented in various color spaces, such as Lab, XYZ, or RGB.



Through these steps color analysis is done with high precision, and as compact portable spectrophotometers yield analysis comparable to the best centers in the globe.

Classification of Portable Spectrophotometers

The following are the two classifications of Portable and handheld spectrophotometers:



45°/0° Geometry: Employs a light source positioned at 45° and views the sample at 0°. This portable 45/0 spectrophotometer's measurement geometry is gloss-excluded and best suited for color measurements on flat and smooth surfaces such as paper, printed matter, and plastic parts.



d/8° Geometry (Diffuse/8): This is composed of a diffuse light source and a measuring device positioned at eight degrees. This portable D/8 spectrophotometer's geometry is gloss inclusive, but may be gloss exempt depending on the instrument settings. This measurement principle is applied to coated surfaces, as well as surfaces with texture, curves, or/or irregular shapes.



The correct geometry is determined based on the specimen and the scope of work.

Important Features and Functions

Today's portable spectrophotometers are enhanced with new and sophisticated features for accuracy and ease of use.



● Multiple Color Spaces: Supports Lab, XYZ, Yxy, LCh, RGB, and more.

● Delta E Calculations: ΔEab, ΔE 94, ΔE*00 and more for evaluation of color difference.

● Aperture Options: 4mm and 8mm for large and small samples respectively.

● Illuminant and Observer Settings: D65, A, F2 simulations with 2° and 10° observer angles.

● Data Storage and Export: Storage of thousands of records with USB and bluetooth exporting.

● Software Integration: Integration with PC for analysis, comparison and reporting enables more advanced evaluations.



Such features enable performing both advanced analysis and routine checks.

Areas of Application

The following industries make use of portable spectrophotometers:



● Printing and packages: Color consistency checks for inks, labels, and packaged goods across batches and substrates.

● Textiles and apparel: Dye lot matching, color fastness evaluation, and color control during production for fabrics.

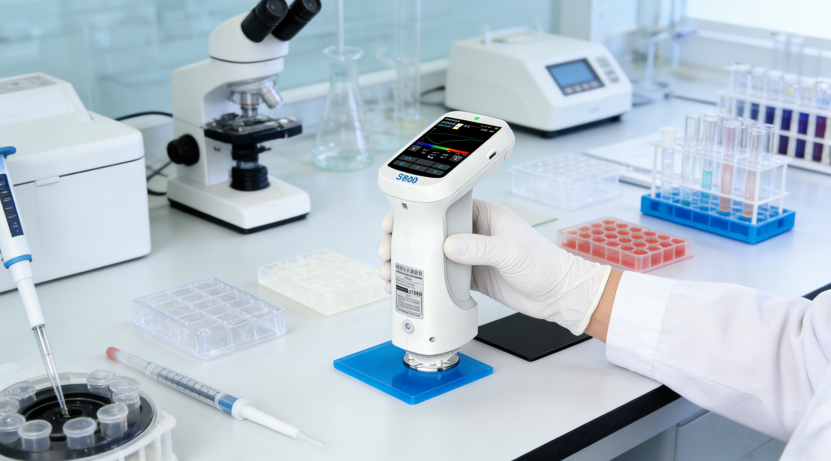

● Plastics and injection molding: Color accuracy evaluation for molded parts and resins.

● Automotive: External and plastic component vehicle body color and paint matching to manufacturer standards.

● Paint Manufacturing: Checking uniformity and verifying consistency of colors across materials and finishes.

● Cosmetics and Healthcare: Checking for accurate color representation of shades in colorants and makeup.

In all situations mentioned above, portable spectrophotometers ensure color consistency, reduce waste, and enhance customer satisfaction.

Benefits of Using a Portable Spectrophotometer

Let’s consider some key benefits of portable spectrophotometers.

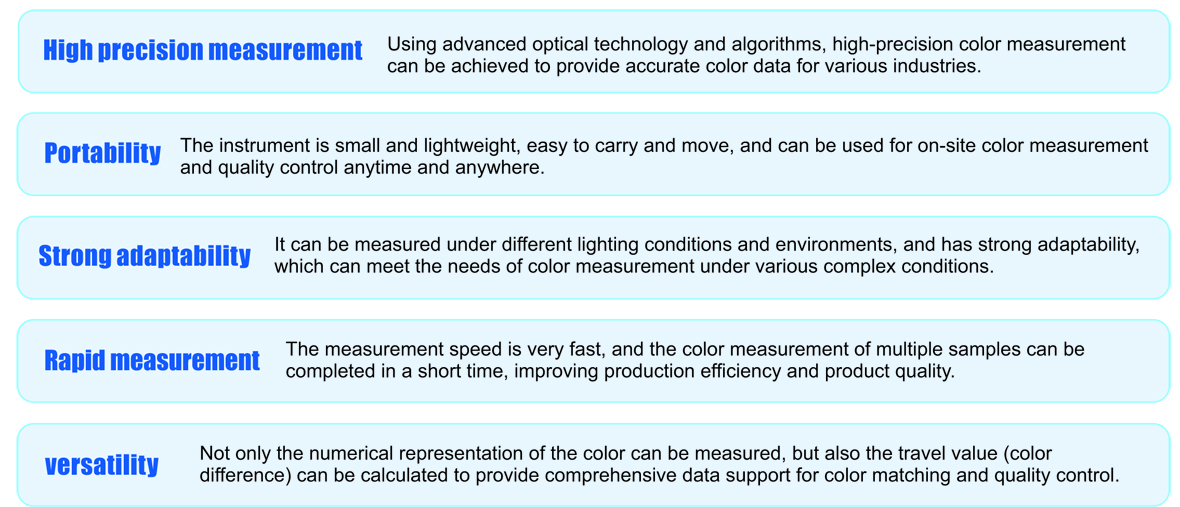

Portable_Spectrophotometer_advantages1



With the above benefits, portable spectrophotometers, handheld Multi-angle spectrophotometers are a wise investment for businesses that focus on precision and quality.

How to Choose the Right Spectrophotometer

Take the following into account when purchasing a portable spectrophotometer:



● Measurement Geometry: For smooth and glossy surfaces use 45°/0° and for textured and curved materials, use d/8°.

● Precision Requirements: For high precision work, opt for devices with a low ΔE value.

● Sample Size: Make sure the aperture aligns with the dimensions of the samples you intend to analyze.

● Software Compatibility: Choose a model with integration capabilities and reporting that aligns with the existing quality.

● Battery Life and Portability: For fieldwork, select lightweight models that offer extended battery life.

● Display and User Interface: An interface that is clear and straightforward minimizes training requirements.



A combination of these aspects with the user’s needs provides the desired results while maximizing value.


Maintenance and Calibration

To maintain the precision and consistency of measurements over a long period:



● Calibrate Regularly: For calibration, the provided white calibration tile should be used prior to each measurement or after a period of inactivity.

● Keep Lenses Clean: Cover slip windows and dust or fingerprints can cause the measurements to be off.

● Limit Exposure to Moisture and Heat: Store in dry, temperature regulated environments. Use the latest features and improvements for stability by updating the firmware and PC software.

● Inspect Batteries: Checking for adequate battery charge and replacing when needed.



Routine maintenance of the system extends the life of a handheld spectrophotometer while ensuring accurate results.

Summary



Like other contemporary technologies, business organizations have adopted portable spectros polished masters in color measuring, quality control, color inspection, and product development in various operations and industries. Spectrophotometers are effective in color measurement because they are portable, easy to use and can be effectively used both in the field and in the lab.

As a portable spectrophotometer enables a user to access accurate and dependable data, users along the color matching and calibration timeline such as printers, product batch manufacturers, and product line designers have all been empowered in the decision making process.
