Spectrocolorimeter Instrument

The Ultimate Tool for Precision Color Measurement, 3NH Spectrocolorimeter instruments adopts a CMOS dual - channel spectral sensor and is equipped with a Φ8mm platform measurement aperture. It has excellent repeatability and inter - instrument agreement.

The Ultimate Tool for Precision Color Measurement

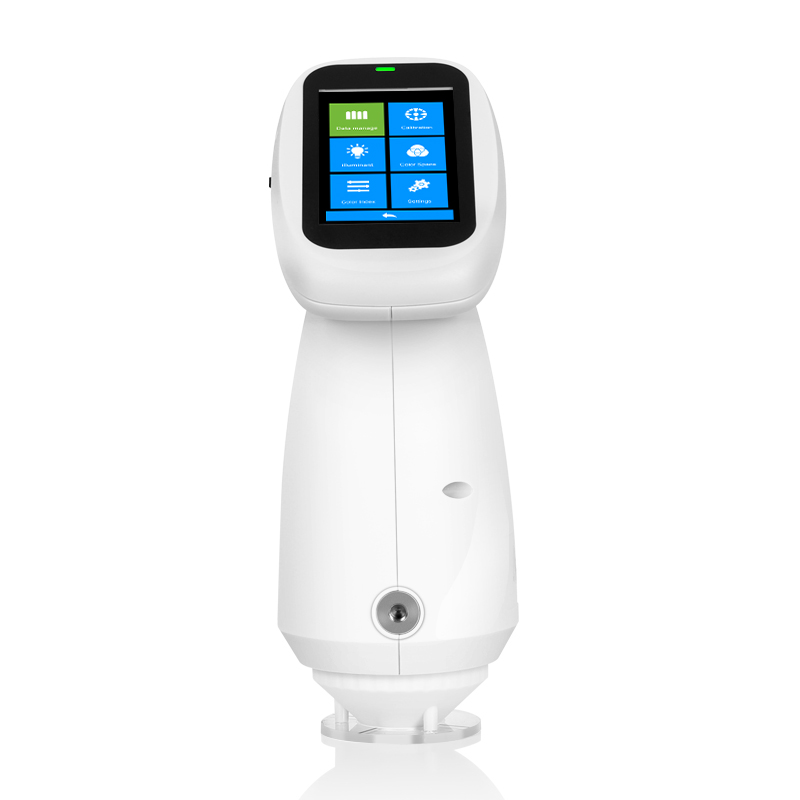

The 3nh Spectrocolorimeter instruments adopts a CMOS dual - channel spectral sensor and is equipped with a Φ8mm platform measurement aperture. It has excellent repeatability and inter - instrument agreement. The measurement data is continuously stable, accurate, and reliable. With its comfortable and round - shaped appearance, it is very appealing. The quality management software facilitates quality monitoring and data management. It is mainly used for color difference quality control in industries such as plastic electronics, paint and ink, textile and garment dyeing and printing, printing, and ceramics.

Spectrocolorimeter is a highly accurate color measurement instrument that can not only measure the value of color, but also provide detailed color information by analyzing spectral data. Unlike traditional colorimeter, spectrocolorimeter can ensure the accuracy and consistency of color measurement by analyzing spectral data of the whole band, so it is widely used in industries that require high-precision color control.

Contact Our Specialists

Threenh Spectrocolorimeter Instrument Main Features

D/8 SCI/SCE synthesis technology
18 light sources, 9 color spaces, 8 colorimetric indicators
Repeatability ΔEab < 0.05, inter - instrument difference ΔEab < 0.3
Dual measurement apertures
Camera viewfinder positioning
Simultaneous testing of SCI/SCE
Equipped with high - end color management software
Can measure granular samples with test components

Spectrocolorimeter Geometry

The d/8 (diffuse/8 degree observation) geometry is a common structure for spectrocolorimeter, which means that the light source is evenly illuminated on the sample surface through a diffuser (such as an integrating sphere), and the observation angle is fixed at 8 degrees. This geometry can simulate a variety of real-world lighting conditions, making the measurement more accurate and able to measure materials with different surface characteristics.


SCI/SCE mode:

SCI (Specular Component Included): Contains specular reflection components, which are used to evaluate the overall appearance and glossiness of the material.

SCE (Specular Component Excluded): Excludes specular components, focuses on surface color, and is not affected by gloss.

Through SCI/SCE technology, the Spectrocolorimeter can flexibly choose whether to include specular reflection light during measurement, which is suitable for more accurate analysis of surface gloss and color.

Spectrocolorimeter vs Spectrophotometer of Threenh Instruments

Features	Spectrocolorimeter Instruments	Spectrophotometer Instruments
Lighting Mode	D/8,SCI/SCE	D/8, SCI/SCE, 45/0
Light Source	Combined full - spectrum LED light source, UV light source	Combined LED light source, combined full - spectrum LED light source, UV light source
Spectral Separation Method	Plane grating spectral separation	Plane grating spectral separation, concave grating spectral separation
Sensor	CMOS dual - channel spectral sensor, silicon photodiode array (double - row 24/32 groups)	Silicon photodiode, large - area silicon photodiode array (double - row 18/20/22/26/32/40 groups), dual - array 256 - pixel CMOS image sensor
Measurement Wavelength Range	400 - 700nm	400 - 700nm, 360 - 700nm, 360 - 780nm
Observation Light Source	29 light sources: D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30), U35, NBF, ID50, ID65	41 light sources: D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, DLF, TL83, TL84, TPL5, U30, B, U35, NBF, ID50, ID65, LED - B1, LED - B2, LED - B3, LED - B4, LED - B5, LED - BH1, LED - RGB1, LED - V1, LED - V2, LED - C2, LED - C3, LED - C5
Observer Angle	2°/10°	2°/10°
Multiple Color Spaces	CIE LAB, XYZ, Yxy, LCh, CIE LUV, s - RGB, βxy, DIN Lab99	CIELAB, XYZ, Yxy, LCh, CIELUV, s - RGB, HunterLab, βxy, DINLab99
Other Colorimetric Indicators	Spectral reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM E313), metamerism index Mt, color - staining fastness, color - change fastness, strength of dyestuff, hiding power, 555 - hue classification, Munsell (C/2)	Spectral reflectance, whiteness (ASTM E313 - 00, ASTM E313 - 73, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), yellowness (ASTM D1925, ASTM E313 - 00, ASTM E313 - 73), metamerism index Mt, color - staining fastness, color - change fastness, strength of dyestuff (dye strength, coloring power), hiding power, 8 - degree glossiness, 555 - hue classification, blackness (My, dM), color density CMYK(A, T, E, M), Tint (ASTM E313 - 00), Munsell
Inter - instrument Difference	Δ*ab 0.2	Δ*ab 0.12
Connection Method	USB, Bluetooth	USB, Bluetooth
Software	SQCX, Color - matching Cloud (IOS, APP, WeChat Mini - program)	SQCX, SQC8, SQCT, Color - matching Cloud (IOS, APP, WeChat Mini - program)

Spectrocolorimeter Features and Benefits:

High accuracy and repeatability : The biggest advantage of the Spectrocolorimeter is that it provides highly accurate color data through full spectrum analysis. It can measure a variety of optical properties including reflectance, transmittance, and surface gloss, and is particularly suitable for color measurement under strict lighting conditions.
Full spectrum measurement : The instrument is able to analyze the visible light spectrum from 400nm to 700nm, ensuring accurate measurement results even in complex lighting environments. Especially when dealing with fluorescent materials or high-gloss surfaces, the Spectrocolorimeter can easily cope with it, avoiding spectrum loss or inaccurate measurements.
Flexible geometry : Spectrocolorimeter usually adopts d/8 (diffuse/8 degree observation) or SCI/SCE mode, which can flexibly choose whether to include specular reflection light. This makes it more flexible and accurate when measuring glossy surfaces.
Advanced Color Management : The Spectrocolorimeter is equipped with SQCX software, which enables comprehensive color analysis and data management. It can record data in multiple color spaces, generate detailed test reports, and allow customization of color management processes to improve the efficiency of quality control.

Spectrocolorimeter Widely Application In

Leather

Plastic

Cloth

Paint

Explore Our Color Management Solutions

Contact 3NH to make sure that all colors meet your creative requirements and introduce stability. Get reliable color consistency in your production, improving product quality and brand competitiveness today. Our color experts are happy to assist you

Get Your Color Measuring Device now!

FAQs About Spectrocolorimeter

The ΔE (Delta E) formula of the CIELAB color space is usually used to measure color difference. The difference is measured in a colorimeter or spectrophotometer to gauge the level of perceptibility of the difference between two samples in terms of L*a*b*.

The LAB color space defines colors in a three-dimensional model: Lightness (L), red–green axis (a), and blue–yellow axis (b). It's a globally recognized standard supported by most modern color measuring devices. CIELAB is a standardized, device-independent system designed to map all visible colors that the human eye can perceive.

The LAB color space uses three values to define any color, each representing a specific dimension:

L (Lightness): Ranges from 0 to 100. It measures the brightness of the color, where 0 is pure black and 100 is pure white.
A (Red-Green Axis): Ranges from approximately -128 to +127. Positive values represent red tones, while negative values represent green tones.
B (Yellow-Blue Axis): Ranges from approximately -128 to +127. Positive values represent yellow tones, while negative values represent blue tones.

In industrial production and quality control, color consistency is one of the core elements determining product quality. Whether it is the metallic paint for automobile coating, the dyeing effect of textile fabrics, or the ink matching in packaging and printing, subtle color deviations may lead to cost waste or damage to brand image.

The LAB color space defines colors with a three-dimensional model:

Lightness (L): It indicates the lightness or darkness of a color, ranging from 0 (pure black) to 100 (pure white).
Hue and Saturation (a and b):

The a-axis represents the red-green tendency, with positive values leaning towards red and negative values leaning towards green;
The b-axis represents the yellow-blue tendency, with positive values leaning towards yellow and negative values leaning towards blue.

It is a globally recognized standard and supported by most modern color measurement equipment. Color is quantitatively analyzed by measuring Lab values with instruments.

Colorimeters have fixed wavelength filters and LEDs; it is less precise and simpler. Monochromators are applied to spectrophotometers, which scan a spectrum of wavelengths. Giving more detailed spectral information. Spectrophotometers are more sensitive and flexible in complicated analyses.

A colorimeter is used to measure absorbance at selected wavelengths with the help of filters, which is suitable for rapid comparison of colors. A more advanced spectrophotometer has a monochromator. It can measure a larger range of the spectrum of light and is more accurate. You can also get detailed color data at visible and non-visible wavelengths.
