Core Analysis of Spectrophotometers: Technical Principles, Performance Advantages, and Breakthroughs

Optical measurement tools are extremely important for industrial laboratories and research facilities that deal with material analysis. A spectrophotometer is a precision optical instrument used to measure, calculate, and express colors in an accurate and objective manner. Manufacturers typically use them to monitor color accuracy throughout the production process, enabling precise sharing and replication of colors. In essence, spectrophotometers transform the sensory experience of color into interpretable data. They can measure the color of nearly any substance, including liquids, plastics, paper, metals, fabrics, and various other materials. Additionally, they quantify the color of surfaces of different substances and provide the spectral emission curves of the measured objects.

While widely used, spectrophotometers are often confused with other optical measurement tools like spectroradiometer, spectrometer, and Colorimeter. This article will clarify what is the spectrophotometer, how it works, its key components, and its applications across different fields.

What Is A Spectrophotometer?

A Spectrophotometer is an optical measurement device, this instruments uses spectroscopic technology to disperse light into monochromatic light of different wavelengths. A photoelectric sensor array then measures the light intensity at each wavelength, obtaining the spectral data of the object’s color. This data can be further converted into colorimetric parameters such as color coordinates and color difference, providing a scientific basis for color quality control and color matching. Optical measurement tools can measure the specific wavelengths of light transfer through a material to measure various parameters. In the case of the spectrophotometer, the main measured parameters are colors.

A spectrophotometer will measure the light emitted at specific points in time, and is used to gauge the information about the object by how light interacts with the materials. A spectrophotometer can measure the entire light spectrum, not just the visible spectrum, like a colorimeter, for example.

Parts Of A Color Spectrophotometer

A color spectrophotometer is a precision instrument designed to measure and analyze the spectral characteristics of light reflected from or transmitted through a material. Its structure typically includes several key components that work together to achieve accurate color quantification. The spectrophotometer is a sophisticated gadget that has multiple precisely crafted components. Any fault in any of these components can severely throw off the device’s precision.

A basic spectrophotometer typically comprises a light source, digital display, monochromator, wavelength selector, collimator, photoelectric detector, and sample cuvette. These components work in sequence: the light source emits radiation, the monochromator and wavelength selector isolate specific wavelengths, the collimator straightens the beam, which passes through the sample in the cuvette. The photoelectric detector measures transmitted light, and the digital display shows absorbance or transmittance values for quantitative analysis.

The first component is a light source. The spectrophotometer needs its own light source to analyse material, so it needs a light source that spans a broad spectrum. Most industries use the LED light source, a full band balanced LED light source ensures sufficient spectral distribution in visible light range, avoids the spectral loss of white LED in specific band, ensures the accuracy of instrument measurement speed and measurement results. This type of light source offers several key advantages over traditional light sources (such as halogen or fluorescent lamps) in color-measurement applications

The light source must emit a stable and consistent spectrum to ensure reliable measurements. The light is then separated into specific wavelengths with the aid of a monochromator, or a prism with diffraction.

Optical System
Illumination Geometry: Defines how light interacts with the sample.

Components of Spectrophotometer

You'll also need a sample holder, made of very clear glass. A detector and an output display, and a processor are all necessary.

The detector is mainly used to capture the light reflected or transmitted by the sample and convert it into an electrical signal.

Microprocessor: Controls the instrument’s operations (e.g., light source activation, detector calibration) and performs calculations (e.g., converting spectral data into color coordinates like CIE Lab*).

Display: Shows real-time measurements (e.g., spectral curves, ΔE values, color coordinates) on an LCD or touchscreen.

You can calibrate the spectrophotometer for industry-specific applications, much like a spectrometer. You can calibrate individual parts of a spectrophotometer to get the desired analytical capacity.

How Do Spectrophotometers Work

Spectrophotometers operate on the principle of combined LED precision spectroscopy, which separates light into specific wavelength intervals and uses multiple sensor arrays for photosensitive analysis.

The name "spectrophotometer" stems from its design principle: it is a high-precision instrument that measures the Lab values of product colors by leveraging the spectral characteristics of light reflection and using spectrophotometric analysis. Its R&D and production fully comply with the standards set by the International Commission on Illumination (CIE). Additionally, spectrophotometers can display spectral data, providing more detailed information about the color of the measured object.

The operational principle of a spectrophotometer is deceptively simple for a device as complicated as it is. The device emits light, the light passes through the test subject, and the device measures how the remaining light is needed to give the desired reading.

The spectrophotometer emits UV, VIS, or IR light and sends out a wavelength according to the calibration. The light hits the test object and extrapolates the analysis data based on the remaining wavelength that the object did not absorb. The results can vary depending on the parameters you define.

Types Of Spectrophotometer

There are several types of spectrophotometers, each optimized for different tasks. Some are great at working with metals, some are necessary for dealing with material on an atomic scale. So, pretty much every industry has its own preferred version of the spectrophotometer.

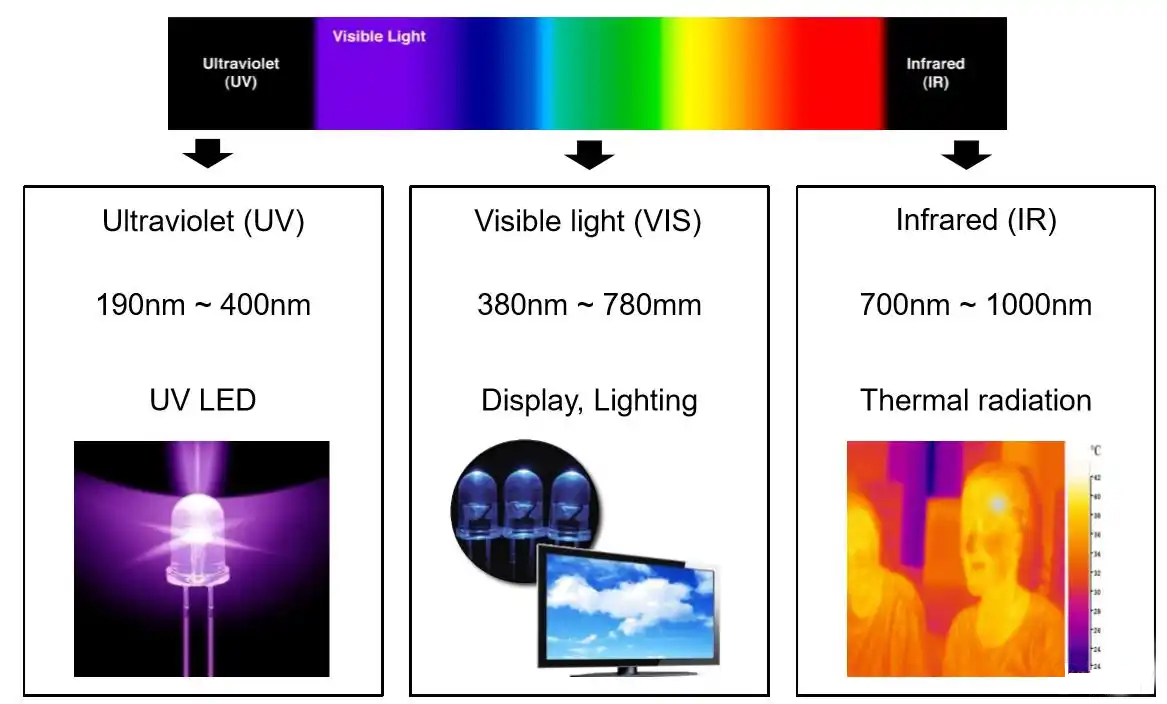

The most widely used spectrophotometer is the UV-VIS spectrophotometer. These devices are highly optimized for analyzing chemical components of a material, so they see a lot of action in the pharmaceutical industry and chemical research labs.

The infrared spectrophotometer uses infrared light, which has much higher penetration in organic matter. This one sees much use in organic chemistry and molecular science. AAS or Atomic Absorption Spectrophotometer is great for measuring material concentration, and so it's used for studying dense materials like metals.

Visible Spectrophotometer

A single-beam spectrophotometer used to measure the absorbance of a substance under test in the visible light range (400–760 nm), and to perform qualitative and quantitative analysis. This instrument is widely applied in fields such as medicine and health, clinical testing, environmental monitoring, and food production.

Fluorescence Spectrophotometer

An instrument used to scan the fluorescence spectra emitted by liquid-phase fluorescent markers. It is applicable in scientific research, chemical engineering, medicine, biochemistry, environmental protection, clinical testing, food inspection, teaching experiments, and other fields.

Spectrophotometer Related Measurement Indicators

There are two crucial measurement units that you can associate with a spectrophotometer. They are: Absorbance and Transmittance.

Absorbance: Absorbance measures how much light a sample can absorb at a specific wavelength. A high number in the absorbance value means it is absorbing more luminance, and a small number indicates less light being absorbed. Absorbance is highly necessary for quantitative analysis,

Transmittance: Transmittance refers to the light that the sample does not absorb. A transmittance of 100% means nothing is absorbed, and 0% means everything is absorbed. It shares an inverse connection to absorbance. So, when one increases, the other decreases, and vice versa. There’s also wavelength and optical density.

Spectral reflection/transmission curves of materials: Used to analyze the absorption, reflection, or transmission characteristics of substances for light of different wavelengths, commonly seen in color measurement.

Explanation of the meanings of L*, u*, v*, △L, △u, and △v values in a spectrophotometer

Spectrophotometers have various color spaces, enabling digital quantification analysis of colors across different color spaces, including the CIELuv color space. This article explains the meanings of L*, u*, v*, ΔL, Δu, and Δv values in spectrophotometers to help readers better perform color analysis.

The meanings of L*, u*, and v* values in a spectrophotometer:

CIELuv color space is short for CIE1976 L*u*v* uniform color space. In CIELuv space, L* represents lightness, and u* and v* represent chromaticity indices. These three are perpendicular to each other to form a color space to describe the corresponding lightness and chromaticity: the vertical axis is lightness L*, and the horizontal plane contains the chromaticity indices u* and v*. Similar to CIELab color space, L*, u*, and v* are obtained through non-linear transformations of X, Y, and Z, and the color difference between two points is represented by the distance between them. The meanings of L*, u*, and v* are as follows:

1. L* value

L represents the brightness of a color, with the same meaning as L in CIELab and CIELCh, reflecting the lightness or darkness of the color, and its value ranges from 0 (absolute black) to 100 (absolute white).

2. u* value

u represents the chromaticity in the green-red direction, a parameter describing the position of a color along the red-green-blue dimension. The sign and magnitude of the u value reflect the bias and degree of the color in that dimension. A positive u value indicates that the color is biased towards red or yellow in that dimension; a negative u value indicates that the color is biased towards green or blue.

3. v* value

v* represents the chromaticity in the blue-yellow direction. Changes in the v value reflect the bias and degree of color in another dimension, working together with u to fully express the chromaticity characteristics of a color. When the v value is positive, the color leans towards yellow or blue; when the v* value is negative, the color leans towards red or green.

The meanings of ΔL, Δu, and Δv values in a spectrophotometer:

1. △L* (difference in brightness)

ΔL* is the difference in lightness (L*) between the sample and the standard sample in the CIELuv color space, reflecting the difference in brightness between the two. A positive ΔL indicates that the sample is brighter and lighter than the standard; a negative ΔL indicates that the sample is darker and deeper than the standard. ΔL* close to 0 indicates that the brightness of the two samples is basically the same, and it is specifically used to evaluate the deviation of an object's color in the black-to-white direction.

2. △u* (difference in red and green hues)

△u* represents the difference between the sample and the standard on the u* chromaticity axis of the CIELuv color space, corresponding to the color shift in the red-green direction. The u-axis mainly describes the red-green tendency of the color; a positive △u indicates that the sample is more red than the standard; a negative △u indicates that the sample is more green than the standard. In color evaluation, △u is often used to identify obvious hue deviations such as reddish or greenish tints.

3. △v* (Yellow-blue hue difference)

△v* is the difference between the sample and the standard on the v* chromaticity axis of the CIELuv color space, corresponding to the color change in the yellow-blue direction. The v-axis mainly reflects the yellow-blue attribute; a positive △v indicates that the sample is more yellow than the standard; a negative △v indicates that the sample is more blue than the standard. In color evaluation, △v is an important indicator for judging subtle color differences such as yellowing and bluish tint.

Spectrophotometer vs. Colorimeter vs. Spectroradiometer

A spectroradiometer, colorimeter, and Spectrophotometer are three of the most commonly used optical measurement tools across various industries. Each of these devices has a different use case, so here's a quick comparison to clear up some confusion about their abilities:

1. Measurement Capabilities

Spectrometer Measures absorbance, transmittance, and reflectance across a broad spectrum (UV, VIS, IR). It provides detailed wavelength-by-wavelength data, ideal for chemical analysis like DNA quantification, drug purity.

Colorimeters ocuses only on visible light to mimic human color perception. Visible light usually refers to RGB hues. Professionals use it for color matching in paints, textiles, and display calibration, but it lacks other spectral analysis capabilities.

2. Accuracy and Resolution

Spectrophotometers offer the highest chemical precision, detecting subtle absorbance shifts for quantitative analysis, making them the ideal choice for related industries.

Colorimeters are less accurate but faster, suited for real-time color checks in manufacturing. It's great for calibrating color-sensitive components like PC monitors, phone screens, and TV screens.

Spectroradiometers excel in radiometric accuracy, measuring light energy for photometric applications. most researchers use it to measure the depth of spectral wavelength and other seismic occurrences. Clean energy projects and solar research rely heavily on this data.

Spectrometer vs. Spectrophotometer

Here’s a detailed comparison between a spectrometerand a spectrophotometer, clarifying their definitions, functions, and key differences:

Spectrometer

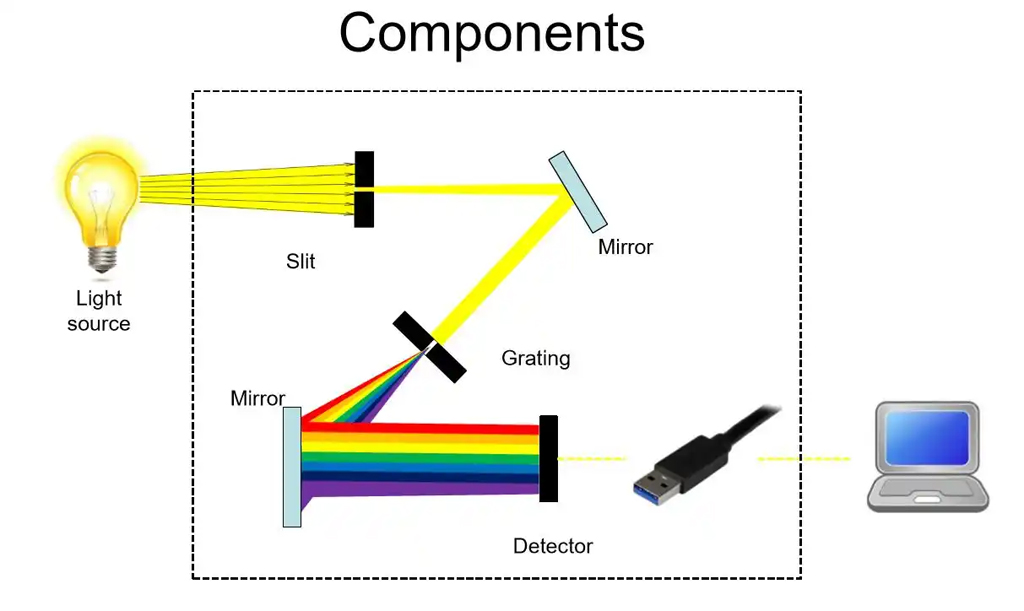

• A spectrometer is an instrument that measures the physical properties of light(e.g., wavelength, frequency, intensity) across a specific spectrum (e.g., ultraviolet, visible, infrared).

• It analyzes light by dispersing it into its component wavelengths(using prisms, gratings, or filters) and records the resulting spectrum.

• Key purpose: To study the relationship between light and matter, often focusing on wavelength identificationand spectral patterns.

Spectrophotometer

• A spectrophotometer is a complete analytical systemthat uses a spectrometer as a core component.

• It measures the intensity of light absorbed or transmitted by a sampleat specific wavelengths.

• Components include:

• A light source(e.g., tungsten, deuterium lamp).

• A monochromator(to select specific wavelengths, often using a spectrometer).

• A sample compartment(where the sample interacts with light).

• A detector(to measure light intensity after interaction with the sample).

• Key purpose: To quantify how much light a sample absorbs or emitsat specific wavelengths, often for chemical/biological analysis (e.g., concentration measurements).

Key Differences of Spectrometer and Spectrophotometer

Relationship: Why All Spectrophotometers Contain a Spectrometer

• The spectrometer is the core optical componentof a spectrophotometer.

• In a spectrophotometer, the spectrometer’s role is to:

1. Disperse light into its component wavelengths (as in a standalone spectrometer).

2. Select a specific wavelength (using a monochromator) to shine through the sample.

3. Measure the intensity of light before and after it interacts with the sample (to calculate absorbance).

• Without a spectrometer, a spectrophotometer could not isolate specific wavelengths or analyze the spectral properties of light required for quantitative measurements.

Simplified Analogy

• Think of a spectrometeras a “light analyzer” that studies the “color palette” of light itself.

• A spectrophotometeris a “sample analyzer” that uses this light analyzer to see how a sample “absorbs or reflects” specific colors from the palette.

Summary

• Spectrometer: Focuses on characterizing light(what wavelengths exist and their intensities).

• Spectrophotometer: Focuses on characterizing samples(how they interact with specific wavelengths of light), with a spectrometer as a critical component.

• Use a spectrometer for qualitative spectral analysis, and a spectrophotometer for quantitative sample analysis.

Cost and Where to Buy

Spectrophotometers are quite expensive, highly specialized instruments. The UV-Vis spectrophotometers are usually on the cheaper side of the pricing spectrum, while the IR or fluorescence models are on the expensive side.

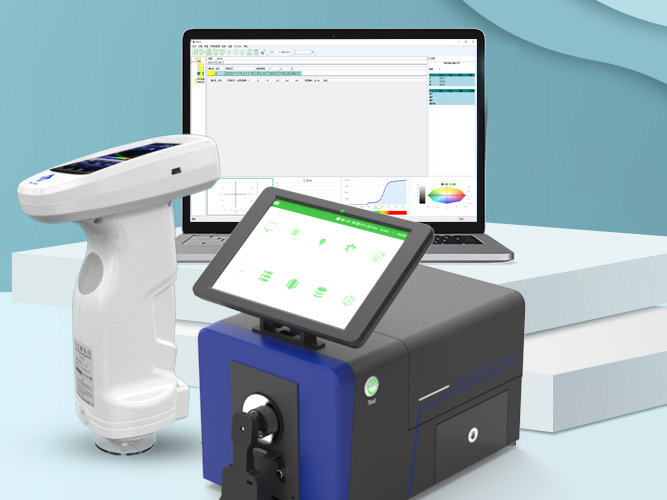

You can find an extensive collection of high-quality optical measurement devices at 3nH. We strive to offer the best quality devices at affordable prices.

Spectrophotometers have achieved technological innovation in color measurement through precision spectroscopy and spectral analysis. Chinese manufacturers represented by 3nh have made breakthroughs in precision, stability, and cost through technological tackling, marking China's rise to the international forefront in the field of high-end optical measurement and providing a cost-effective "Chinese solution" for the global color management market.

Expanded Application Scenarios

Research Field: Material spectral property research, color science experiments.

Industrial Production: Automotive coating color difference control, plastic color matching, print color accuracy inspection.

Consumer Goods Industry: Cosmetic shade development, textile color difference detection, appearance color management for electronic products.

Conclusion

Hopefully, you now have a better understanding of what is a spectrophotometer. It's an optical measurement tool that offers precise analysis of material composition. The pharmaceutical and chemical science research industries mainly use this device. For any further inquiries about optical measurement tools, you can visit us at 3nH.

Advantages of 3nh Spectrophotometers

From cardboard packaging and laundry soap to carpets and small plastic components, 3nh spectrophotometers help ensure that production colors match the original specified colors, reducing waste while saving you time and money.

As a global leader in color science and optical technology, we offer a full range of color solutions to consistently and accurately control color from inspiration to final delivery. Whether you need to specify, communicate, formulate, or measure color, we help you get it right the first time, every time.

Common Problems with Spectrophotometers

Why Use a Spectrophotometer?

A spectrophotometer is a device used to measure and control color data, widely applied across various industries to ensure color consistency throughout the entire process from design and styling to production. It can measure a diverse range of materials, from liquids and plastics to paper and textiles.

By delivering precise color measurements, spectrophotometers identify color deviations and defects, and quantify the difference between the produced color (sample) and technical specifications. Data collected from these instrumental measurements can be used to identify trends for continuous improvement and ensure compliance with standards such as ISO and ASTM.
