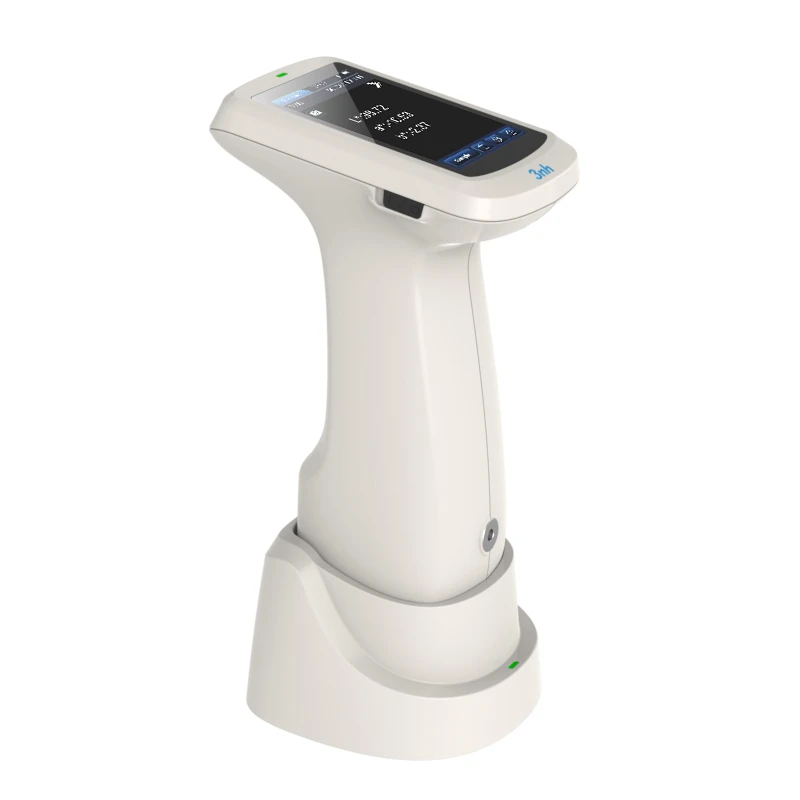

PS410 Spectrophotometer

PS410 Spectrophotometer Instructions Operating Manual PS410 Spectrophotometer PDF
This PS410 Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

The 3nh PS410 is a mid-range spectrophotometer balancing flexibility and practicality. It features a 6-aperture multi-configuration design suitable for samples of various sizes, and is equipped with SCI/SCE dual-mode measurement to reduce interference from surface textures.It is widely used for batch quality control in plastics & electronics, printing, ceramics and other industries.

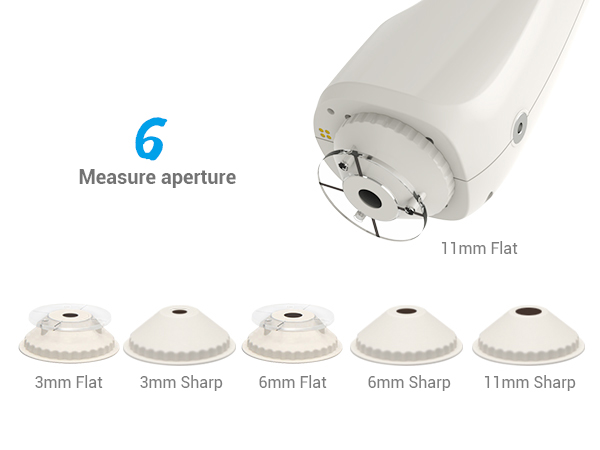

1. Full-Scene Adaptability with 6 Apertures

Equipped with 6 measurement apertures: 3mm, 6mm, 11mm (flat + pointed tip for each), ideal for samples from micro-sized parts to regular workpieces of various shapes.



2. High-Precision Measurement

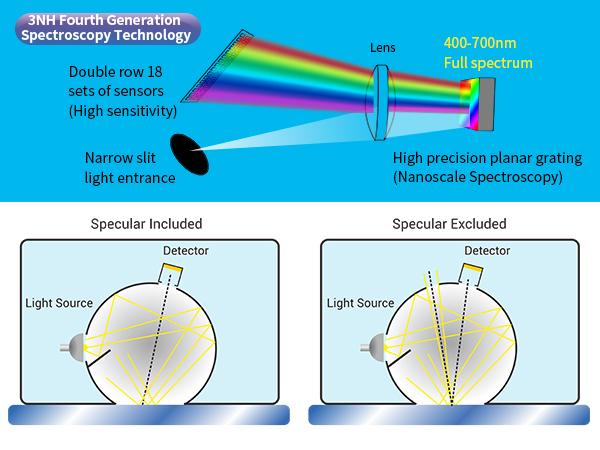

D/8 SCI/SCE Technology: Supports separate and simultaneous SCI/SCE measurement in approx. 1 second, reducing texture interference and capturing true color.

Full-Spectrum LED Light Source: Uniform spectrum from 400-700 nm, eliminating spectral missing errors.

High-Performance Hardware: Dual-array silicon photodiode sensor (dual-row 18 groups) + Φ40 mm large integrating sphere + nano-integrated optical elements for accurate color acquisition.

Dual Optical Path + Proprietary Algorithm: Strong anti-interference performance.Repeatability: ΔEab ≤ 0.025Inter-instrument agreement: ΔEab ≤ 0.4Ensures stable data across multiple instruments for precise color matching and transmission.

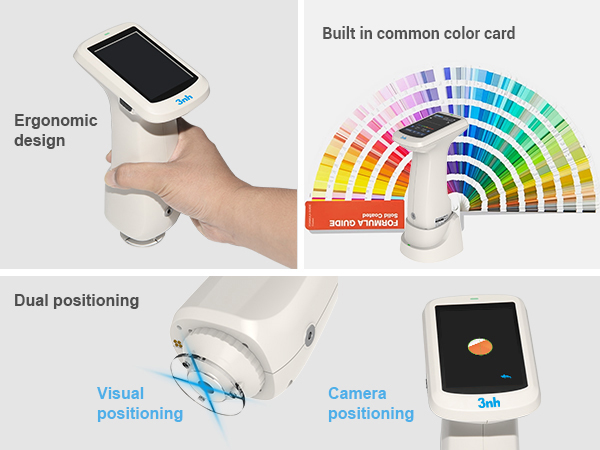

3. Efficient & User-Friendly Operation

Positioning Stabilizer: Accurately locks the measurement area and avoids deviation.

Built-in HD Camera: Real-time viewing for precise targeting, greatly improving batch inspection efficiency.

Contact Auto-Calibration: Intelligent calibration base maintains stable performance with minimal manual operation.

Smart Color Card Matching: Quickly matches color codes to save time in production color verification.

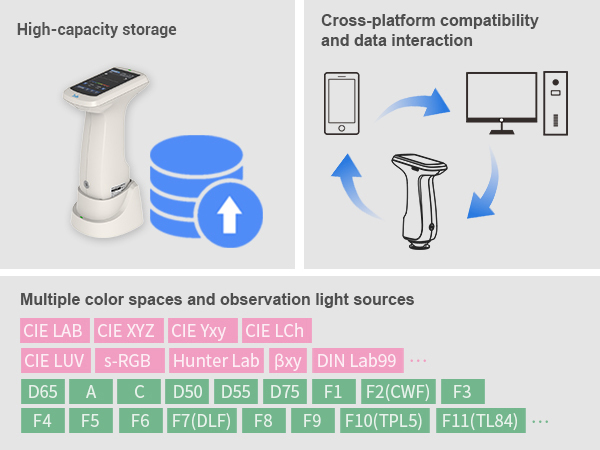

4. Enterprise-Grade Data Management

Comprehensive Color Indices: Supports 30+ light sources and 40+ measurement indexes, including spectral data, color values, color difference, color simulation, etc.

Large Storage: 500 standard samples and 10,000 test samples.

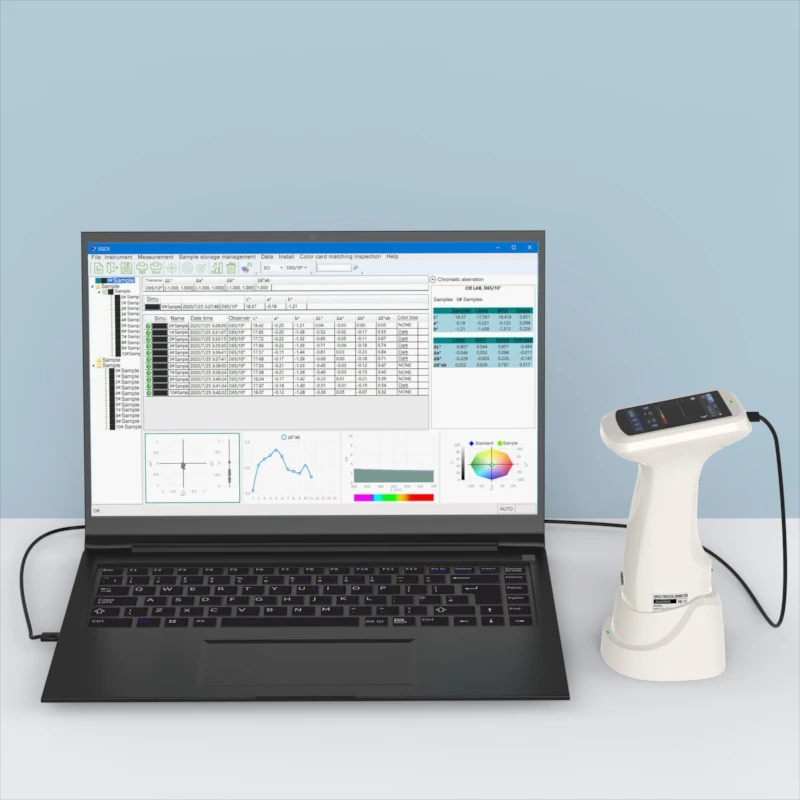

Multi-Device Connectivity: USB, Bluetooth; compatible with Android, iOS, Windows, WeChat Mini Program, HarmonyOS for data sharing, remote management and quality traceability.




Model PS410 Spectrophotometer
Illumination D/8 (Diffuse / 8°), SCI/SCE, complying with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Features Dual silicon photodiode array; built-in electronic color card. For color quality control in plastics, electronics, paint, ink, textile, printing, ceramics, etc.
Light Source Combined full-spectrum LED
Integrating Sphere Φ40mm
Spectroscopy Nano-integrated spectral device
Sensor Silicon photodiode array (dual-row 18 groups)
Wavelength Range 400-700nm
Measurement Apertures 6 apertures: 3mm flat + 3mm tip + 6mm flat + 6mm tip + 11mm flat + 11mm tip
Measurement Mode SCI & SCE simultaneous measurement
Color Spaces CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formulas ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,DINΔE99,ΔE(Hunter)
Other Indices Spectral Reflectance, WI, YI, Metamerism Index MI, Color Fastness, Strength, Opacity, 555 Tone, Munsell, Blackness, Color Density CMYK, Tint
Observer 2°/10°
Light Sources D65,A,B,C,D50,D55, D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84), F12(TL83/U30),U35,NBF,ID50,ID65 ,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5, LED-BH1,LED-RGB1,LED-V1,LED-V2
Display Spectrum, color data, ΔE, pass/fail, color simulation, color tendency
Measurement Time Approx. 1 s
Repeatability ΔE*ab ≤ 0.025; Reflectance SD ≤ 0.1% (400-700 nm ≤ 0.2%)
Inter-Instrument Agreement MAV/SCI,ΔE*ab ≤ 0.4 (BCRA Series II 12 tiles)
Display Precision 0.01
Reflectance Range 0-200%
Reflectance Resolution 0.01%
Measuring Mode Single, Average (2-99 times)
Positioning Stabilizer + Camera positioning
Calibration Contact white calibration
Dimensions 120*75*207mm
Weight 367 g (excl. calibration base)
Battery 3.7 V 3200 mAh Li-ion, up to 8000 measurements in 8 hours
Light Source Life >1.2 million measurements in 10 years
Screen 3.5-inch TFT capacitive touch
Interface USB,Bluetooth
Storage 500 standards, 10,000 samples; APP/PC cloud storage
Software Android, iOS, Windows, WeChat Mini Program, HarmonyOS
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0-40°C, 0-85%RH (non-condensing), altitude <2000 m
Storage Environment -20-50°C, 0-85%RH (non-condensing)
Accuracy Class 1 metrology certified
Standard Accessories Power adapter, USB cable, manual, QC software, white calibration box, protective cover, wrist strap, apertures
Optional Accessories Mini printer, powder test kit
Note Specifications subject to change without prior notice



Our Valued Clients

  • Vilnius University
  • flinders
  • toronto
  • APPLIED MATERIALS
  • QUEEN UNIVERSITY
  • Lubrizol
  • university mississippi
  • infieon

FAQs About  Spectrocolorimeter

In industrial production and quality control, color consistency is one of the core elements determining product quality. Whether it is the metallic paint for automobile coating, the dyeing effect of textile fabrics, or the ink matching in packaging and printing, subtle color deviations may lead to cost waste or damage to brand image.

The LAB color space defines colors with a three-dimensional model:

  1. Lightness (L): It indicates the lightness or darkness of a color, ranging from 0 (pure black) to 100 (pure white).

  2. Hue and Saturation (a and b):

    • The a-axis represents the red-green tendency, with positive values leaning towards red and negative values leaning towards green;

    • The b-axis represents the yellow-blue tendency, with positive values leaning towards yellow and negative values leaning towards blue.

It is a globally recognized standard and supported by most modern color measurement equipment. Color is quantitatively analyzed by measuring Lab values with instruments.


A spectrophotometer measures the full visible color spectrum (typically 400–700 nm). It offers significantly higher precision and enables detailed evaluations – including spectral curves, ΔE values, and color distance measurements. It is the preferred choice for demanding applications in labs or color development environments. learn more..

The core difference between a colorimeter and a spectrophotometer lies in their light measurement methods. A colorimeter measures color values based on the tristimulus method (e.g. LAB or RGB) and compares the sample to a reference. It's ideal for quick, repeatable measurements under consistent conditions – such as in production or incoming goods control.

The concentration of colored compounds in a solution is determined by the use of a colorimeter test. It can be used to measure the quality of the product. The colorimeter test determines the presence of contamination or observes chemical reactions by measuring the extent to which a solution absorbs light at a given wavelength.


The principle of colorimetry is the law of Beer-Lambert, which says that the intensity of light absorbed by a colored solution is proportional to the concentration of the absorbing species and the path length. It measures the extent of light that is absorbed at certain wavelengths.


The accuracy of colors is determined by comparing the values of the colors (L*a*b*) of a sample with a standard reference sample using tools such as spectrophotometers. The variation is measured as ΔE. The smaller the value of ΔE, the more accurate, the nearer to the target color.
