PS430 Spectrophotometer

PS430 Spectrophotometer Instructions Operating Manual PS430 Spectrophotometer PDF
This PS430 Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Basic color quality control standards for multiple industries


3nh Spectrophotometer deliver reliable build quality and exceptional precision, providing enterprises with cost-effective and traceable color quality control measurements.

Equipped with multiple measuring apertures, 3nh Spectrophotometers are capable of measuring reflected color and color difference across a wide range of industrial sectors. They are widely used for color quality control in compounding, food, raw materials and finished products.

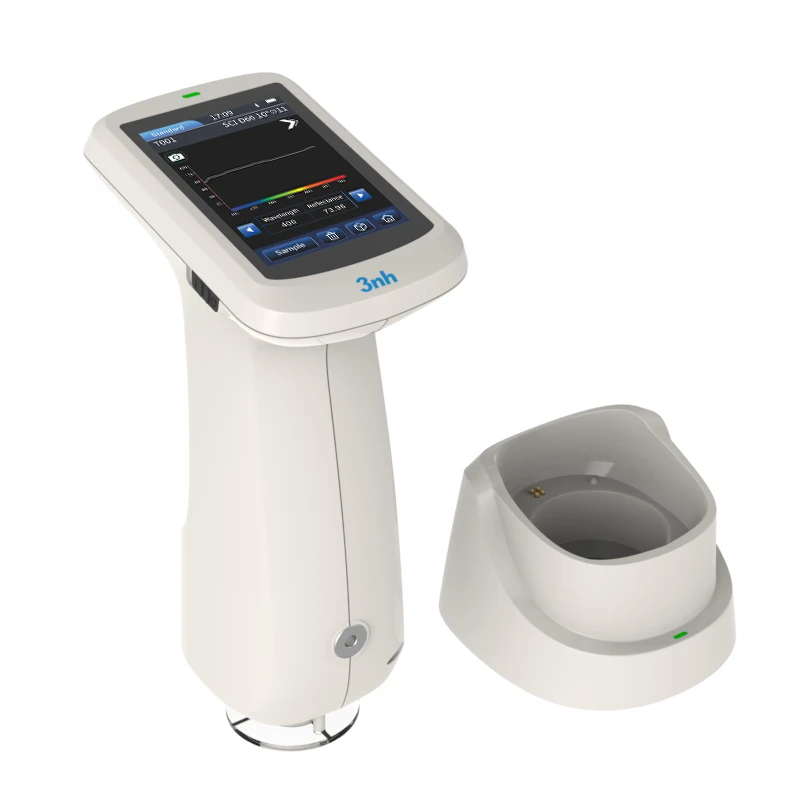

The 3nh PS430 Spetrophotometer is a high-precision model in its series, designed specifically for high-end color matching and accurate color communication. It features 12 interchangeable apertures for full-dimensional adaptability, repeatability ΔE*ab ≤ 0.02, and inter-instrument difference ≤ 0.2. Equipped with a UV light source and dual-mode measurement technology, it covers both fluorescent and conventional samples, making it ideal for industries with strict color measurement requirements.

1. Core Performance: High Precision & Stability

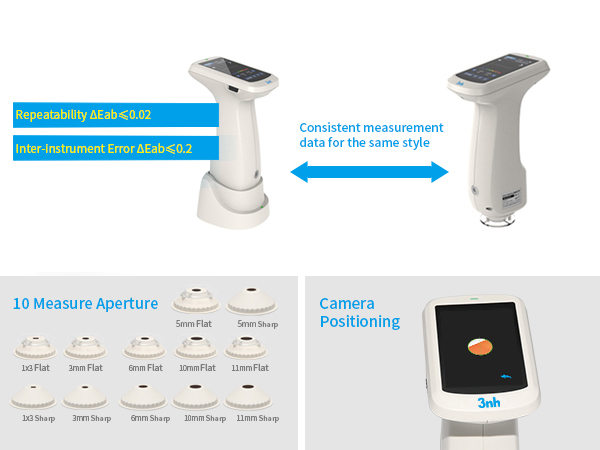

Excellent data stability: Repeatability ΔE*ab ≤ 0.02, inter-instrument difference ≤ 0.2, ensuring consistent results across multiple instruments for precise color matching and communication.

12 interchangeable apertures: Includes 3mm/ 5mm/ 6mm/ 10mm/ 11mm/ 1×3mm (flat and nozzles), covering samples of various sizes and shapes with no measurement blind spots.

International standard measurement: D/8 SCI+SCE technology objectively reflects true color, reduces interference from surface texture, supports separate or simultaneous SCI/SCE measurement, and delivers results in approximately 1 second.

Dual accuracy assurance: Non-contact automatic calibration + HD camera real-time positioning guarantee accurate measurement points and laboratory-level precision.



2. Advanced Hardware Configuration

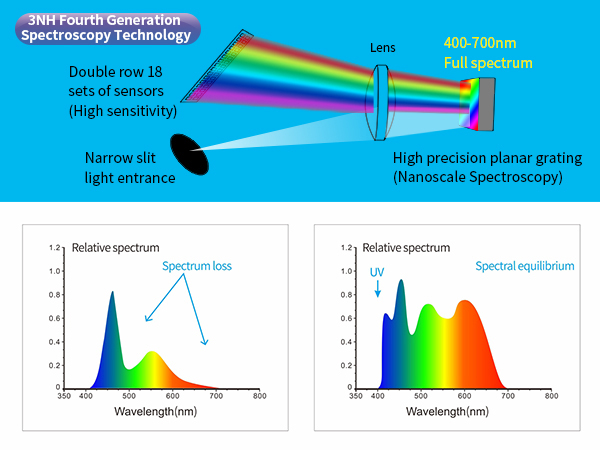

Full-spectrum light source: Full-spectrum LED + UV light source covers visible to ultraviolet bands with uniform spectral distribution, ideal for measuring fluorescent samples.

High-performance signal processing: Dual 18-group silicon photodiode array + 40mm large integrating sphere for efficient and accurate color data processing.

Nano-level spectroscopy: Nano-integrated optical device captures color signals precisely, greatly improving measurement accuracy and stability.

Anti-interference dual optical path: With self-developed algorithm, it offers stronger anti-interference performance than single optical path systems, ensuring stable and reliable readings.



3. User friendly & Efficient Functions

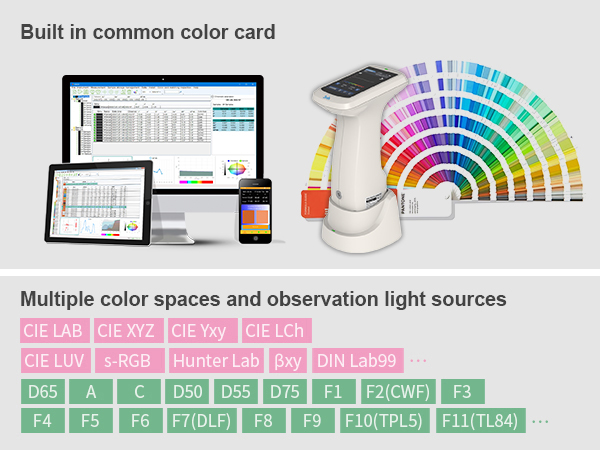

Built-in standard color libraries: Quickly matches color codes without physical color charts, saving time and improving production efficiency.

Comprehensive color indices & light sources: Supports over 30 light sources and 40 measurement indices, including spectrum graphs, color values, color difference charts, pass/fail judgment, and color simulation to meet diverse industry needs.



4.Expandable & Connected

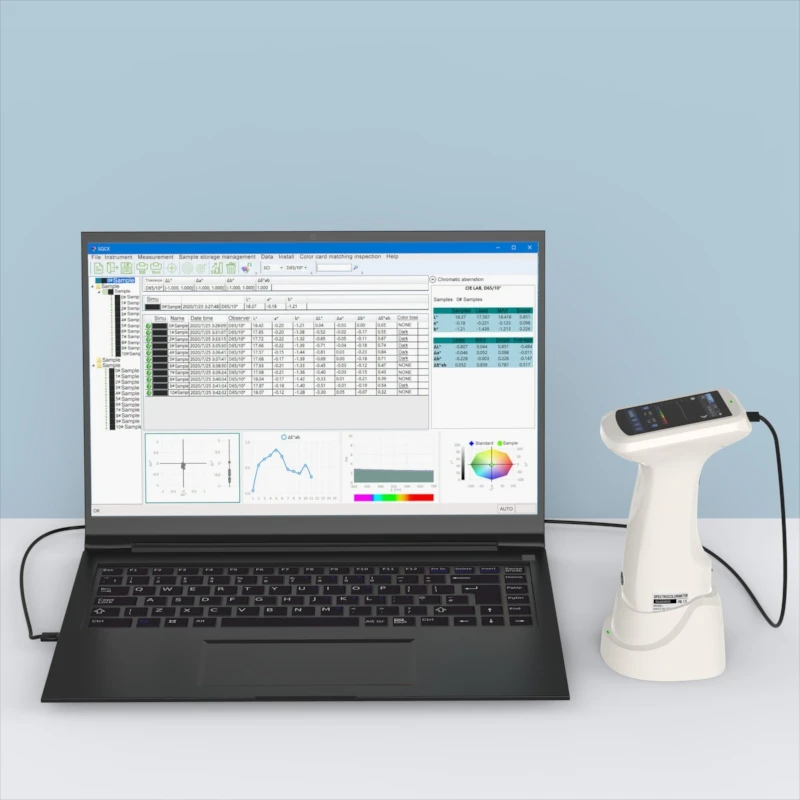

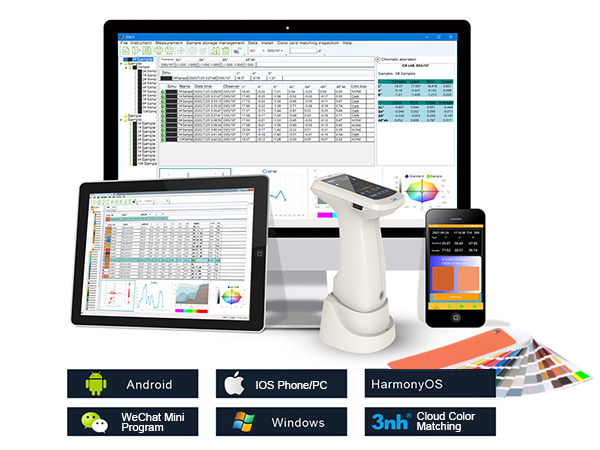

Multi-platform compatibility: ：USB and Bluetooth interfaces; supports Android, iOS, Windows, WeChat Mini Program, and HarmonyOS. Connects to PC and printers for digital color management, color comparison, test report generation, and customized color data management for quality control across industries.



For samples with irregular or uneven surface textures such as granules, coffee, fabrics, wood, stones and bricks, the PS808C Spectrocolorimeter is your ideal solution. Featuring a unique 50 mm large aperture, it is perfectly suited for these types of samples. Without this instrument, operators would have to manually take multiple measurements and calculate averages to obtain representative and repeatable data.



Model PS430 Spectrophotometer
Illumination D/8 (Diffuse / 8°), SCI/SCE, complying with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Features Dual silicon photodiode array; built-in electronic color card. For color quality control in plastics, electronics, paint, ink, textile, printing, ceramics, etc.
Light Source Full-spectrum LED + UV
Integrating Sphere Φ40mm
Spectroscopy Nano-integrated spectral device
Sensor Dual 18-group silicon photodiode array
Wavelength Range 400-700nm
Measurement Apertures 12 apertures: 3mm, 5mm, 6mm, 10mm, 11mm, 1×3mm (flat & nozzle)
Measurement Mode SCI & SCE simultaneous measurement
Color Spaces CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formulas ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,DINΔE99,ΔE(Hunter)
Other Indices Spectral reflectance, WI, YI, Metamerism Index MI, staining fastness, color change fastness, strength, hiding power, Munsell, blackness, CMYK density, tint
Observer 2°/10°
Light Sources D65,A,B,C,D50,D55, D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84), F12(TL83/U30),U35,NBF,ID50,ID65 ,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5, LED-BH1,LED-RGB1,LED-V1,LED-V2
Display Spectrum, color data, ΔE, pass/fail, color simulation, color tendency
Measurement Time Approx. 1 s
Repeatability Chromaticity value: MAV/SCI, standard deviation value ΔE*ab within 0.02 (after preheating and correction, measure the white board 30 times at intervals of 5 seconds and take the average value). Spectral reflectance: MAV/SCI, standard deviation within 0.08% (400~700nm: within 0.18%)
Inter-Instrument Agreement MAV/SCI,ΔE*ab within 0.2 (average values measured by 12 color plates of BCRA Series II)
Display Precision 0.01
Reflectance Range 0-200%
Reflectance Resolution 0.01%
Measuring Mode Single measurement, average measurement (2-99 times)
Positioning Stable plate positioning + camera viewfinder positioning
White Calibration Non-contact automatic white calibration
Dimensions 120*75*207mm
Weight 367 g (excl. calibration base)
Battery 3.7 V 3200 mAh Li-ion, up to 8000 measurements in 8 hours
Light Source Life >1.2 million measurements in 10 years
Screen 3.5-inch TFT capacitive touch
Interface USB,Bluetooth
Storage 500 standards, 15,000 samples; APP/PC cloud storage
Software Android, iOS, Windows, WeChat Mini Program, HarmonyOS
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0-40°C, 0-85%RH (non-condensing), altitude<2000 m
Storage Environment -20-50°C, 0-85%RH (non-condensing)
Accuracy Class 1 metrology certified
Standard Accessories Power adapter, data cable, user manual, quality management software (downloadable on official website), white calibration box, protective cover, wrist strap, measuring apertures
Optional Accessories Mini printer, powder test kit
Note Specifications subject to change without prior notice



Our Valued Clients

  • university mississippi
  • Griffith UNIVERSITY
  • BASF Plastic Company
  • University of Connecticut
  • Lubrizol
  • LUND UNIVERSITY
  • THE UNIVERSITY OF sydney
  • UNIVERSITÀ DEGLI STUDI DI GENOVA

FAQs About  Spectrocolorimeter

To quantify color change, take the original L*a*b* values of a sample, and reread after exposure or processing. Compute the difference as 1/2(Emut1 Emut2). The larger the value of ΔE, the more obvious the change of color is, which can be used in quality or stability testing.


In the study of chemical reactions, calorimetry deals with changes in heat (energy and enthalpy). Spectrophotometry is the measurement of the light absorbance or light transmittance to determine the concentration or color of a solution. The first one monitors the thermal processes, whereas the second one addresses the aspects of light and color.


In industrial production and quality control, color consistency is one of the core elements determining product quality. Whether it is the metallic paint for automobile coating, the dyeing effect of textile fabrics, or the ink matching in packaging and printing, subtle color deviations may lead to cost waste or damage to brand image.

The LAB color space defines colors with a three-dimensional model:

  1. Lightness (L): It indicates the lightness or darkness of a color, ranging from 0 (pure black) to 100 (pure white).

  2. Hue and Saturation (a and b):

    • The a-axis represents the red-green tendency, with positive values leaning towards red and negative values leaning towards green;

    • The b-axis represents the yellow-blue tendency, with positive values leaning towards yellow and negative values leaning towards blue.

It is a globally recognized standard and supported by most modern color measurement equipment. Color is quantitatively analyzed by measuring Lab values with instruments.


A colorimeter is used to measure the intensity of color of a solution by measuring its absorbance at selected wavelengths of light. It is widely applied in chemistry, food, pharmaceuticals, and quality control to determine concentration, track color changes, or product uniformity.


A spectrophotometer measures the full visible color spectrum (typically 400–700 nm). It offers significantly higher precision and enables detailed evaluations – including spectral curves, ΔE values, and color distance measurements. It is the preferred choice for demanding applications in labs or color development environments. learn more..

The core difference between a colorimeter and a spectrophotometer lies in their light measurement methods. A colorimeter measures color values based on the tristimulus method (e.g. LAB or RGB) and compares the sample to a reference. It's ideal for quick, repeatable measurements under consistent conditions – such as in production or incoming goods control.
