PS500 Portable Sphere Spectrophotometer

Nano Scale Portable Sphere Spectrophotometers

The full line of PS Portable Sphere Spectrophotometers offers convenient, cost-efficient solutions designed to provide fast, precise color measurement information on a wide range of materials, such as paper, paint, plastics, and textiles.


Key Highlights

  • D/8 (diffuse illumination, receiving in 8 direction), SCI

  • 3 apertures

  • UV light source+full spectrum LED, from conventional materials to fluorescent samples

  • Flagship level quality control: non-contact automatic calibration, combined with customized color management process

  • Guaranteed Grade 1 metrology certification

  • Reliable repeatability (ΔEab ≤0.03) and **inter-instrument agreement (ΔEab ≤0.3)


PS500 Portable Sphere Spectrophotometer Instructions Operating Manual PS500 Portable Sphere Spectrophotometer PDF
This PS500 Portable Sphere Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

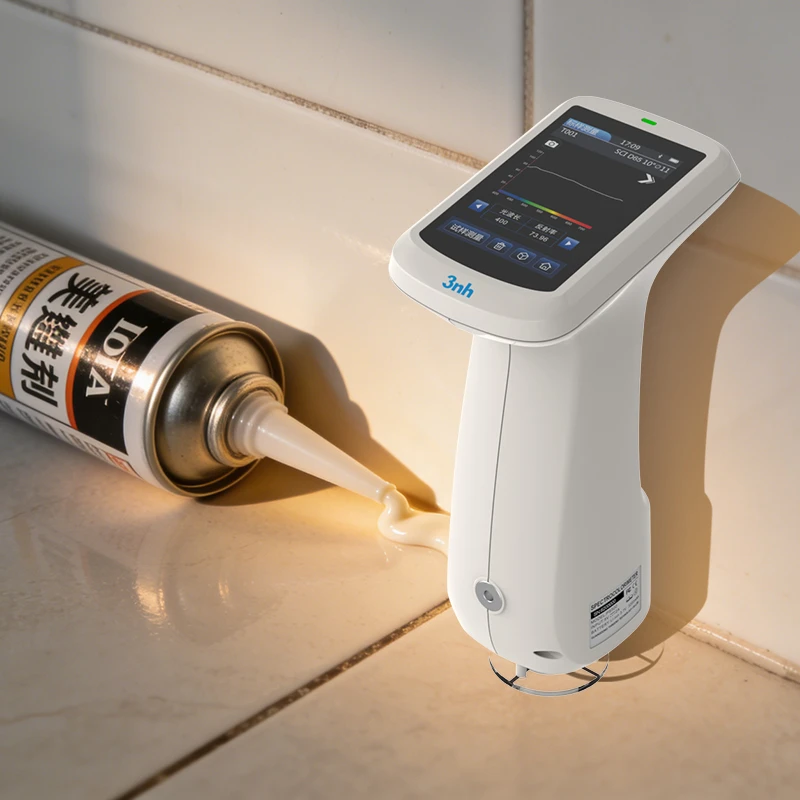

The 3nh PS500 is a portable spectrophotometer specially designed for caulking & gap-filling, focusing on accurate color measurement for daily basic applications. Adopting 3 interchangeable apertures, dual optical path design and self-developed algorithm, it delivers stable and precise color data. Compatible with multi-system software and mobile APP expansion, it is an ideal choice for color quality control in plastics, electronics, paint & coating, textile dyeing, ceramics and other industries.

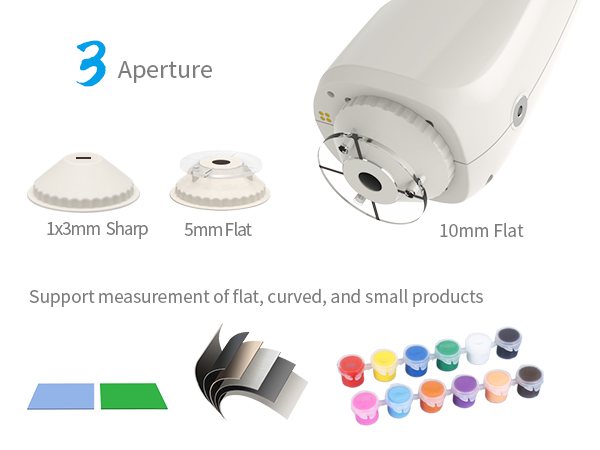

1. Excellent Scene Adaptability: 3 Apertures + High-Precision Positioning

Multi-size measuring apertures: Equipped with 1×3mm needle tip, 5mm flat, 10mm flat apertures, suitable for small parts, curved surfaces, irregular products and regular flat samples.

High-precision positioning: Adopts high-stability positioning plate to accurately lock the measuring area and improve efficiency in complex applications.

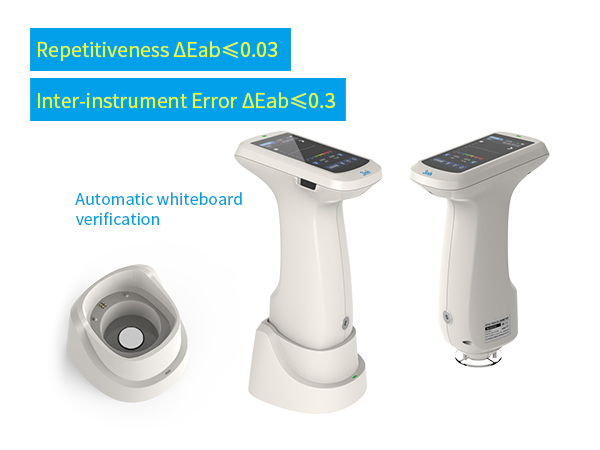

2. High Measurement Stability

High accuracy & stability: Repeatability ΔEab ≤ 0.03, inter-instrument difference ΔEab ≤ 0.3, ensuring consistent results for repeated measurements. Supports multi-instrument collaboration for batch inspection.

Contact white calibration: Built-in calibration white tile at the bottom; simple and fast calibration keeps the instrument in optimal measuring condition.



3. User-Friendly Operation: Built-in Digital Color Card + Multi-Platform Connection

Built-in digital color card: Supports quick color matching via mobile APP with complete basic functions.

Smart interaction: 3.5-inch TFT true-color capacitive touch screen with ergonomic inclined design for comfortable long-time operation.

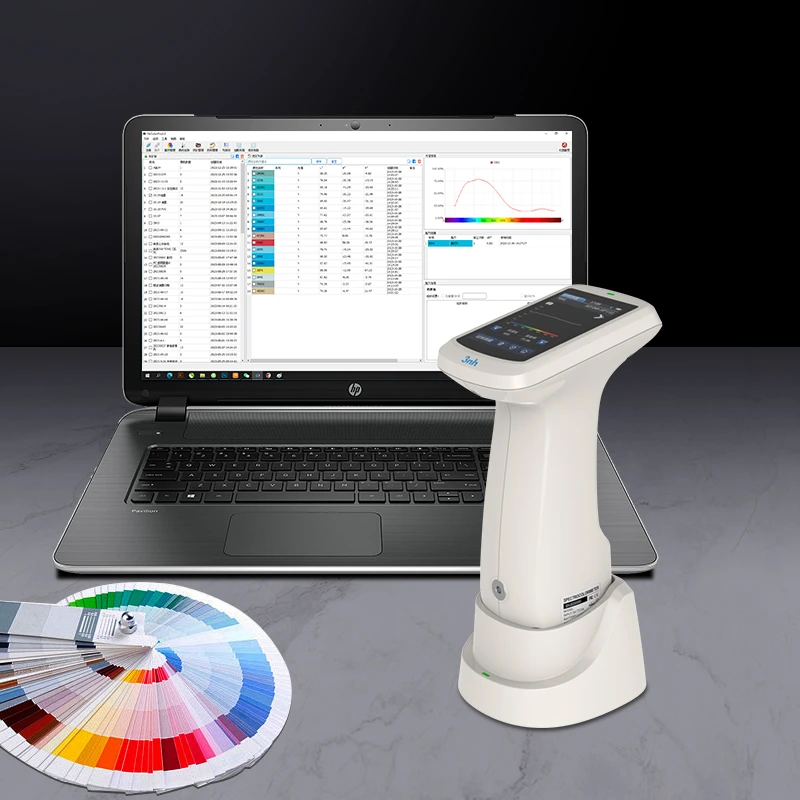

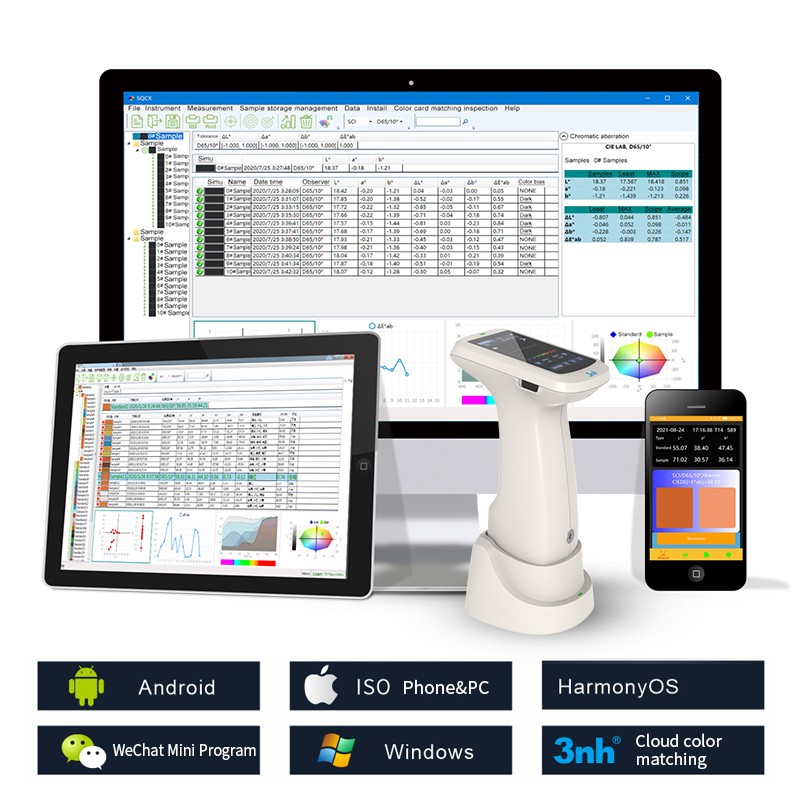

Multi-device connectivity: USB and Bluetooth interfaces; connects to PC, printer and other devices. Compatible with Android, iOS, Windows, WeChat Mini Program and HarmonyOS for fast data transmission, sharing and remote management, facilitating quality control and color data analysis.

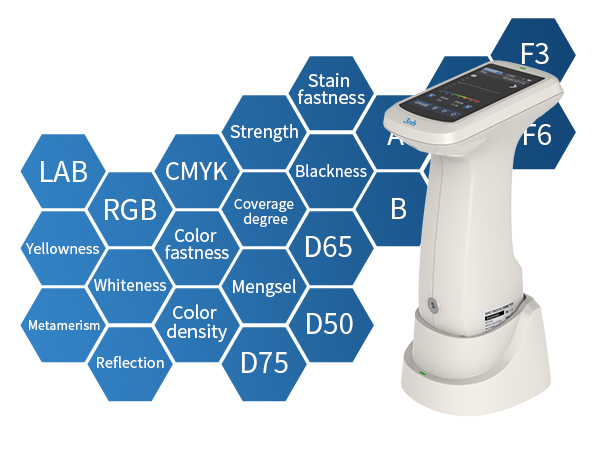

4. Comprehensive Parameters for Various Industries

Rich measurement parameters: Provides over 40 internationally standard indicators (including hiding power, whiteness, yellowness, etc.) and 30 light source conditions.

Intuitive color data display: Shows spectrum graph/data, sample color values, color difference graph, pass/fail judgment, color simulation and color tendency to meet diverse industry applications.

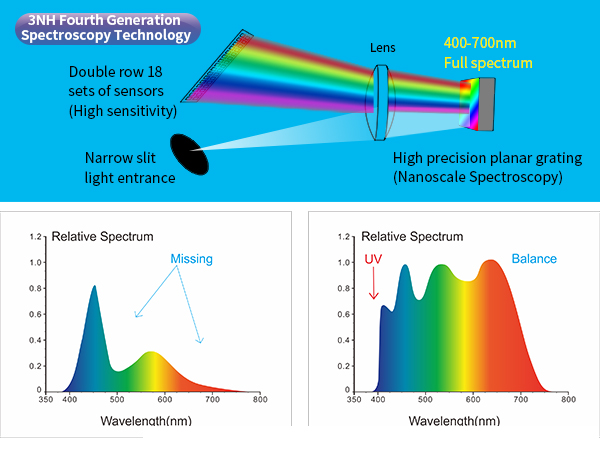

5. Professional Measurement Technology

International standard D/8 + SCI technology: Accurately simulates human visual observation to capture real surface color.

Full-spectrum combined LED light source: Uniform spectrum from 400-700 nm, eliminating measurement errors caused by spectrum missing.

Dual 18-group silicon photodiode array sensor: Ensures efficient and accurate color data processing.

Dual optical path system with self-developed algorithm: Stronger anti-interference performance than single optical path, further improving accuracy and stability.

Nano-integrated optical device: Achieves nano-level spectroscopy for more precise color signal acquisition.




Product Model PS500 Spectrophotometer
Illumination Geometry D/8 (diffused illumination, 8° viewing), SCI (specular component included);Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E1164, DIN 5033 Teil7
Features For color quality control in plastics, electronics, paint & coating, textile dyeing, ceramics and other industries. Portable design, built-in digital color card, color lookup and function expansion via mobile APP.
Light Source Full-spectrum combined LED
Integrating Sphere Φ40mm
Spectroscopy Nano-integrated optical device
Sensor Dual 18-group silicon photodiode array
Wavelength Range 400-700nm
Measuring Apertures 3 apertures: 1×3mm needle tip + 5mm flat + 10mm flat
Light-containing method SCI
Color Spaces CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formulas ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,DINΔE99,ΔE(Hunter)
Other Indices Spectral reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM E313), Metamerism Index MI, staining fastness, color change fastness, strength, hiding power, 555 color classification, Munsell (C/2), blackness (My, dM), CMYK color density, Tint
Observer Angle 2°/10°
Illuminants D65,A,B,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2
Display Spectrum graph/data, sample color values, color difference graph, pass/fail result, color simulation, color tendency
Measuring Time Approx. 1 s
Repeatability Chromaticity value: MAV/SCI, standard deviation value ΔE*ab within 0.03 (after preheating and correction, measure the white board 30 times at intervals of 5 seconds and take the average value). Spectral reflectance: MAV/SCI, standard deviation within 0.1% (400-700nm: within 0.2%)
Inter-Instrument Difference MAV/SCI, ΔE*ab ≤ 0.3 (average of 12 BCRA Series II tiles)
Display 0.01
Reflectance Range 0-200%
Reflectance Resolution 0.01%
Measurement Mode Single measurement, average measurement (2-99 times)
Positioning Stable plate positioning
White Calibration Contact white calibration
Dimensions 120*75*207mm
Weight 367g (excluding calibration base)
Battery Li-ion battery, 3.7V, 3200mAh, up to 8000 measurements in 8 hours
Light Source Life Over 1,200,000 measurements within 10 years
Display 3.5-inch TFT true-color capacitive touch screen
Interfaces USB,Bluetooth
Data Storage 200 standards, 10000 samples; unlimited storage via APP/PC
Software Support Android, iOS, Windows, WeChat Mini Program, HarmonyOS
Languages Simplified Chinese, English, Traditional Chinese
Operating Environment 0-40°C, 0-85%RH (non-condensing), altitude < 2000m
Storage Environment -20-50°C, 0-85%RH (non-condensing)
Accuracy Meets legal metrology certification
Standard Accessories Power adapter, data cable, user manual, quality management software (official website download), white calibration box, protective cover, wrist strap, measuring apertures
Optional Accessories Mini printer, powder test kit
Note Specifications subject to change without prior notice



Our Valued Clients

  • infieon
  • UPORTO
  • Lubrizol
  • QUEEN UNIVERSITY
  • university mississippi
  • YONSEI UNIVERSITY
  • THE UNIVERSITY OF sydney
  • UCDAVIS UNIVERSITY

FAQs About  Spectrocolorimeter

L*a*b* is an L*a*b* color space. The L* is a measure of lightness (as 0 = black, 100 = white), a* indicates the green to red axis, and b* indicates the blue to yellow axis. It is also common in color measurement in terms of precision and reliability.


A colorimeter is sufficient when measuring similar materials or batches with stable conditions. Suitable for fast, low-cost color checks where high precision is not required. Quick quality control in plastics, paint batch consistency, food color grading (e.g., fruit ripeness), and basic printing checks.

A spectrophotometer is recommended when you need professional, maximum color accuracy or when testing materials with variable surfaces – such as glossy or textured samples. Like textile dye formulation, cosmetic shade matching, medical device color calibration, high-end printing (e.g., packaging for luxury goods), and material spectral research. learn more Understanding Spectrophotometric Parameter Measurement


A Spectrophotometer color measuring device objectively determines the color of a surface. It is used wherever accurate color matching, reproducibility or deviation control is needed – for example in quality assurance, product development or incoming goods inspection.

Spectrophotometer color measuring devices primarily perform three key tasks:

Capture color information: They detect light reflected, transmitted, or emitted by a sample using optical sensors.
Quantify color data: They convert the captured optical signals into standardized numerical values, such as RGB, CMYK, or CIELAB coordinates.
Compare color consistency: They compare the measured color data of a sample against a target or standard to assess color accuracy and uniformity.


A colorimeter is a quick and inexpensive method to measure color and to control color in a material or solution. It is used to maintain color consistency during production and to check the chemical concentration. It also assists with the quality control of labs, food, textiles, and pharmaceuticals.


The accuracy of colors is determined by comparing the values of the colors (L*a*b*) of a sample with a standard reference sample using tools such as spectrophotometers. The variation is measured as ΔE. The smaller the value of ΔE, the more accurate, the nearer to the target color.
