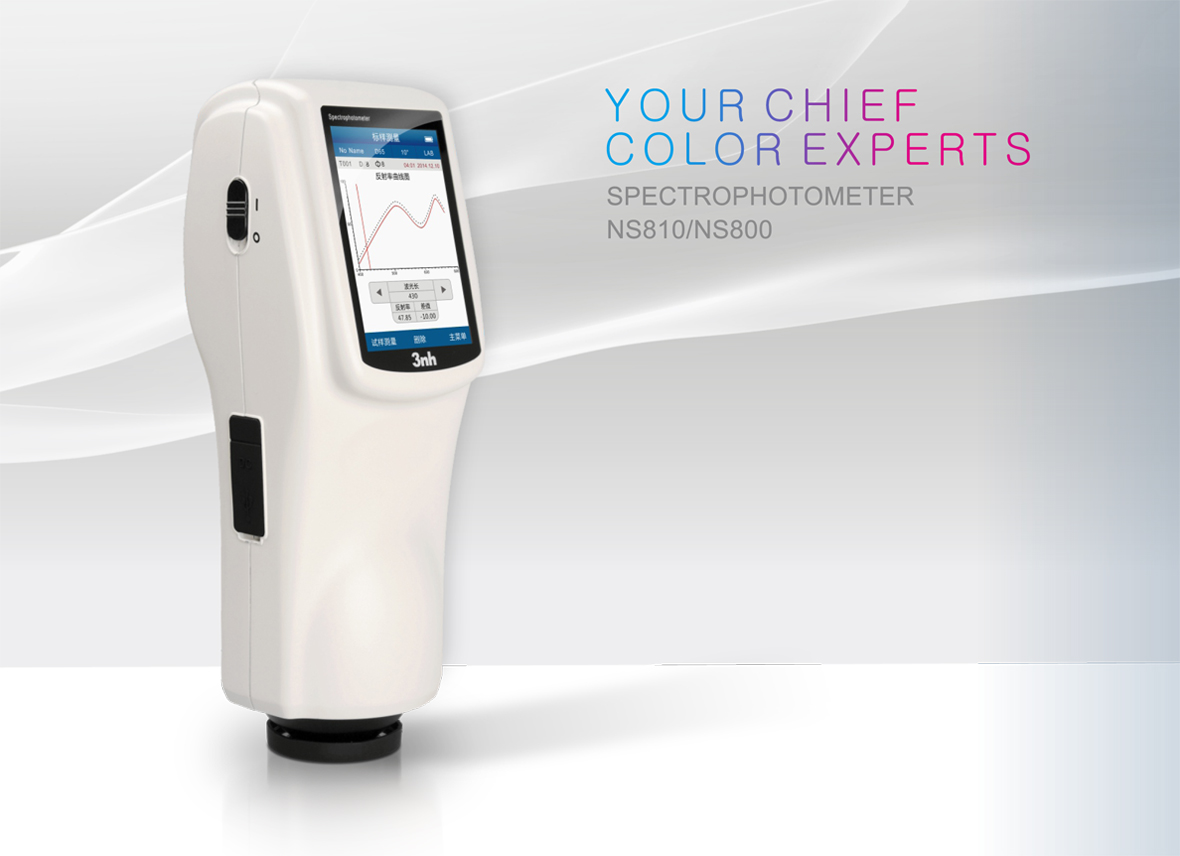

NS800 Hand Held Spectrophotometer

Portable Spectrophotometer for Color Measurement

The NS800 array spectrometer is a new handheld spectrophotometer, developed with 3NH's proprietary core technology, features separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis. This design ensures high - speed, accurate, stable, and consistent measurements. NS800 has a compact design, is easy to handle and quick to get to the right colour, even on uneven surfaces of objects.


Key Highlights

  • 45/0 method (45 ring-shaped illumination, vertical viewing)

  • Excellent Repeatability (ΔE * AB≤0.2)

  • Inter - instrument Error Control (ΔE * AB≤0.04)

  • Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result and etc

  • Large 3.5 Inch Touch Screen Operation, Fully Automatic Calibration

  • Largest 58mm integrating sphere

NS800 Hand Held Spectrophotometer Instructions Operating Manual NS800 Hand Held Spectrophotometer PDF
This NS800 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

NS800 Spectrophotometer: Full-Scene Color Consistency Solution

NS800 hand held spectrophotometer uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis. NS800 spectrophotometer with higher accuracy is very sensitive to any colors. It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.



In the R&D process, 3nh scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.


3nh also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS800 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of 3nh high technology which realizes to be fully compatible with international market.

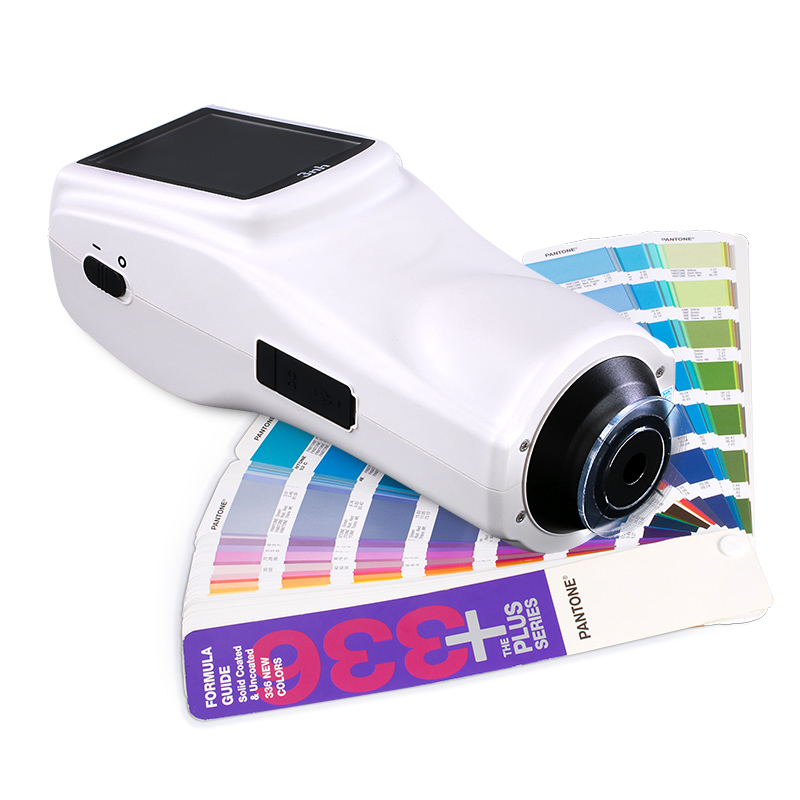

NS800 Spectrophotometer



NS800 Features



1. Aesthetic design perfectly combined with ergonomics structure.
2. 45/0 geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.
3. 3.5 inch large capacitive touch screen.
4. Two standard observer perspectives, multiple light sources modes, a variety of color systems.
5. The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.
6. Large capacity storage, can save more than 10000 data.
7. PC software with powerful extension functions.
8. High hardware configuration with a number of innovative technologies.
9. Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.
10. 15° oblique angle screen, more in line with the human eye observation.



NS800 Application Industry



This durable, hand-held 3nh Spectrophotometer is designed specifically for the rigors of on-site testing, with rugged components and waterproof, dustproof, chemical-resistant housings. NS800 spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.  It can measure reflectance spectrum and other color index precisely. NS800 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

The NS800 spectrophotometer is_widely used in various industries



Measuring Aperture

NS800

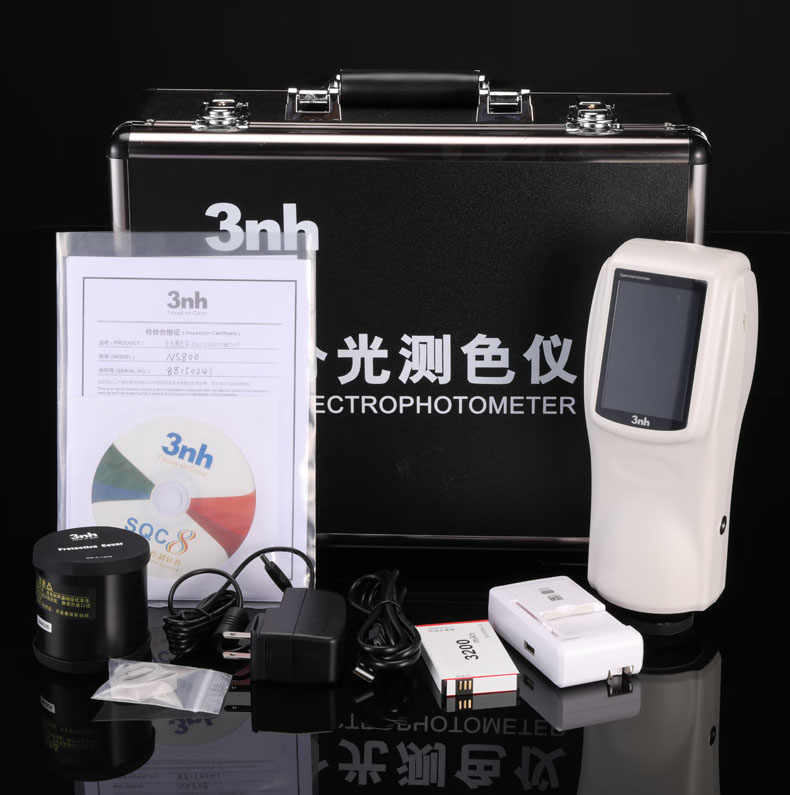

NS800 spectrophotometer instrument Packaging and Accessories

NS800 Spectrophotometer Specifications



 Model NS800
 Illumination/observation system 45/0 method (45 ring-shaped illumination, vertical viewing), Comply with CIE No.15，GB/T 3978
 Integrating sphere Size Φ58mm
 Light Source combined LED sources
 Sensor Silicon photodiode array
 Wavelength range 400~700nm
 Wavelength interval 10nm
 Reflectance range 0~200%
 Measuring Aperture Φ8mm
 Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV
 Color difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（h）
 Other Chromaticity DataWI(ASTM E313，CIE/ISO, AATCC, Hunter), YI(ASTM D1925，ASTM 313), Metamerism Index (Mt), Color Stain, Color Fastness, Color Strength
 Observer 2°/10°
 Illuminant D65，A,C,D50，D55，D75，F2，F6，F7，F8，F10，F11,F12
 Display Data Spectral Value/Graph, Colorimetric Value, Color Difference  Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
 Measurement Time 1.5s
 Repeatability Spectral Reflectance: standard deviation within 0.1%(400~700nm:  within 0.2%)
 Colorimetric Value Standard deviation within Delta E*ab 0.04 (Measurement conditions:  white calibration plate measured 30 times at 5 seconds intervals after  white calibration was performed.)
 Inter Instrument Agreement Within Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles)
 Dimension L*W*H=90*77*230mm
 Weight 600g
 Battery Li-ion battery. 5000 times within 8 hours
 Lamp Life 5 years, more than 1.6 million measurements
 Display Screen TFT 3.5inch, Capacitive Touch Screen
 Interface USB
 Data Memory 1000 Standards, 15000 Samples
 Operating Temperature  0~40℃(32~104°F)
 Storage temperature -20~50℃(-4~122°F)
 Standard AccessoryPower Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
 Optional AccessoryMultifunctional test kit, Micro Printer, Universal Test Compon
 Others

 Provide complete spectrum reflectance curve, Input L, a, b value  manually

 Notes The specifications are subject to change without notice



Our Valued Clients

  • customer cubic logo
  • partner vishay logo
  • customer swaraj
  • vtech logo vector
  • vogels logo vector
  • 3NH customer atlas
  • customer hms logo
  • Client mankind

FAQs About NS800 Portable Spectrophotometers

When detecting color differences, the first factors to consider when selecting a light source include its stability, directionality, lifespan, and the effectiveness of the ultimately obtained spectral curve. The illuminant of a colorimeter is a fixed bulb, such as a tungsten lamp，LED light or a long-life xenon lamp. However, for the same color sample, the results displayed by the instrument vary under different light sources. This is because different light sources cause different absorption and reflection of light on the sample, leading to differences in how both the human eye and the instrument perceive the color.

In general, the D65 light source is used in the application of coil steel inks for construction. The D65 light source is equivalent to average daylight. Most coil steel inks for construction are used outdoors, and sunlight is regarded as the standard light source in outdoor environments. For household appliance coil steel inks, due to their usage characteristics, they are mostly used indoors. Therefore, the A standard light source is adopted for color measurement of samples based on indoor lighting conditions. The A light source is a carefully specified tungsten light source. Other light sources, such as fluorescent light sources, can be used in many types of applications. For example, some textile factories use fluorescent light sources. Therefore, a reasonable light source should be selected as the mutually recognized measurement method based on actual usage conditions and user requirements. Once agreed upon by both parties, color measurement must be conducted under the same conditions. This helps reduce unnecessary systematic errors and human errors, achieving the optimal consistency in color measurement.

The 3nh high-precision spectrophotometric colorimeter adopts a combined LED light source with long lifespan and low power consumption, which includes UV (ultraviolet) and UV-excluded options. This design can meet the color difference detection needs of different users and supports the selection of multiple light source modes.

SCI&SCE are two method in the color measurement. SCI means Specular Component Include,SCE means Specular Component Exclude.

Under the method of SCE, only test diffuse refection and exclude specular reflection. In that way, the test result is similar to object color was observed by human eyes.

Under the method SCI, both the diffuse refection and specular reflection will be included. In that way, the value about the color is more objective. It will not effect by the environment condition.

When we choose the instrument, those elements should be taking into consideration.


The machine used to measure color is primarily called a colorimeter or spectrophotometer.

Spectrophotometer: The most common and precise type. It analyzes light reflected/transmitted by an object across the visible spectrum to quantify color accurately. A spectrophotometer can measure colors on smooth or matte surfaces, as well as textured, glossy, mirror-like surfaces, and special effect colors. It measures the reflected light of a sample at a fixed angle (e.g., 45˚) or captures light reflected at all angles to calculate color measurements that closely match what the human eye perceives. Additionally, similar to how humans flip a sample to view colors from different angles, a spectrophotometer is suitable for measuring a variety of materials and surface characteristics. Widely used in industries like paint, textiles, plastics, Chemicals, Pharmaceuticals, and printing.

Colorimeter: Also called photoelectric integrating colorimeter, a simpler, more cost-effective option. It measures color based on three primary colors (RGB) and is suitable for basic color matching needs. A photoelectric integrating colorimeter is a color measurement device based on the photoelectric integration principle. It directly measures the tristimulus values XYZ of an object's color using three color filters (red, green, blue) and silicon photocells as three sensors. The color measurement principle of this instrument imitates the human eye's mechanism of perceiving the three primary colors (red, green, blue). It corrects the relative spectral sensitivity of the detector through color filters to match the CIE-recommended spectral tristimulus value functions x(λ), y(λ), and z(λ).

Spectrocolorimeter: Combines the functions of spectrophotometers and colorimeters, offering both spectral data and color space values for comprehensive analysis.

Who are we? Threenh Technology: 22-Year Professional Color Measurement Solution Provider

Threenh Technology is a Chinese professional Measurement Instrument manufacturer with 22 years of industry experience, specializing in the field of color measurement and surface gloss detection. Integrating research and development, design, production, marketing, and sales, the company takes technological innovation as its core and is committed to providing global customers with high-precision and intelligent testing instruments as well as professional solutions.


At most of time, we have Spectrophotometer stock in the factory. Generally it is 1-3 working days after the payment confirmed. After shipped, we will email you the tracking number. You can check the shipping status of your order on the website. If you are in urgent need, we can consider making special arrangement for you.
