YS4580 Plus 45/0 Spectrophotometer

45/0 Horizontal Spectrophotometer

YL4580 spectrophotometer is a widely recognized and highly acclaimed excellent product, suitable for measuring reflected colors and color differences in various industries. Uses 45/0 geometric optical structure in accordance with CIE No. 15 and adopts concave grating spectrometry to accurately measure sample reflectance and various colorimetric data; Advanced 45/0 Geometry Drives Accurate Color QC Across Industries


Key Highlights

  • Optional aperture 2mm/4mm/8mm

  • 3.5-inch TFT color LCD,Capacitive Touch Screen

  • Sample 20000 Pcs Data memory

  • SCI and SCE

  • Repeatability ΔE*ab 0.05; Inter-instrument Error ΔE*ab 0.2

  • Color management software

  • One click measurement of various indicators of traffic road signs

YS4580 Plus 45/0 Spectrophotometer Instructions Operating Manual YS4580 Plus 45/0 Spectrophotometer PDF
This YS4580 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)


YS4580 Plus spectrophotometer uses 45/0 (45 degree ring illumination, 0 degree reception) geometric optical structure in accordance with CIE No. 15 and adopts concave grating spectrometry to accurately measure sample reflectance and various colorimetric data; Equipped with a large measuring aperture of Φ20 mm for traffic signs, color matching, precise color transfer;Built-in GB2893, GB/T18833 standard color, can be manually customized polygonal rectangle tolerance, one button to realize the measurement of traffic road signs, marking lines, reflective film brightness factor and chromaticity coordinates. For uneven sample with stripes or granular samples, the instrument has high accuracy and high stability.

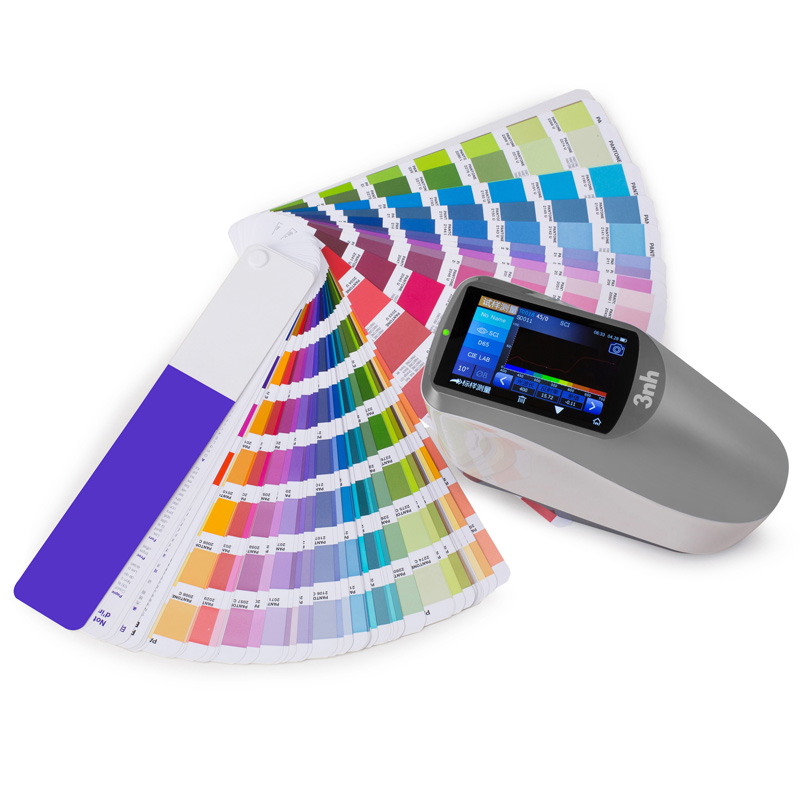

ys4580_Sample_measurement_800x800

3nh 45/0 Spectrophotometers

The 45/0 geometry spectrophotometer measures color by illuminating the sample at a 45-degree angle and capturing the reflected light at 0 degrees, perpendicular to the sample. This setup closely mimics how human eyes perceive color, making it ideal for evaluating the color as it appears in real-world conditions.  In a “fixed geometry” or “single angle” device, the first number is the starting point of the light, and the second number is where the light ends up after the reflection off the surface of the sample. In a 45:0, the light source is set at 45-degrees and the detectors are set directly overhead at 0-degrees.

When to Use 45/0 measurement:

  • Smooth and Matte Surfaces: Particularly suitable for smooth and matte surfaces, where surface texture and gloss do not significantly affect the color perception.

  • Packaging and Printed Materials: Often used in industries where the final appearance to the consumer is critical, such as packaging and printed media.

  • Color Quality Control: Suitable for quality control in environments where visual consistency is key, ensuring that the product looks as intended under standard viewing conditions.


Translation for Color Measurement on Smooth Surfaces

For color measurement exclusively on smooth object surfaces, a color difference meter with a 45°/0° or 0°/45° geometry can be selected. This angular configuration most closely mimics the way the human eye perceives objects; therefore, the color information it measures aligns most closely with human visual observations.

For instance, in color inspection scenarios involving flat plastic products, smooth metal sheets, and similar smooth surfaces, a 45°/0° or 0°/45° color difference meter can quickly provide highly accurate color data.


YS4580 Typical Specifications


1. Beautiful appearance and perfect combination with ergonomic structure design;

2.45/0 geometric optical structure, in accordance with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833;

3. Adopt high-life and low-power combined LED light source, including UV/excluding UV; uses a LED light source with longterm stability and patented illumination control which provides superior accuracy and low maintenance for many years.

4.Φ20mm aperture adapt to larger samples or uneven samples;

5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;

6. High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS detector, etc.;

7.USB/Bluetooth ®5.0 (compatible with 2.1) dual communication mode, more adaptable;

8.Super stain-resistant and stable standard white calibration plate;

9. Large-capacity storage space, can store more than 30,000 test data;

10. Two standard observers, multiple light source modes, multiple color systems, and a variety of standard colorimetric indicators to meet the needs of various customers for color measurement;

11. PC software has powerful function extensions;

12.Built-in standard polygon tolerance setting and specific traffic sign gamut, especially suitable for traffic signage brightness factor and chromaticity performance judgment;

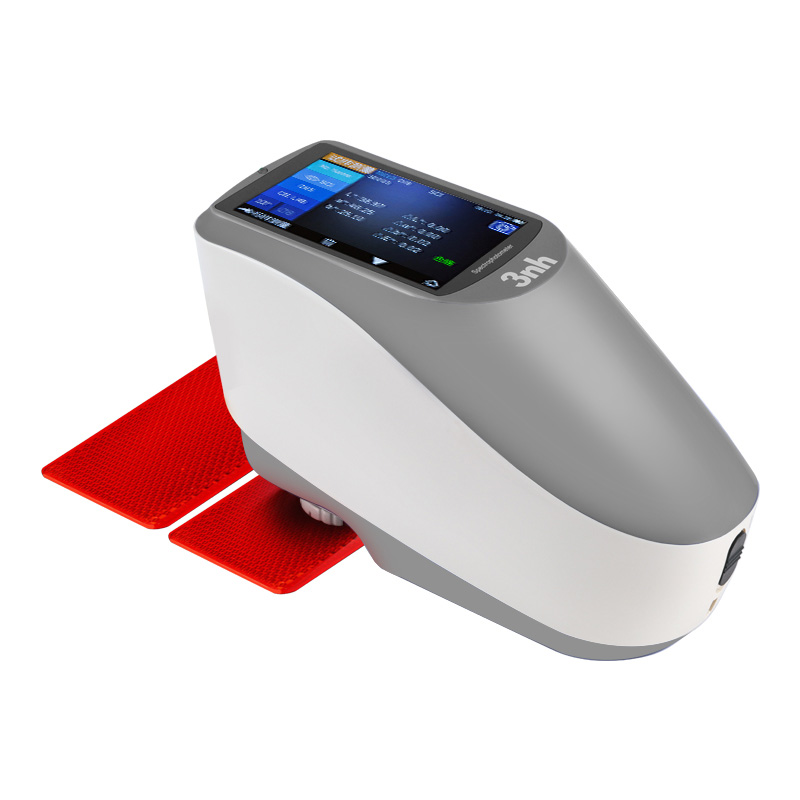

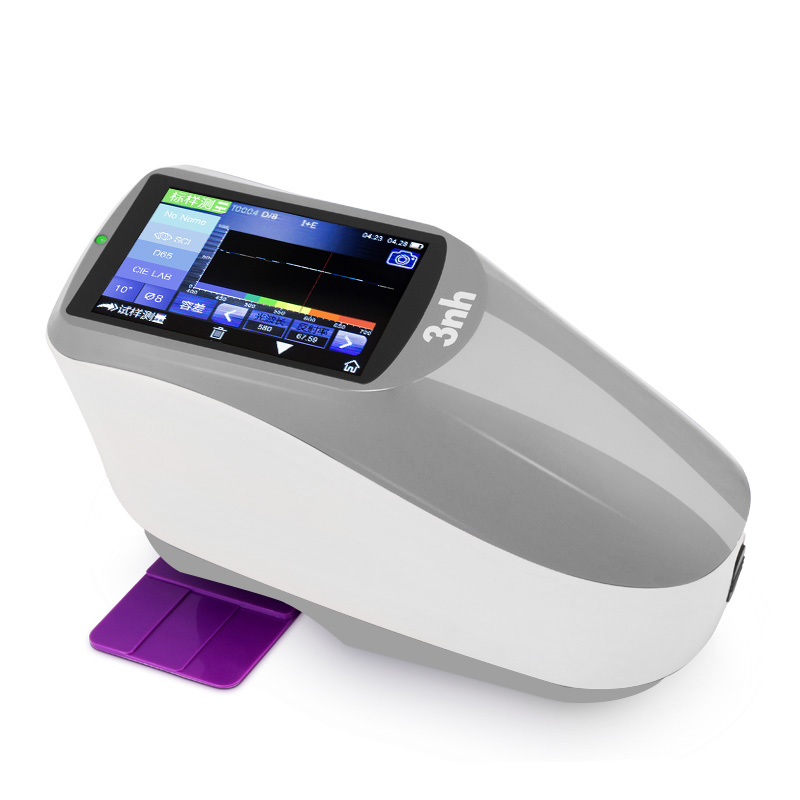

Model YS4580 Series measures plastic traffic signs

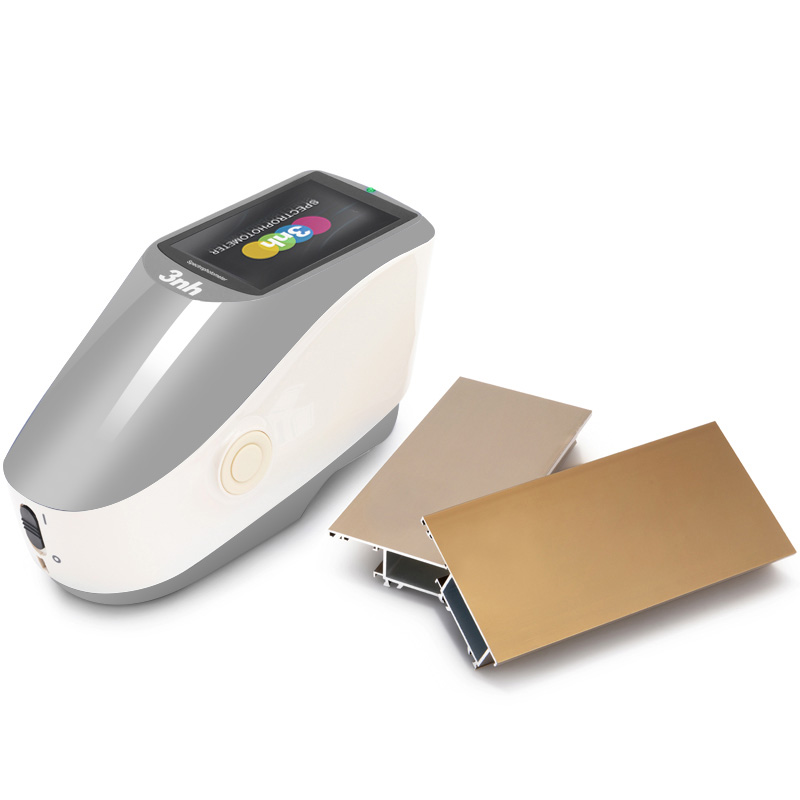

surface finish of anodized products measurement

YS4580 Solid color measurement

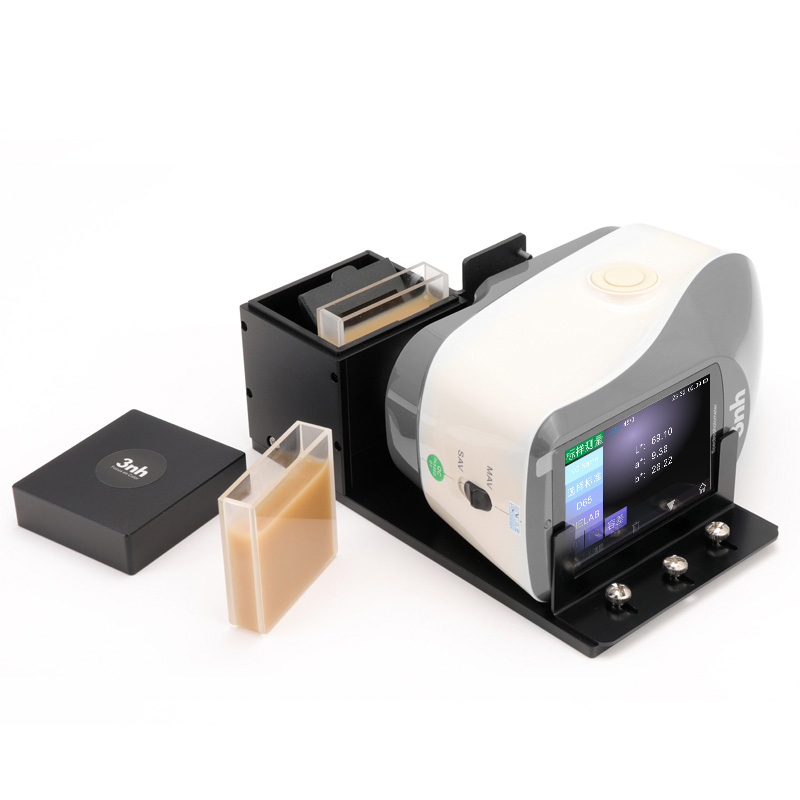

ys4580 Liquid color measurement

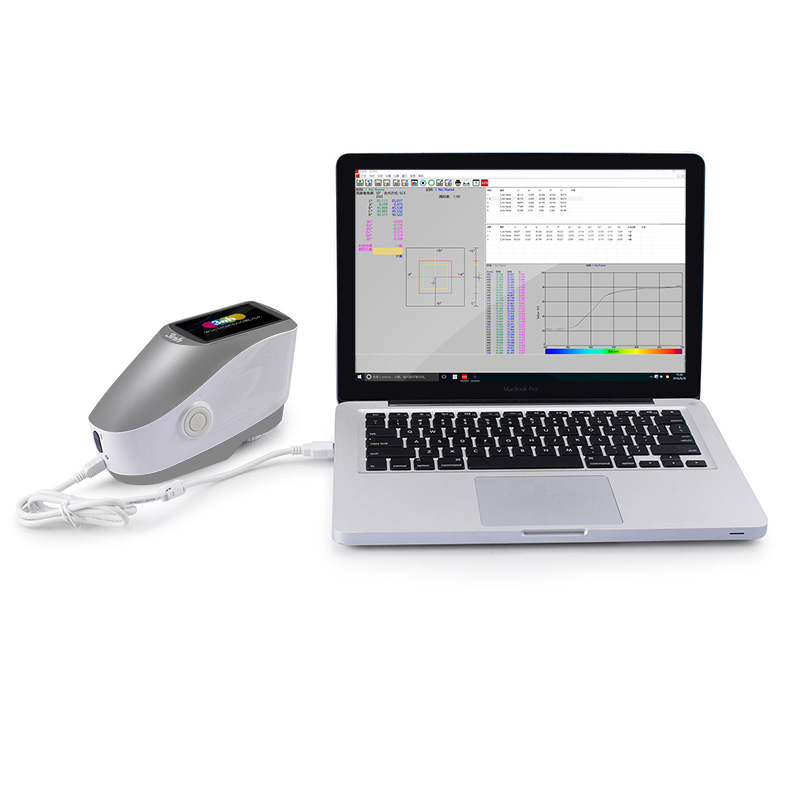

ys4580 Connect computer for color measurement

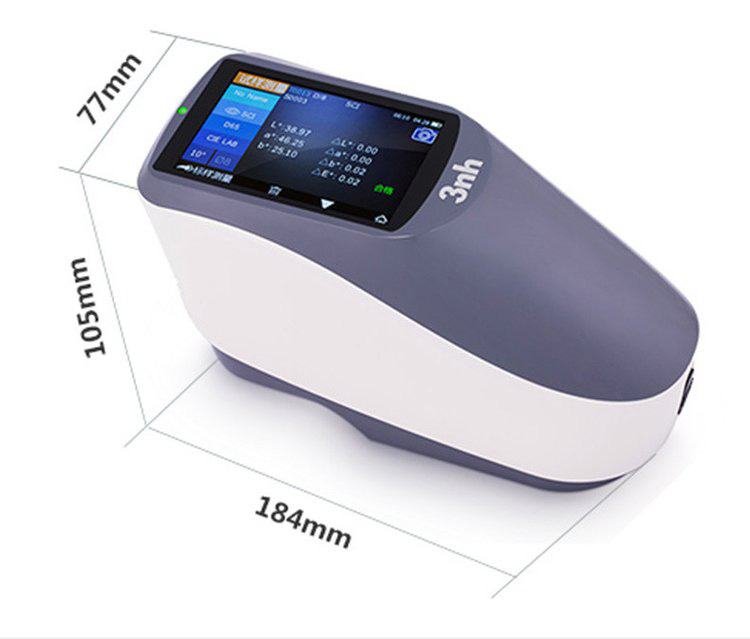

ys4580 Product dimensions

YS4580 color Instrument Packaging Diagram


A clear understanding of your color measurement process’s specific requirements is key to selecting the right spectrophotometer—one that delivers accurate, reliable results. Whether your priority lies in capturing visual appearance fidelity or ensuring color consistency across diverse materials, choosing the proper measurement geometry will significantly boost the quality and precision of your color evaluations. For more information click on learn more and read our white paper.


Model YS4580 Plus
Illumination/Observation system 45/0(45 ring-shaped illumination, vertical  viewing);
Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833
Features 20mm aperture special design for traffic signs , It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
It is used for accurate analysis and transmission of laboratory color, also for Fluorescence sample color measurement .

Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere Size Φ48mm
Light Source Combined LED Light, UV Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Reflectance Range 0~200%
Measuring Aperture Φ20mm
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94 ,ΔE*cmc(2:1),ΔE*cmc(1:1) ,ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric Index Spectrum Reflectance Rate, WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBergerStensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73) Metamerism Index Mt， Staining Fastness, Color Fastness, Strength (dye strength, tinting strength), Opacity 8-degree Gloss, 555 Index，Blackness（My,dM）, Color Density CMYK(A,T,E,M), Tint(ASTM E313-00)，Munsell（Some functions are realized through the computer）
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF, ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, Light source can be customized(a total of 41 kinds of light sources, some of which are realized through the host computer/APP)
Display Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time About 1.5s
Repeatability Spectral reflectance: Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)

Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB, Bluetooth 5.0
Data memory Standard 1000 Pcs, Sample 30000 Pcs
Language Chinese Simplified, Chinese Traditional, English, French, Portuguese, Russian, Spanish, Italian, German
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)）
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional Accessory Micro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.
