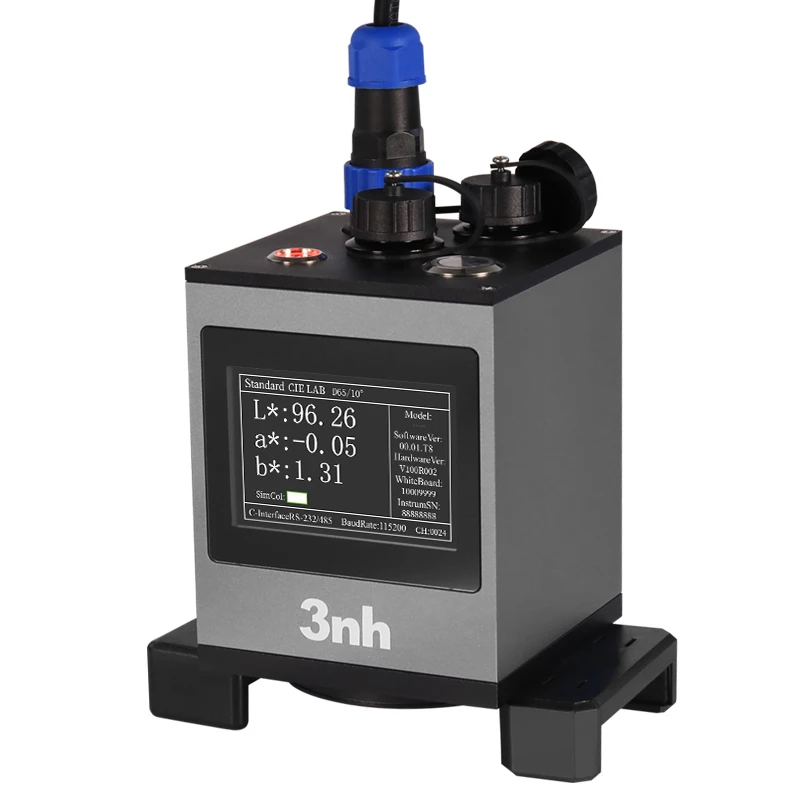

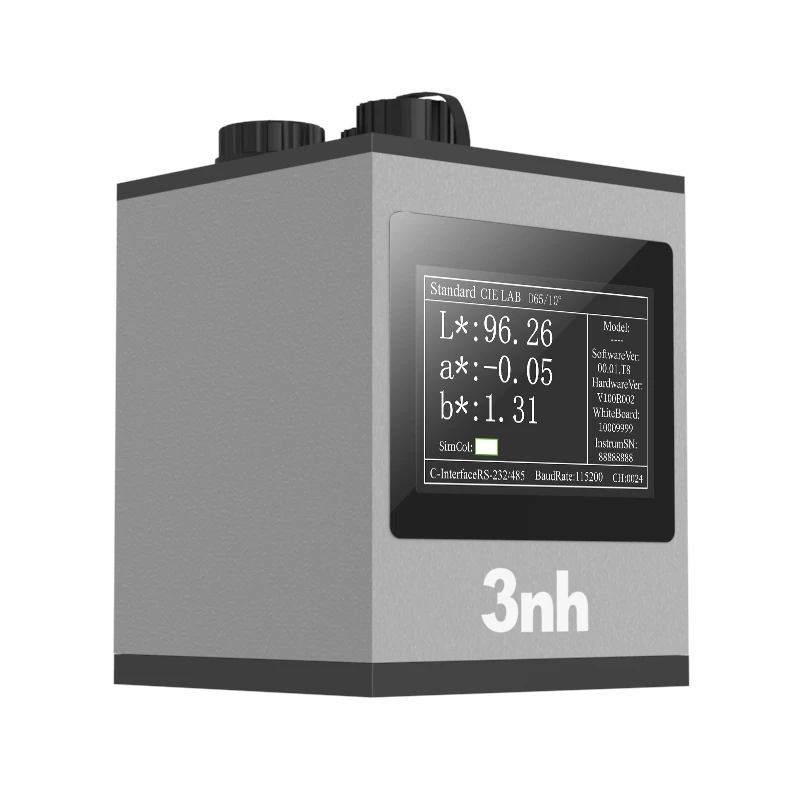

YL70 45/0 Non-Contact Spectrophotometer

YL70 45/0 Non-Contact Spectrophotometer Instructions Operating Manual YL70 45/0 Non-Contact Spectrophotometer PDF
This YL70 45/0 Non-Contact Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

3nh YL70 Non-contact Spectrophotometer adopts the 45/0 optical structure. It can precisely measure special samples such as liquids and powders in a non - contact way. It is specifically designed for accurate color measurement in automated production lines. It supports 485 or USB communication and multi - device collaboration. Paired with the host computer software, it is suitable for integrated installation on assembly lines and robotic arms. It can monitor color data in real - time and synchronously transmit it back, providing efficient quality control solutions for multiple industries.

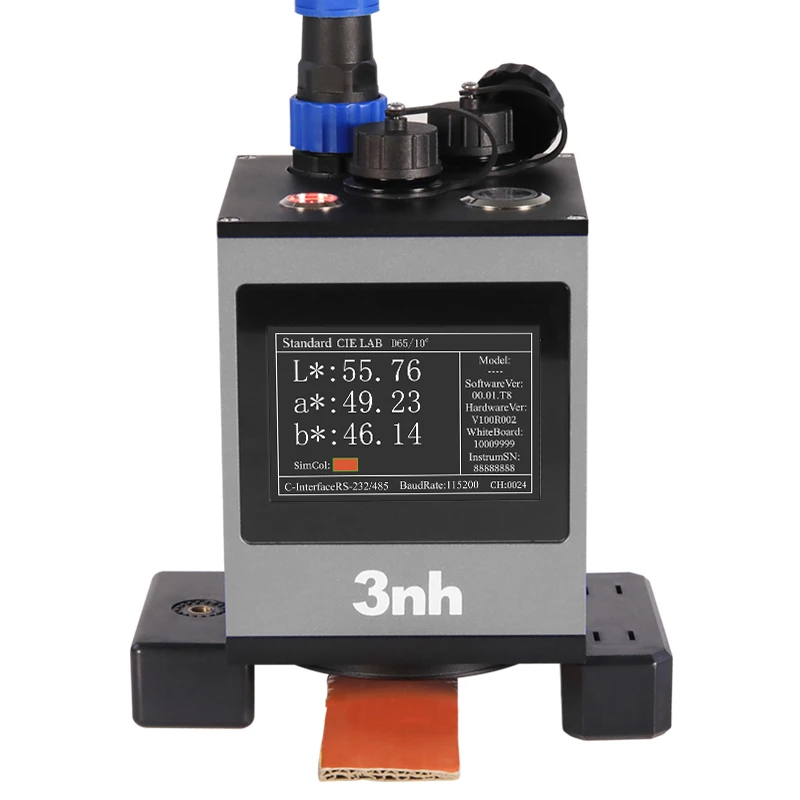

1. Non-contact precision color measurement

Non-contact measurement: solve the difficult problem of detecting special samples such as liquid, powder and scratch-prone surface, and realize pollution-free and damage-free color measurement. 7.5mm±0.15mm accurate ranging, no sample thickness limit, suitable for automatic production line diversified online detection.



2. High-speed and high-precision double breakthrough

With the high-performance hardware configuration of nano-integrated spectrum device and silicon photodiode array (20 groups in two rows), the equipment achieves a double breakthrough in measurement speed and accuracy.

Ultra-fast response, high-speed production: the fastest measurement is 0.11 seconds (conventional 0.2 seconds), and the measurement interval is only 1 second, which meets the requirements of high-speed production line.

Repeatability of chromaticity value: it can reach ΔE*ab≤0.05, and the display accuracy is 0.01, which meets the first-class measurement standard and ensures long-term accuracy.



3. Rich interfaces and easy integration

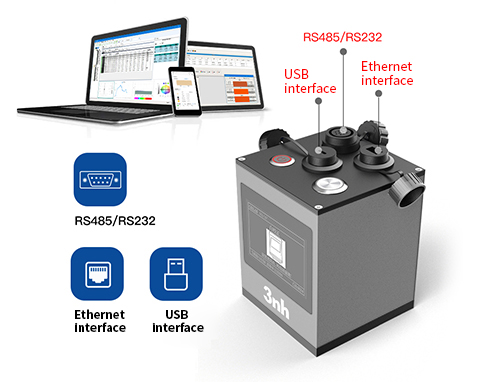

Rich interfaces to achieve collaborative control: equipped with USB, RS485, RS232, Ethernet and other rich interfaces, while supporting external triggering and analog signal output. It can easily realize real-time data interoperability and collaborative control with the production line control system, and help to build an automatic detection closed loop.

PC software data management: The supporting PC software further expands the data processing capability, supports data management, trend analysis, qualification judgment and historical tracing, helps enterprises to build a digital quality management system, and improves data utilization value and management efficiency.



4. Industrial reliability and ease of use

Environmental adaptability: wide temperature design (such as -20~50℃) and IP66 waterproof and dustproof industrial protection ensure long-term stable operation in industrial environment.

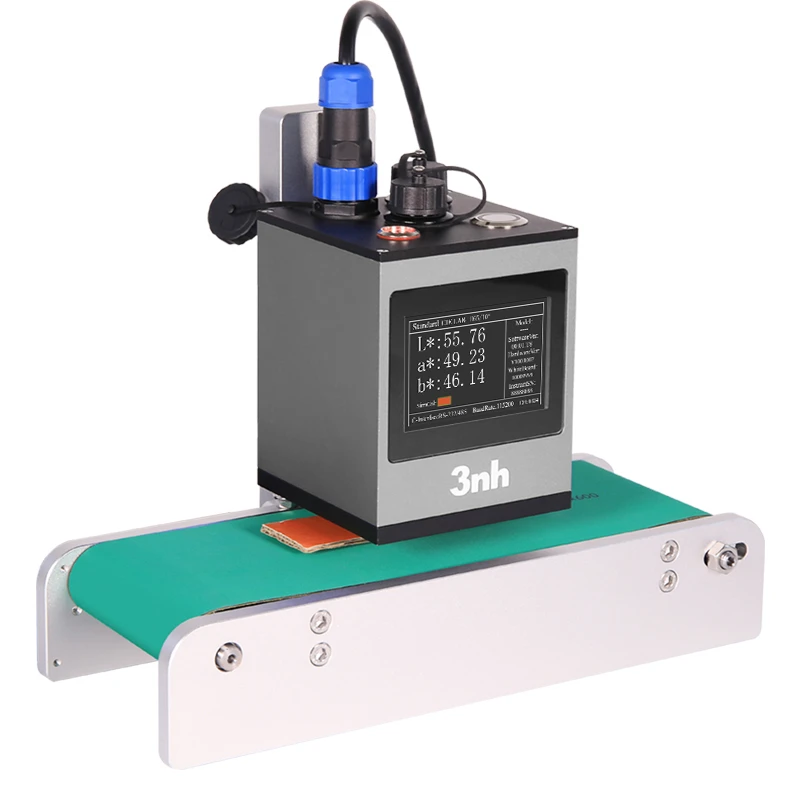

Rapid deployment: Modular design is compatible with mechanical arm and pipeline integration, supports one-button calibration and remote firmware upgrade, and reduces maintenance costs.



5. Application Area

It can be applied to the automatic production line requirements of food and beverage, cosmetics, printing, anodizing, coating, papermaking, automobile spraying line, textile production line, plastic production line and other industries, and can be directly installed on the assembly line or mechanical arm.

Real-time monitoring of product color, synchronous transmission of data, providing immediate feedback for product quality.



Product Parameter

YL70 series 45/0 Non-Contact Spectrophotometer

Product Model

YL70

Optical Geometry

45/0(45 circular uniform illumination 0 reception);
Meet the standards of CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E 1164, DIN 5033 TEIL 7.

Features

The non-contact test between the test probe and the sample to be tested realizes the non-contact precise color measurement of liquid, paste, powder and fragile surface. It is mainly used in accurate color measurement and quality control of automatic production line; The measurement time can be as fast as 0.11 seconds. It can communicate with other systems through 485 or USB, and is equipped with upper computer software.

Light Source

Full spectrum LED light source

Splitting Mode

Nano-integrated spectral device

Sensor

Silicon photodiode array (20 groups in two rows)

Wavelength Range

400~700nm, 10nm output

Display Accuracy

0.01

Reflectivity Resolution

0.01%

Reflectance Range

0~200%

Measuring Aperture

Φ8mm

Non-contact Distance

7.5mm(±0.15mm)

Sample Height

The thickness is not limited, and only the test probe is used.

Measurement and Observation Mode

Visual

Measuring Time Interval

1S

Measurement Mode

Instrument trigger or online control trigger

Color Space

CIE LAB,XYZ,LCh,CIE LUV

Color Difference Formula

ΔE*ab

Other Chromaticity Indexes

/

Observer Angle

2°/10°

Illuminants

A,C,D50,D65,D75

Displayed data

Data, sample chromaticity value, color difference value/graph, color simulation, qualified/unqualified results, display tolerance can be set.

Measuring Time

The fastest time is 0.11 seconds (about 0.2 seconds)

Calibrate

Intelligent automatic calibration

Waterproof Grade

IP66

Repeatability

In the optimal test mode (when the single measurement time is 1.0 seconds): Chromaticity value: within ΔE*ab 0.05 (after preheating, measure the average value of the whiteboard for 30 times at intervals of 5s).

Inter-station Difference

/

Accuracy Assurance

Ensure that the first-level measurement is qualified

Measurement Method

Single measurement, average measurement (2~99 times)

Dimension

100*100*140mm

Weight

About 1400g

Power Supply

DC 24V,3A power adapter supplies power.

Illuminant Life Span

More than 3 million measurements in 5 years

Display

TFT true color 3.5inch

Interface

USB, RS485, RS232, Ethernet, external trigger, analog signal output.

Language

Simplified Chinese, traditional Chinese, English

Operating Environment

0~40℃, 0~85%RH (no condensation), altitude: below 2000m m

Storage Environment

-20~50℃, 0~85%RH (no condensation)

Standard Accessory

Power adapter, manual, USB cable, RJ45 network cable, RS485 multi-computer communication cable, RS232 communication cable, standard calibration board and black calibration box.

Note:

It is subject to change without prior notice.



Our Valued Clients

  • Client jaquar
  • customer tatasky logo
  • customer pidilite logo
  • Clients honda logo
  • philips
  • partner vishay logo
  • customer bell logo
  • customer cubic logo

FAQs About  Benchtop Spectrophotometers

When detecting color differences, the first factors to consider when selecting a light source include its stability, directionality, lifespan, and the effectiveness of the ultimately obtained spectral curve. The illuminant of a colorimeter is a fixed bulb, such as a tungsten lamp，LED light or a long-life xenon lamp. However, for the same color sample, the results displayed by the instrument vary under different light sources. This is because different light sources cause different absorption and reflection of light on the sample, leading to differences in how both the human eye and the instrument perceive the color.

In general, the D65 light source is used in the application of coil steel inks for construction. The D65 light source is equivalent to average daylight. Most coil steel inks for construction are used outdoors, and sunlight is regarded as the standard light source in outdoor environments. For household appliance coil steel inks, due to their usage characteristics, they are mostly used indoors. Therefore, the A standard light source is adopted for color measurement of samples based on indoor lighting conditions. The A light source is a carefully specified tungsten light source. Other light sources, such as fluorescent light sources, can be used in many types of applications. For example, some textile factories use fluorescent light sources. Therefore, a reasonable light source should be selected as the mutually recognized measurement method based on actual usage conditions and user requirements. Once agreed upon by both parties, color measurement must be conducted under the same conditions. This helps reduce unnecessary systematic errors and human errors, achieving the optimal consistency in color measurement.

The 3nh high-precision spectrophotometric colorimeter adopts a combined LED light source with long lifespan and low power consumption, which includes UV (ultraviolet) and UV-excluded options. This design can meet the color difference detection needs of different users and supports the selection of multiple light source modes.

A colorimeter is sufficient for basic, routine color checks, while a spectrophotometer is needed for precise, comprehensive color analysis—here’s the clear breakdown:

When a Colorimeter is Sufficient

  1. Simple color matching needs: Ideal for checking if a sample matches a predefined standard (e.g., basic paint batches, plastic parts with solid colors).

  2. Consistent lighting conditions: Works well when measurements are done under fixed, standard light sources (no need to account for varied light effects).

  3. Cost-sensitive, high-volume tasks: Perfect for production lines requiring fast, low-cost color checks without advanced data analysis.

When to Use a Spectrophotometer

  1. Precise color quantification: Necessary for measuring Lab values (lightness, red-green, yellow-blue axes) or detecting subtle color deviations (critical for automotive coatings, high-end textiles).

  2. Complex color analysis: Required for metallic/pearlescent finishes, transparent materials, or samples with gloss/texture variations.

  3. Compliance and documentation: Essential when precise color data (spectral curves) is needed for quality audits, regulatory compliance, or brand color standardization.


Always a pre-production sample before mass production; Always final Inspection before shipment;

Many people might answer "with the human eye", but this is actually not comprehensive. The human eye cannot accurately distinguish the colors of similar objects. Furthermore, everyone's perception of color varies. Therefore, people have developed color measurement tools based on the CIE color system.

Currently, there are two main types of commonly used colorimeters, as follows:

Colorimeter - It is an ideal choice for quality control (QC) on production lines, used to detect color differences.

Spectrophotometer - It is suitable for the development of color characteristics and color analysis in laboratories.

For premier glass quality grading (color, transmittance, haze, coating uniformity, architectural/auto/optical glass), the top 3nh & industry-leading instruments are:


1. 3nh YS6060 Benchtop (Best Lab Accuracy)

  • d/8° integrating sphere, 360–780nm, UV adjustable

  • Dual mode: reflectance + transmission

  • ΔE*ab ≤ 0.015, IIA ≤ 0.2, haze measurement

  • Multi-apertures (Φ4/8/15/25.4mm)

  • Ideal: colored glass, coated glass, optical glass, lab R&D


2. 3nh TS8560 Benchtop (Ultra-High Precision)

  • d/8° sphere, SCI/SCE, UV control

  • ΔE*ab ≤ 0.01 (repeatability)

  • Large transmission compartment

    Best for: high-end architectural glass, Low-E coated glass



3. 3nh ST70 Portable (Production/Field)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Handheld, fast, non-destructive

    Best for: line checks, incoming glass, on-site grading



4. 3nh NS810 Portable (Cost-Effective)

  • 45/0 geometry, ΔE*ab ≤ 0.04

  • Touchscreen, rugged

  • Best for: solid-color glass, routine QC

Short Recommendation

  • Top lab: YS6060

  • Ultra-precision: TS8560

  • Portable production: ST70

  • Economical QC: NS810

All measure color consistency, transmittance, haze & coating uniformity for glass quality grading.
