Instrument Geometry – Reflect: D/8, Transmittance: D/0; SCI/SCE, Haze Measurement
Light Source – Combined LED Light, UV light source
Sensor – 256 Double Array CMOS Image Sensor
wavelength Range – 360nm to 780nm
Precision – High repeatability (ΔEab ≤0.014) and inter-instrument agreement (ΔEab ≤0.14)
Measuring Aperture – XLAV Φ25.4mm/Φ30mm; LAVΦ15mm/Φ18mm; MAVΦ8mm/Φ10mm; SAVΦ4mm/Φ6mm

Elevate your color analysis to unmatched accuracy, TS8520 designed for versatility in lab workflows, it supports a wide array of sample types—from liquid solutions and powdered materials to solid coatings, textiles, and plastic specimens. Laboratory-grade precision For laboratories, research institutions, and quality control centers that demand uncompromising color measurement precision, our High-precision laboratory Benchtop Spectrophotometer stands as the gold standard of analytical instrumentation.

Instrument Geometry – Reflect: di:8°; Transmittance: di:0°; Haze(ASTM D1003)
Light Source – Combined full spectrum LED light source, UV light source
Sensor – 256 Image Element Double Array CMOS Image Sensor
wavelength Range – 360~780nm
Measurement Precision – Good repeatability (ΔEab ≤0.05) and inter-instrument agreement (ΔEab ≤0.15)
Measuring Aperture – Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Customized Configuration caliber

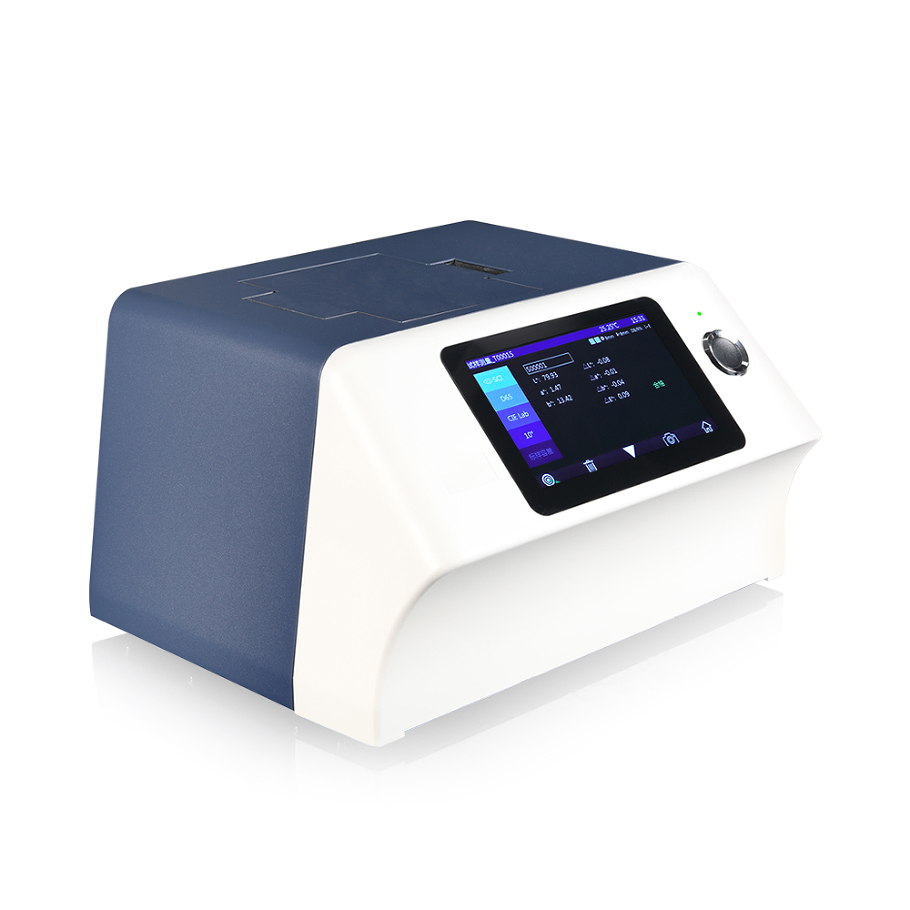

YS6060 used in many industries for the accurate and traceable measurement of colour, enabling precise quantification of color parameters like hue, saturation, and brightness. With very stable and precise color measurement, large storage and powerful PC software all makes YS6060 ideal for color analysis within R&D and laboratory environments.

Instrument Geometry – Reflect: D/8, Transmittance: D/0; SCI/SCE
Light Source – Combined LED Light, UV light source, Xenon Lamp
Sensor – 256 Double Array CMOS Image Sensor
wavelength Range – 380nm to 780nm
Precision – Highest repeatability (ΔEab ≤0.01) and inter-instrument agreement (ΔEab ≤0.1)
Measuring Aperture – XLAV Φ25.4mm/Φ30mm; LAVΦ15mm/Φ18mm; MAVΦ8mm/Φ10mm; SAVΦ4mm/Φ6mm

Higher-end Laboratory Benchtop Grating Spectrophotometer, TS8560 features a dual-array CMOS image sensor for high sensitivity and a broad spectral response, ensuring precise measurements. Equipped with a 10.5-inch independent rotating screen, it offers user-friendly operation, analyze, formulate and effectively control the color and appearance of solid products, liquids, pastes, powders, pills and granules in a simplified and guided process.

Instrument Geometry – Reflect: D/8, Transmittance: D/0; SCI/SCE
Light Source – Combined LED Light, UV light source, Xenon Lamp
Sensor – 256 Double Array CMOS Image Sensor
wavelength Range – 380nm to 780nm
Precision – Highest repeatability (ΔEab ≤0.015) and inter-instrument agreement (ΔEab ≤0.2)
Measuring Aperture – XLAV Φ25.4mm/Φ30mm; LAVΦ15mm/Φ18mm; MAVΦ8mm/Φ10mm; SAVΦ4mm/Φ6mm

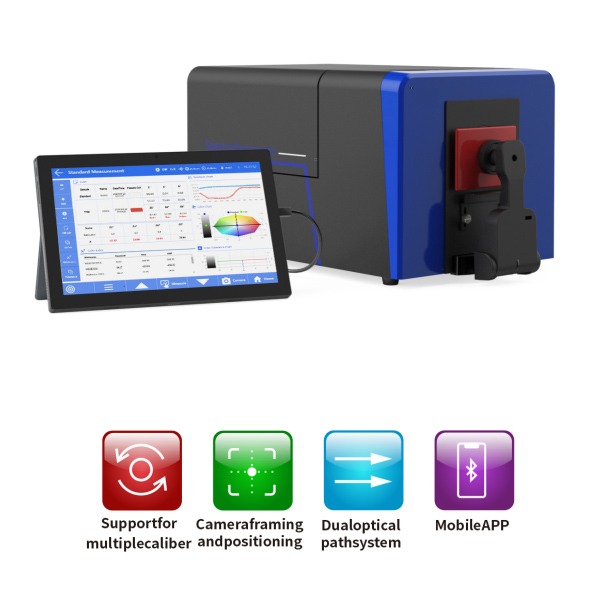

The TS8500 bench-top color measuring instrument with indices like APHA/Hazen/Pt-Co and Gardner Index. It can measure a variety of sample in forms like solid, powder, paste, grain & liquids, evaluate the color appearance and colour difference of opaque, transparent, and translucent samples. The measurement data of this instrument can maintain outstanding consistency with those of other competitive products in the United States, Japan, and Europe.

Instrument Geometry – Transmittance: D/0;
Light Source – Combined full spectrum LED light source
Sensor – 40 Double Array Silicon Photodiode Sensor
wavelength Range – 380nm to 780nm
Precision – Highest repeatability (ΔEab ≤0.01) and inter-instrument agreement (ΔEab ≤0.2)
Measuring Aperture – Transmission: Φ 10 mm

Professional Liquid Spectrophotometer Instrument, 3nh liquid spectrophotometer is a professional instrument designed for analyzing liquid samples' optical properties. It accurately measures parameters like absorbance, transmittance, and color values across a broad wavelength range, based on the Lambert-Beer law. With the proven spectrophotometry principle, the TS4020 provides color measurement and quality control of pharmaceutical products, chemicals, and petrochemicals.

Instrument Geometry – D/8, SCI
Light Source – Combined full spectrum LED light source
Sensor – 256-pixel dual-array CMOS image sensor
wavelength Range – 400nm to 700nm
Measurement Precision – Good repeatability (ΔEab ≤0.03) and inter-instrument agreement (ΔEab ≤0.2)
Measuring Aperture – Φ20mm (Φ10mm can be customized)

Elevate Color Precision for Industry-Leading Quality Assurance, YL4668 Spectrophotometer is a high-precision device for accurate color measurement and analysis, Professional-Grade Solution for Reflective Color Measurement & Matching. YL4668 inline spectrophotometer for color is simply a device that is mounted directly over or beside a production line. Spectrophotometers are placed inline for the detection of color as the material is passing, be it pellets, sheets, films or liquids. Each spectrophotometer internally illuminates the surface with controlled light and subsequently, measures the reflected spectrum.

Instrument Geometry – D/8, SCI
Light Source – Combined full spectrum LED light source
Sensor – 256-pixel dual-array CMOS image sensor
wavelength Range – 400~700nm, 10nm output
Measurement Precision – Very good repeatability (ΔEab ≤0.02) and inter-instrument agreement (ΔEab ≤0.2)
Measuring Aperture – Φ20mm (Φ10mm can be customized)

This non-contact color sensor is specially designed for industrial applications. It can measure colors in intelligent manufacturing systems in real time, meeting the requirements for high cleanliness and automation. Real-time reflection spectra and chromaticity data ensure product color consistency, thereby enhancing the enterprise's competitiveness. The integration of YL3160 with industrial production lines and robotic systems enables automated and non-destructive seal monitoring.

Instrument Geometry – D/8, SCI/SCE
Light Source – Combined full spectrum LED light source, UV light source
Sensor – 40 groups Silicon photodiode array
wavelength Range – 400~700nm
Measurement Precision – Good repeatability (ΔEab ≤0.05) and inter-instrument agreement (ΔEab ≤0.15)
Measuring Aperture – Φ30mm/Φ25.4mm

The 3nh TS8290 spectrophotometer is a classic color measurement instrument renowned for its reliability and simplicity. It provides quantifiable spectral measurements of the reflectivity of objectsWhen strict inter-instrument delta E (ΔE) is required, benchtop spectrophotometers are an ideal choice. Threenh Technology's portable integrating sphere benchtop Spectrophotometer TS8290 enable precise color management and process control.

Instrument Geometry – D/8, SCI/SCE
Light Source – Combined full spectrum LED light source
Sensor – 40 groups Silicon photodiode array
wavelength Range – 400~700nm
Measurement Precision – Good repeatability (ΔEab ≤0.0025) and inter-instrument agreement (ΔEab ≤0.2)
Measuring Aperture – MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm

The 3NH reference-grade benchtop TS8210 spectrophotometer is the newest generation of benchtop color measuring instruments, incorporating an improved integrated circuit technology in the measurement instrument design. The TS82 Series spectrophotometer from 3NH is the most powerful, most effective color matching tool available today. a revolutionary color measuring and process control device.
