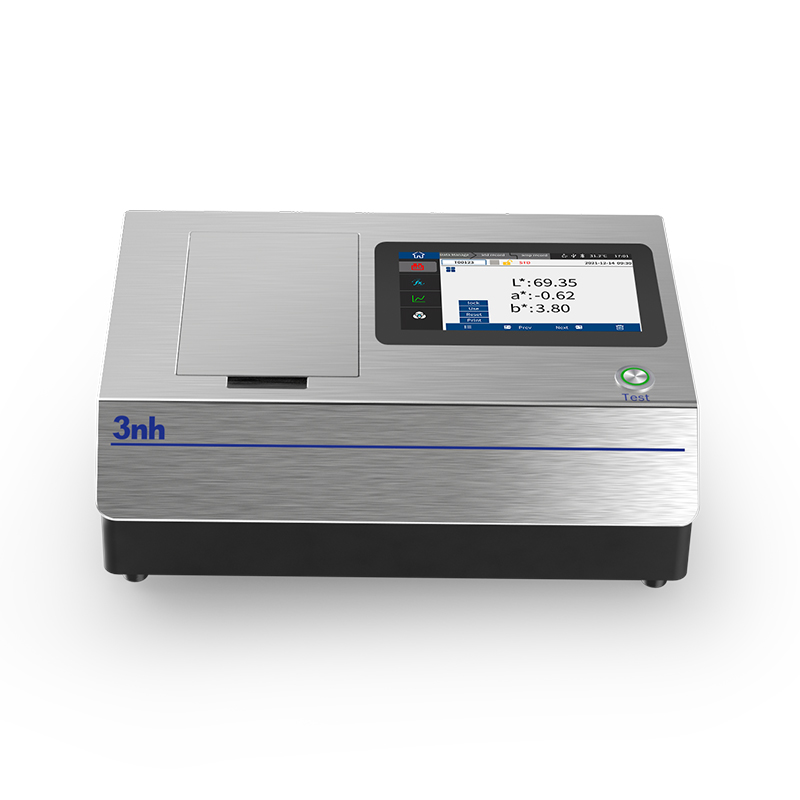

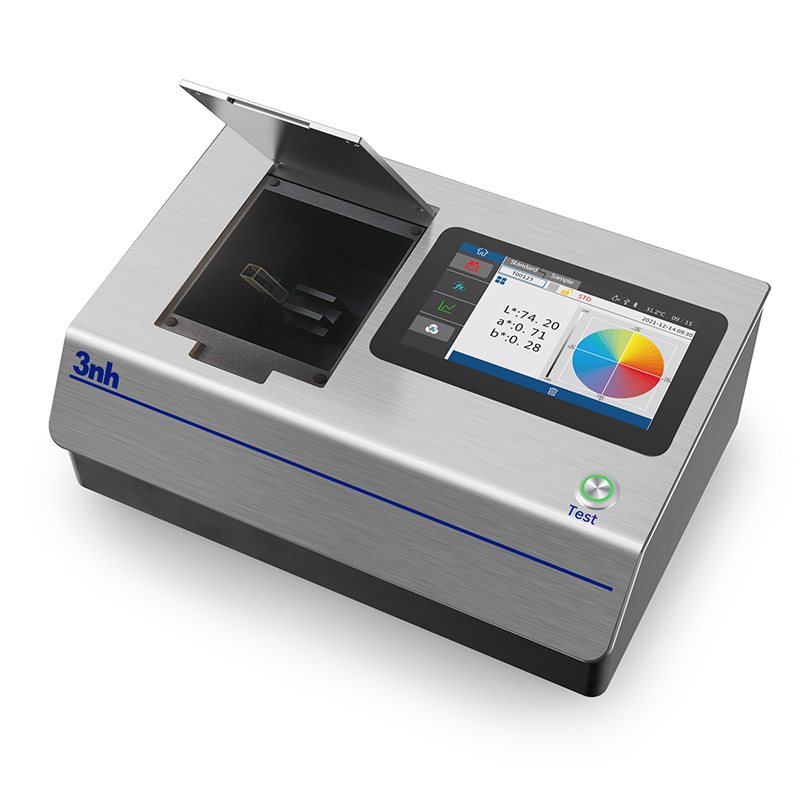

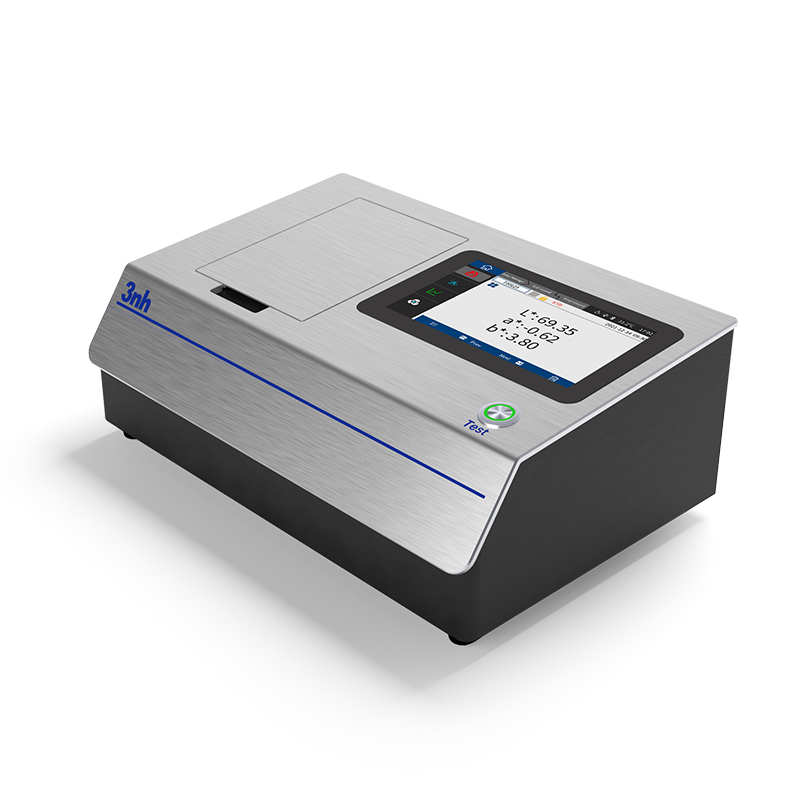

TS4020 Liquid Spectrophotometer

Professional Liquid Spectrophotometer Instrument

3nh liquid spectrophotometer is a professional instrument designed for analyzing liquid samples' optical properties. It accurately measures parameters like absorbance, transmittance, and color values across a broad wavelength range, based on the Lambert-Beer law.


Key Highlights

  • User-friendly Operation

  • Multiple Measurement Modes

  • Inter - instrument Error Control (ΔE * AB≤0.2)

  • Chromaticity value: within ΔE*ab 0.01

  • Reliable data support for quality control and research

  • Application in chemical analysis, pharmaceutical testing, food safety, and environmental monitoring

TS4020 Liquid Spectrophotometer Instructions Operating Manual TS4020 Liquid Spectrophotometer PDF
This TS4020 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

This practical benchtop liquid spectrophotometer with sleek design by 3nh offers precise and reliable measurements: with the proven spectrophotometry principle, the TS4020 provides color measurement and quality control of pharmaceutical products, chemicals, and petrochemicals.

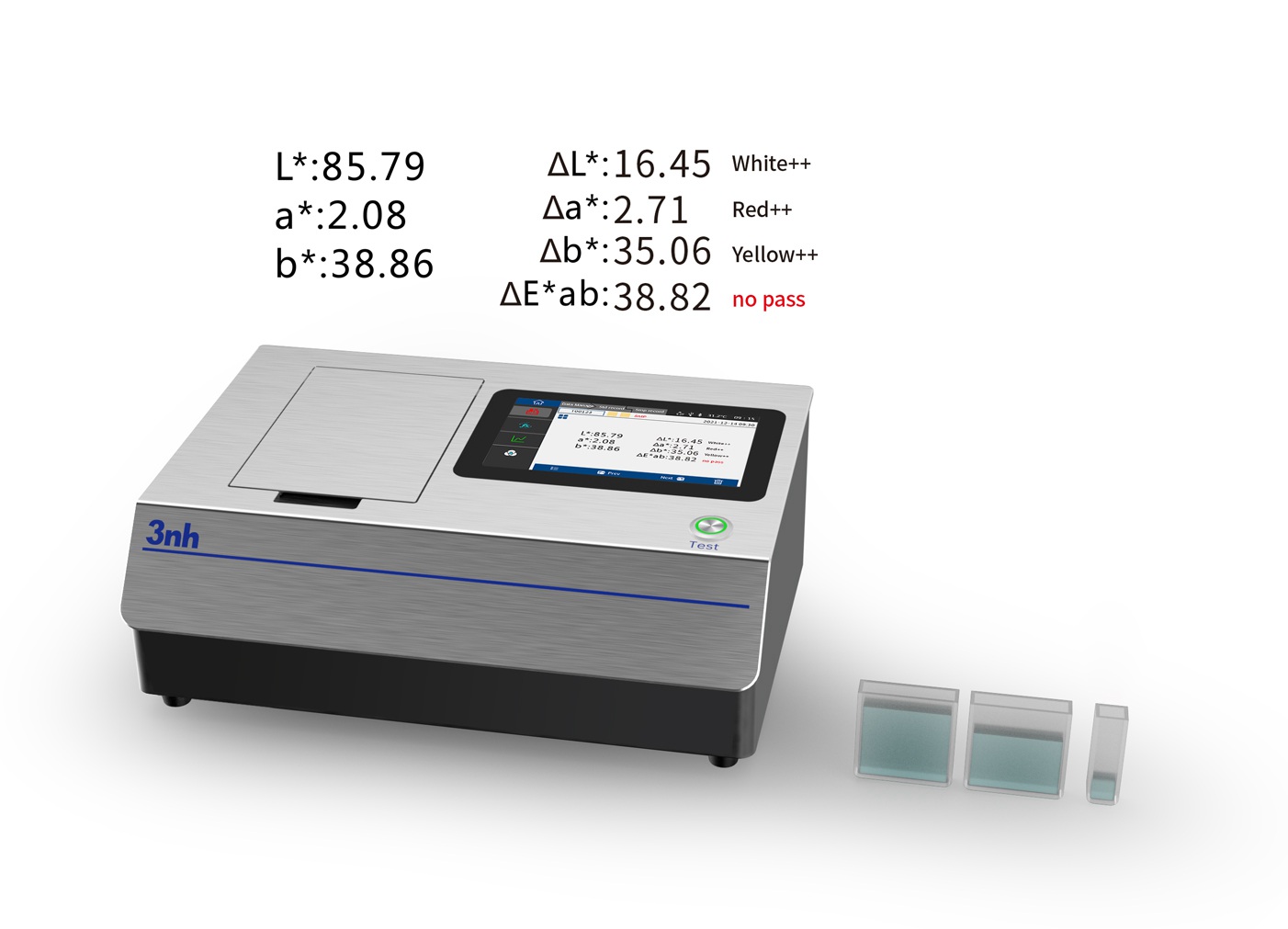

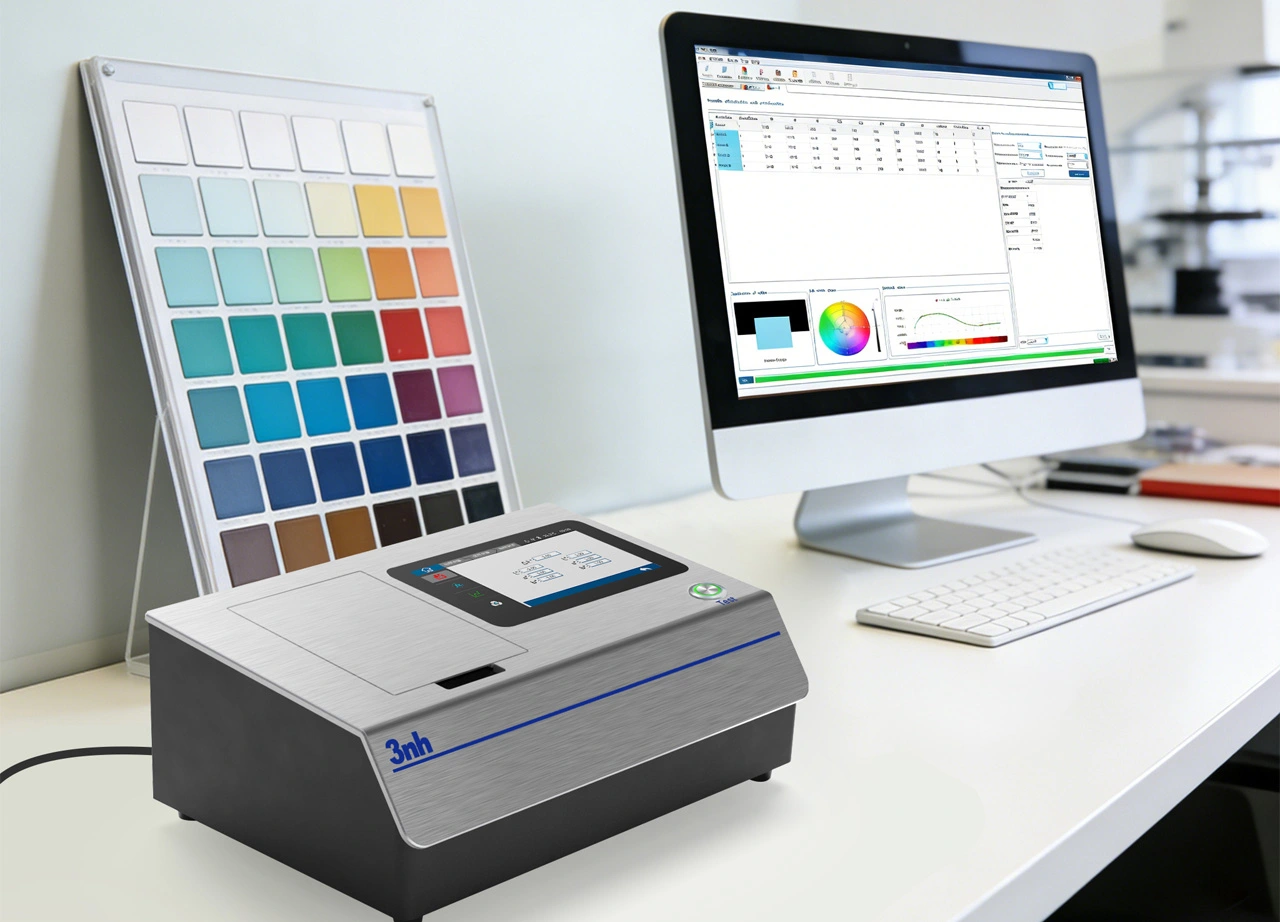

3nh TS4020 liquid spectrophotometer for color measurement



The TS4020 liquid spectrophotometer is a high-precision color analysis tool designed specifically for liquid chromaticity measurement using innovative core technology by 3nh. Adopting a D/0 optical structure, equipped with a full band LED light source and high-performance testing system, it provides a variety of chromaticity indicators, including transmittance, chromaticity, color difference, platinum cobalt index, Gardner, Saybolt index, petroleum color code, pharmacopoeia chromaticity, etc. It supports micro transmission measurement and has fast measurement speed. Widely used for chromaticity measurement needs in fields such as chemical industry, food and beverage, petrochemical industry, pharmaceutical industry, etc.




Instrument Features of TS4020 Liquid spectrophotometer:

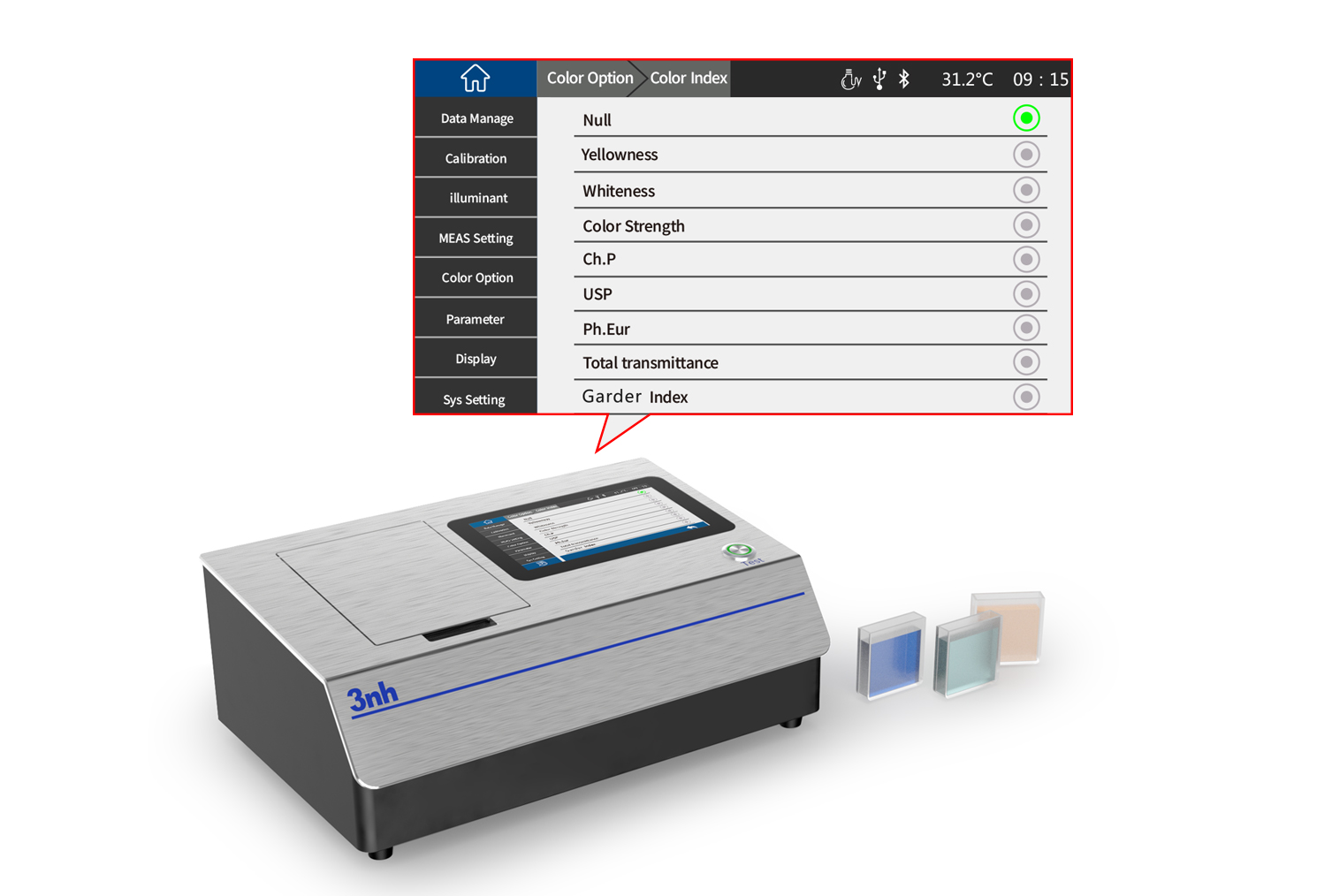

Rich chromaticity indicators

In addition to commonly used color indicators, we can also provide color indicators such as transmittance, petroleum color code (ASTM D1500), platinum cobalt index, Gardner index, Saybolt index, pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color), etc., to meet the diverse industry needs.

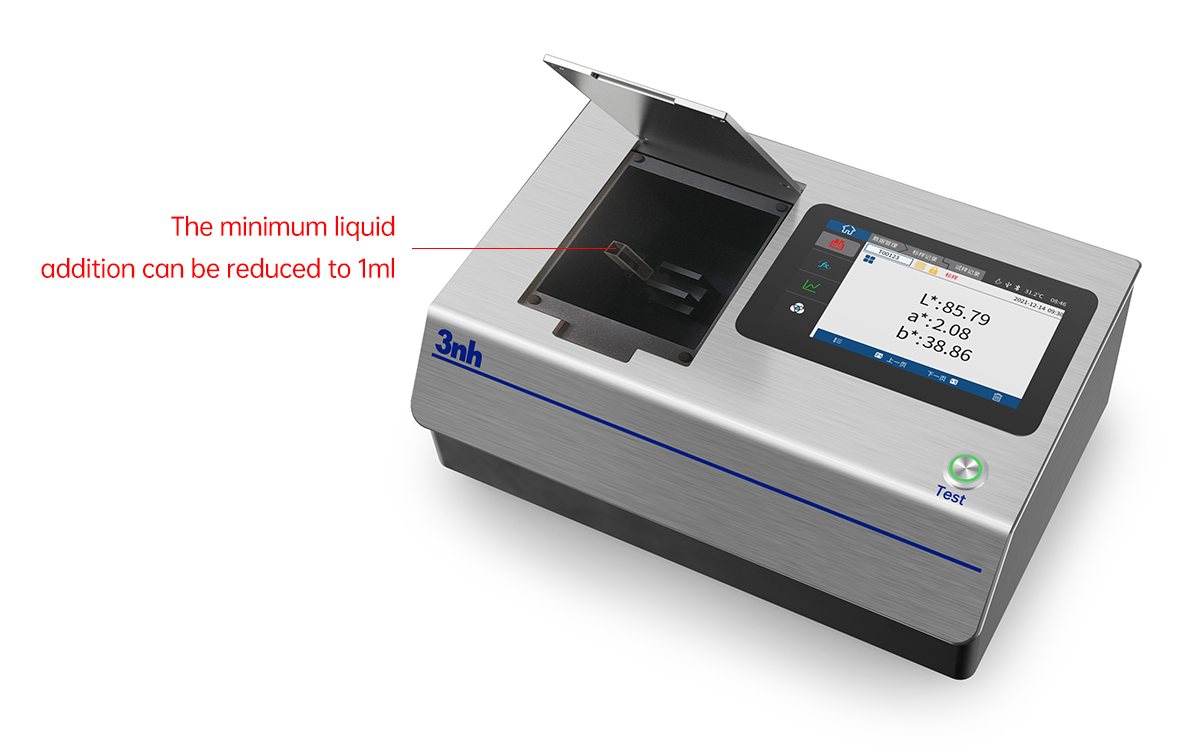

Support micro transmission measurement

By adopting more precise optical design, the transmission direction of light can be accurately controlled, and the minimum liquid addition can be reduced to 1ml, achieving micro transmission measurement.

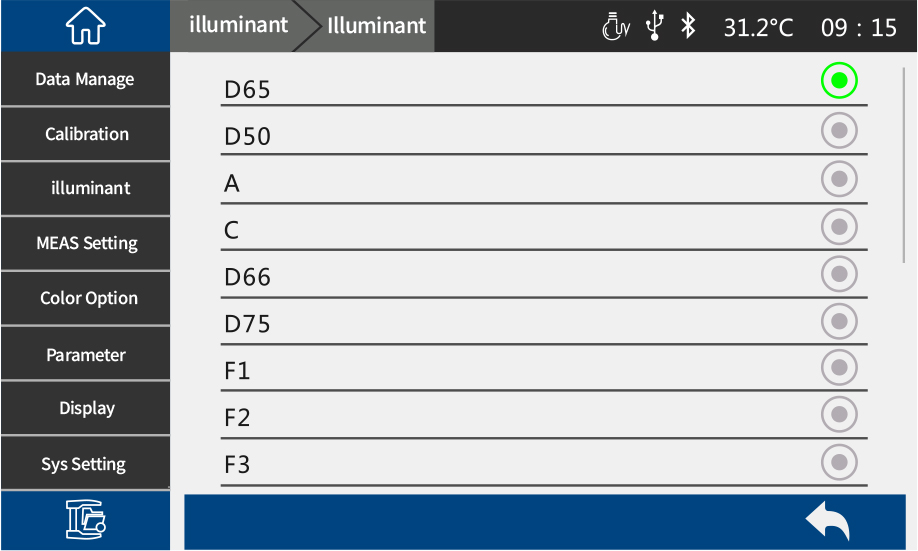

Multivariate light source simulation


Built in a series of standard light sources recognized by the International Commission on Illumination to ensure accurate color measurement of your product under different light sources.

4_ Multivariate light source simulation.jpg


Excellent repeatability and inter errors

The repeatability spectral transmittance is within 0.05%, the chromaticity value is within 0.01, and the inter errors is within 0.2, ensuring high consistency of measurement results between multiple devices and providing quality control support for large-scale production.

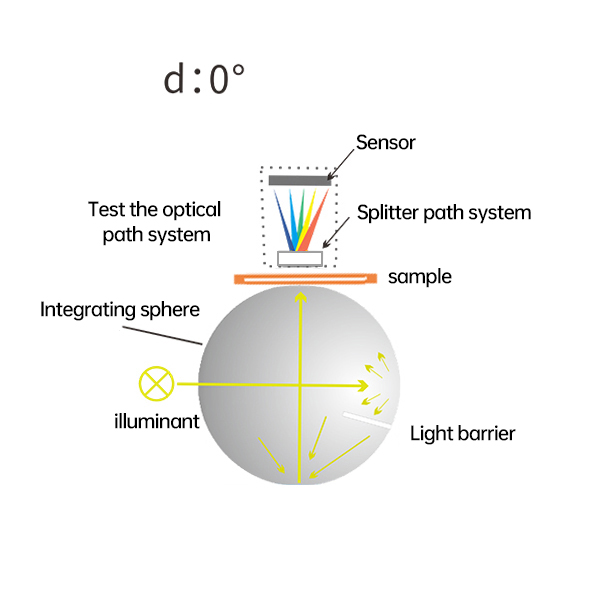

D/0 Geometric Optical Structure


D/0 geometric optical structure can provide more comprehensive chromatic analysis, ensuring that your product meets quality standards: ASTM D1003/1044, CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ASTM E308, DIN5033 Teil7





TS4020_6_ D0_Geometric_Optical_Structure.jpg

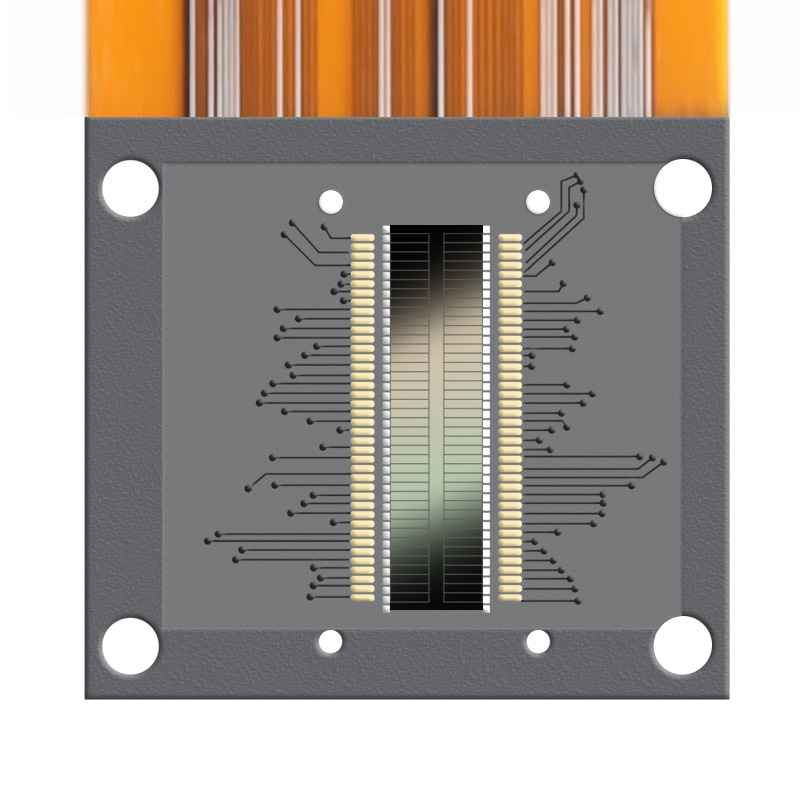

High performance dual array sensors


Equipped with high-performance silicon photodiode dual 40 array sensors, it can ensure measurement speed and accuracy, and improve work efficiency.




TS4020_8_ High_performance_dual_array_sensors.jpg

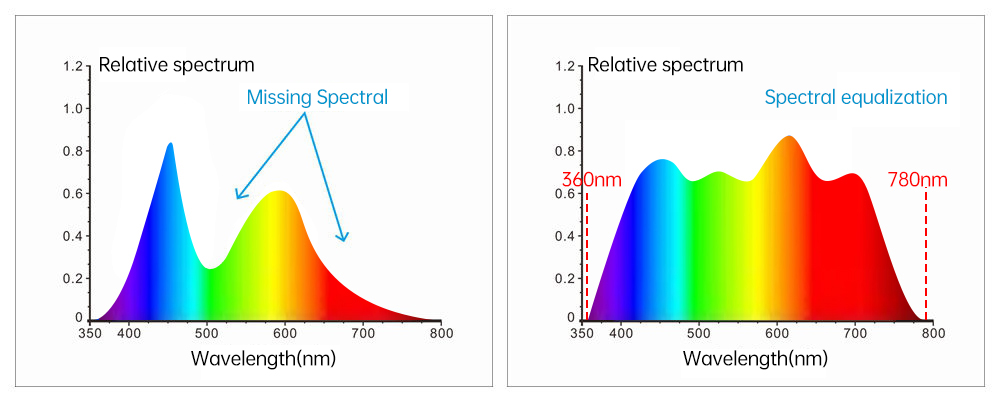

Combination full spectrum LED light source

The use of a combined full spectrum LED light source as the illumination source covers the wavelength range of 360-780nm, ensuring high stability of the test.

ts4020_7_ Combination_full_spectrum_LED_light_source.jpg

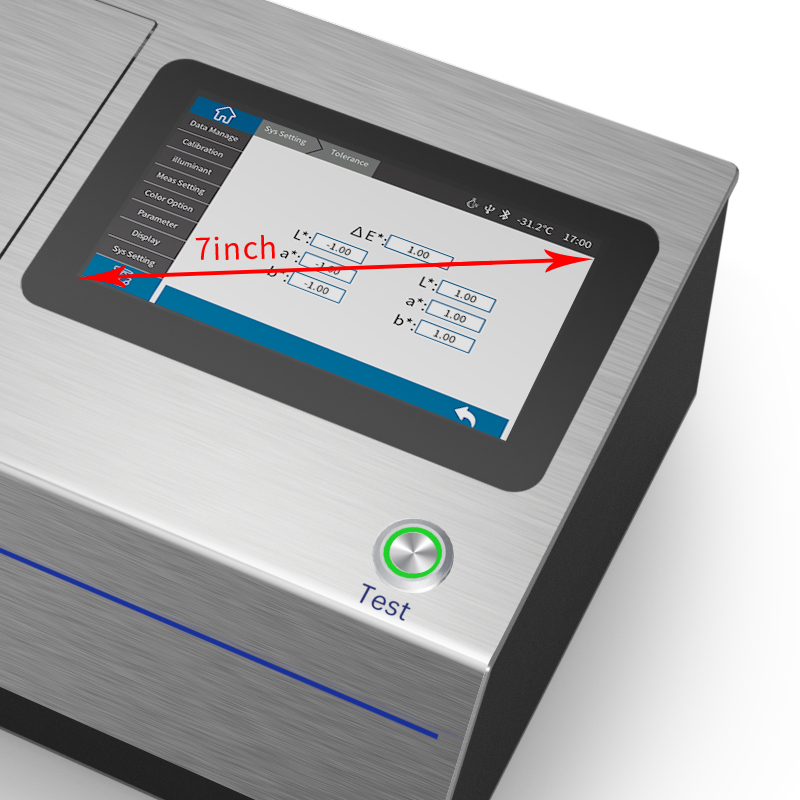

Powerful display and interaction capabilities

Equipped with a 7-inch true color capacitive touch screen and large screen navigation operation, it can display various chromaticity indicators such as spectra, color difference values/graphs, color simulation, and color offset, and achieve fast and accurate color analysis and judgment.

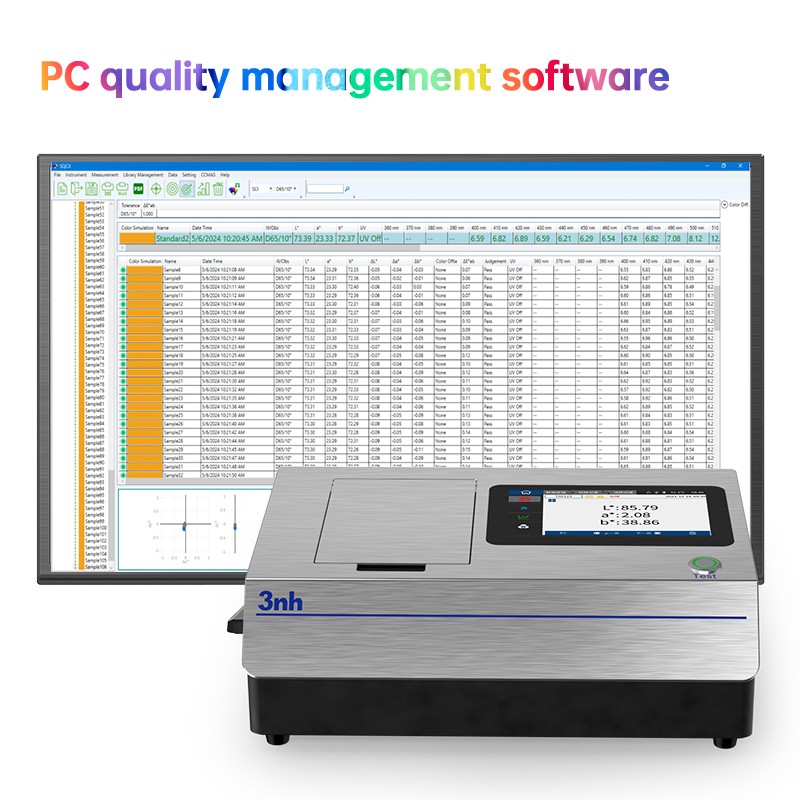

PC quality management software

Provide powerful analysis software, suitable for quality management in various industries, generate test reports based on user test results, and facilitate customer customization and management work.



Talk to a Color Solution Specialist



Specifications of TS4020 Liquid spectrophotometer:


ModelTS4020 Liquid spectrophotometer
IlluminationTransmission: D/0 (diffuse illumination, 0° Viewing); Approximately CIE15 stipulates 0/0 (parallel light illumination/0 degree reception); Comply with standards: ASTM D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM E308, DIN5033 Teil7
CharacteristicThe national standard pharmacopoeia color measurement, glass processing, plastic processing, film, display screen processing, packaging industry, liquid medicine analysis and other industries are widely used in color analysis and transmittance testing, supporting trace transmittance measurement.
Integrating sphere sizeΦ 40 mm
Light sourceCombined full spectrum LED light source
Spectral methodPlat grating spectrometer
SensorSilicon photodiode array (dual row 40 groups)
Wavelength range360 ~780 nm
Wavelength interval10nm
Half bandwidth5nm
Transmittance range0~200%
Measuring apertureTransmission: Φ 10 mm
Color SpaceCIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 ,CMYK ( the above parts are realized by the host computer)
Color difference formulaΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter),ΔE*CH
Other color indexesTransmittance T, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM E313), TI (ASTM E313, CIE/ISO), Metamerism index Mt, Staining Fastness,Color fastness,absorbance, APHA / Hazen / Pt-Co (Platinum-Cobalt Index), Gardner Index, Iron-Cobalt Index, Saybolt (Saybolt Index), ASTM D1500 color scale, Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, United States Pharmacopoeia), EBC (beer color), ICUMSA Color (sugar color)
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5 (a total of 41 light sources, the above part is realized by the host computer)
Displayed DataSpectrum/values, sample chromaticity value, color difference value/graph, chromaticity diagram, color simulation, pass/fail results, color offset
Measuring timeFast mode: about 0.8s
RepeatabilitySpectral transmittance: standard deviation within 0.05% ( 400 ~ 700nm : within 0.04%); Chromaticity value: within ΔE*ab 0.01 (after preheating correction, measured at intervals of 5S);
Inter-instrument ErrorΔE*ab within 0.2 (average value of 5 standard transmission color plates measured by the original manufacturer)
SizeLength x width x height = 370 x 300 x 200 mm
WeightAbout 9.6kg
Power supply modePowered by DC 24V/3A power adapter
Illuminant Life SpanMore than 3 million measurements in 5 years
DisplayTFT true color 7-inch, capacitive touch screen
InterfaceUSB, print serial port , Bluetooth
Data Storage1000 Standards, 10000 test samples
Audit trailSupport
Special FeaturesIntelligent zero calibration
LanguageSimplified Chinese, Traditional Chinese, English
Operating temperature range0~40°C (32~104°F)
Storage temperature range-20~50°C (-4~122°F)
Standard accessoriesPower adapter, manual, quality management software (download from official website), data cable, transmission blackboard, transmission test fixture assembly, 10mm cuvette, 50mm cuvette, micropore (4mm) transmission test fixture assembly

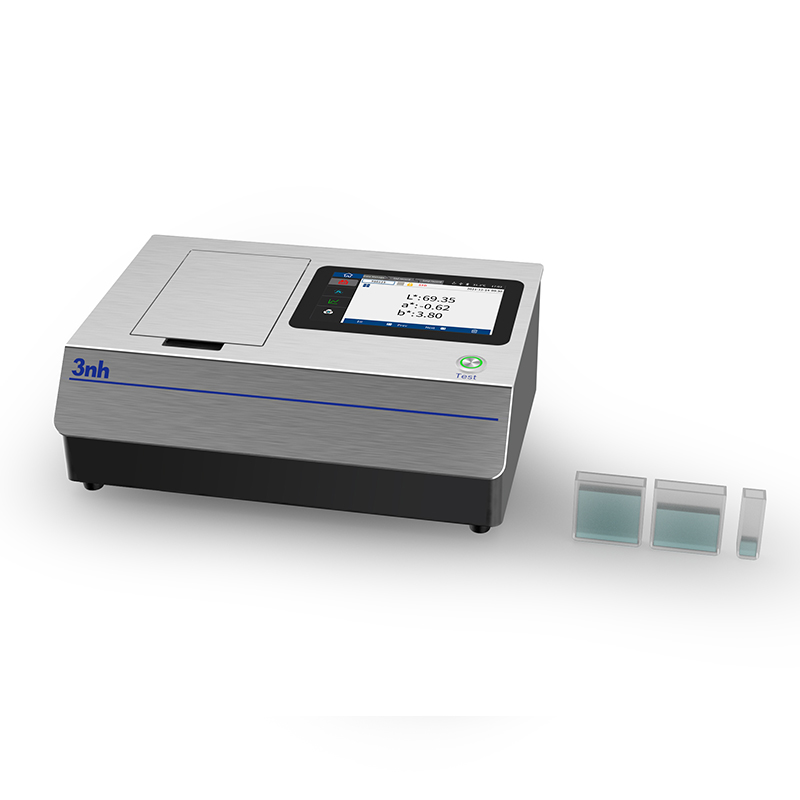

Optional accessoriesMicro printer, 30mm cuvette, 100mm cuvette
Note:The technical parameters are for reference only, please refer to the actual products sold.



Our Valued Clients

  • customer hms logo
  • Client mankind
  • philips
  • Client jaquar
  • customer bell logo
  • partner vishay logo
  • 3nh customer cadbury
  • customer tatasky logo

FAQs About TS4020 Benchtop Spectrophotometers

True color in chemistry is the color seen in a solution or compound in standardized conditions. It depends on electronic transitions in molecules, specifically absorption of a particular wavelength of light, and this depends on the structure of the compound.

Who are we? Threenh Technology: 22-Year Professional Color Measurement Solution Provider

Threenh Technology is a Chinese professional Measurement Instrument manufacturer with 22 years of industry experience, specializing in the field of color measurement and surface gloss detection. Integrating research and development, design, production, marketing, and sales, the company takes technological innovation as its core and is committed to providing global customers with high-precision and intelligent testing instruments as well as professional solutions.


A colorimeter is sufficient for basic, routine color checks, while a spectrophotometer is needed for precise, comprehensive color analysis—here’s the clear breakdown:

When a Colorimeter is Sufficient

  1. Simple color matching needs: Ideal for checking if a sample matches a predefined standard (e.g., basic paint batches, plastic parts with solid colors).

  2. Consistent lighting conditions: Works well when measurements are done under fixed, standard light sources (no need to account for varied light effects).

  3. Cost-sensitive, high-volume tasks: Perfect for production lines requiring fast, low-cost color checks without advanced data analysis.

When to Use a Spectrophotometer

  1. Precise color quantification: Necessary for measuring Lab values (lightness, red-green, yellow-blue axes) or detecting subtle color deviations (critical for automotive coatings, high-end textiles).

  2. Complex color analysis: Required for metallic/pearlescent finishes, transparent materials, or samples with gloss/texture variations.

  3. Compliance and documentation: Essential when precise color data (spectral curves) is needed for quality audits, regulatory compliance, or brand color standardization.


For premier glass quality grading (color, transmittance, haze, coating uniformity, architectural/auto/optical glass), the top 3nh & industry-leading instruments are:


1. 3nh YS6060 Benchtop (Best Lab Accuracy)

  • d/8° integrating sphere, 360–780nm, UV adjustable

  • Dual mode: reflectance + transmission

  • ΔE*ab ≤ 0.015, IIA ≤ 0.2, haze measurement

  • Multi-apertures (Φ4/8/15/25.4mm)

  • Ideal: colored glass, coated glass, optical glass, lab R&D


2. 3nh TS8560 Benchtop (Ultra-High Precision)

  • d/8° sphere, SCI/SCE, UV control

  • ΔE*ab ≤ 0.01 (repeatability)

  • Large transmission compartment

    Best for: high-end architectural glass, Low-E coated glass



3. 3nh ST70 Portable (Production/Field)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Handheld, fast, non-destructive

    Best for: line checks, incoming glass, on-site grading



4. 3nh NS810 Portable (Cost-Effective)

  • 45/0 geometry, ΔE*ab ≤ 0.04

  • Touchscreen, rugged

  • Best for: solid-color glass, routine QC

Short Recommendation

  • Top lab: YS6060

  • Ultra-precision: TS8560

  • Portable production: ST70

  • Economical QC: NS810

All measure color consistency, transmittance, haze & coating uniformity for glass quality grading.


When detecting color differences, the first factors to consider when selecting a light source include its stability, directionality, lifespan, and the effectiveness of the ultimately obtained spectral curve. The illuminant of a colorimeter is a fixed bulb, such as a tungsten lamp，LED light or a long-life xenon lamp. However, for the same color sample, the results displayed by the instrument vary under different light sources. This is because different light sources cause different absorption and reflection of light on the sample, leading to differences in how both the human eye and the instrument perceive the color.

In general, the D65 light source is used in the application of coil steel inks for construction. The D65 light source is equivalent to average daylight. Most coil steel inks for construction are used outdoors, and sunlight is regarded as the standard light source in outdoor environments. For household appliance coil steel inks, due to their usage characteristics, they are mostly used indoors. Therefore, the A standard light source is adopted for color measurement of samples based on indoor lighting conditions. The A light source is a carefully specified tungsten light source. Other light sources, such as fluorescent light sources, can be used in many types of applications. For example, some textile factories use fluorescent light sources. Therefore, a reasonable light source should be selected as the mutually recognized measurement method based on actual usage conditions and user requirements. Once agreed upon by both parties, color measurement must be conducted under the same conditions. This helps reduce unnecessary systematic errors and human errors, achieving the optimal consistency in color measurement.

The 3nh high-precision spectrophotometric colorimeter adopts a combined LED light source with long lifespan and low power consumption, which includes UV (ultraviolet) and UV-excluded options. This design can meet the color difference detection needs of different users and supports the selection of multiple light source modes.

Related Benchtop Spectrophotometers You May Also Like

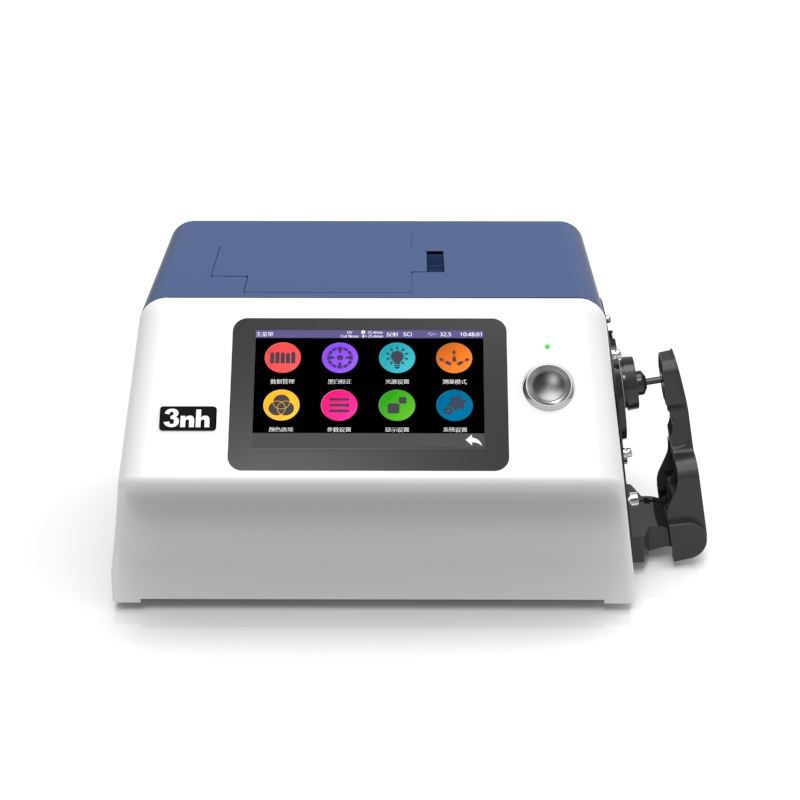

Benchtop Spectrophotometer YS6060
