YS6080 Pulsed Xenon lamp Benchtop Spectrophotometer

Unrivaled Precision for Laboratory-Grade Color Analysis

Elevate Color Quality with Stable Xenon Illumination & Benchtop Performance. YS6080 Color Spectrophotometer is a high-tech device analyzing light’s spectral composition to measure color accurately. Using diffraction gratings or prisms, it splits light into wavelengths, enabling precise quantification of color parameters like hue, saturation, and brightness.


Key Highlights

  • 360nm-780nm Xenon Lamp, 400nm/420nm/460nm cut-off Xenon Lamp

  • High accuracy: Repeatability up to ΔE*ab 0.12

  • Inter - instrument Error Control (ΔE * AB≤0.12)

  • 7" TFT Capacitive Screen-touch Display

  • Data Storage: Standard 4000 Pcs, Sample 50000 Pcs

  • Ideal for color analysis within R&D and laboratory environments

YS6080 Pulsed Xenon lamp Benchtop Spectrophotometer Instructions Operating Manual YS6080 Pulsed Xenon lamp Benchtop Spectrophotometer PDF
This YS6080 Pulsed Xenon lamp Benchtop Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Professional Solution for Accurate Color Matching & QC


YS6080 is a benchtop grating spectrophotometer which is developed by 3nh independently with independent intellectual property. YS6080 has many features, like 7 inches TFT capacitive touch screen display, full illuminants, reflective d/8 and transmissive d/0 geometry (including or excluding UV). With very stable and precise color measurement, large storage and powerful PC software all makes YS6080 ideal for color analysis within R&D and laboratory environments.

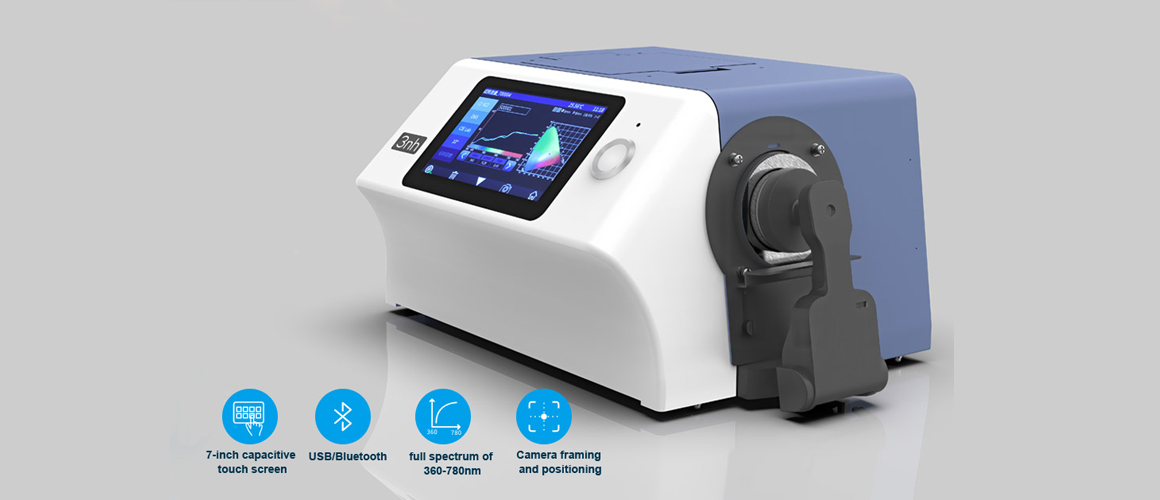

 Advanced_Benchtop_Grating_Colorimeter_ys60801

Features



1, High configuration of hardware: 7 inches TFT Color Capacitive Touch-screen Display; Bluetooth 2.1; Concave Grating.

2, Double Array 256 Image Element CMOS Sensor; Long life-span stable xenon lamp.

3, With reflective and transmissive spectrum, accurate Lab value, good to calculate color formula and do precise color transmission.

4, Auto identify measuring aperture. Freely switchable between 3 measuring apertures: Φ 25.4mm/8mm/4mm. Users also can customize apertures.

5, Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision.

6, Wavelength range 360nm – 780nm. Built-in 400nm/420nm/460nm cut off Xenon lamp, more professional in UV measurement.

7, Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable.

8, Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ requirement.

9,A variety of optional accessories: Reflection sample holding tool, transmission fixture, micro 4mm aperture transmission test components, instrument inversion test components, applicable to more working conditions.

10, Big capacity data storage, for 20000 pieces test result.

11, Built-in camera locating.

12, More powerful extended functions at the PC software.



Application Industry



YS6080 benchtop spectrophotometer is used to do precise color analysis and transmission in laboratories. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, science institutes, laboratories.


YS6080 Optional Accessories

Meet more needs for customers

The instrument is equipped with a variety of optional accessories: Micro printer, instrument inverted test fixture, petri dish, Meet customer multi-sample measurement.


Petri dish

It can be used to test liquid reagents, sauces (such as ketchup, paint), powders (such as coffee), color masterbatches, etc.


Test Fixture Assembly

Microhole (4mm) transmission test fixture assembly, Make sure the petri dish is fixed for measurement.



Film fixture

Easy film sample measurement.

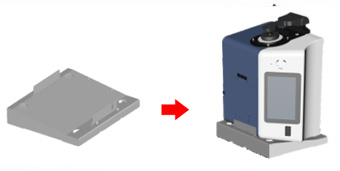

Instrument upside down test fixture

Meet more sample measurement needs; Measurement is more convenient and flexible.

Threenh: Your Partner in Precision and Innovation

Here at Threenh, we know our clients are looking for color measurement equipment that performs consistently and makes good business sense. Our focus is on supplying cost-effective and innovative solutions that help improve color quality and productivity.

Our lineup of colorimeters, from the versatile NH310 colorimeter to the high-performance TS8560 spectrophotometer, is put together to give you the kind of accurate, repeatable readings that are essential in the printing, textile dyes and Pharmaceuticals business and other demanding industries.

If you are looking to improve the accuracy and efficiency of your color quality control, contact Threenh today. Let's discuss our range of innovative and cost-effective color management solutions and find the right fit for your operation.




ModelYS6080(Pulsed xenon lamp)
Optical GeometryReflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle);
SCI (specular component included)/SCE (specular component excluded);Include UV / excluded UV light source;
Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing);
SCI (specular component included)/SCE (specular component excluded);Include UV / excluded UV light source;
Haze(ASTM D1003);
Conforms to CIE No.15，GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Integrating Sphere SizeΦ 154mm
Light Source Device360nm-780nm Xenon Lamp, 400nm cut-off Xenon Lamp,420nm cut-off Xenon Lamp,460nm cut-off Xenon Lamp
Spectrophotometric ModeConcave Grating
Sensor256 Image Element Double Array CMOS Image Sensor
Wavelength Range360-780nm
Wavelength Pitch10nm
Semiband Width5nm
Reflectance Range0~200%
Measuring ApertureReflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ30mm/Φ25mm;Remark: 1. Automatic identification of switch caliber   2. Customized Configuration caliber and lens position
Specular ComponentReflectance: SCI&SCE
Transmittance: SCI&SCE
Color SpaceCIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy
Color Difference FormulaΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99
Colorimetric IndexWI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
APHA/Hazen/Pt-Co, Saybolt
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
Gardner Index, 555 Index, Haze(ASTM D1003)
Observer Angle2° & 10°
IlluminantsD65,A,C,D50,D55,D75, F1,F2,F3,F4,F5,F6, F7,F8,F9,F10,F11,F12, CWF,DLF,TL83,TL84,TPL5,U30
Displayed DataSpectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measuring TimeAbout 2.4s (Measure SCI & SCE about 5s)
RepeatabilitySpectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.05%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.012 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.06%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument ErrorΦ25.4mm/SCI, Within ΔE*ab 0.12
(Average for 12 BCRA Series II color tiles)
Size370×300×200mm
WeightAbout 9.6kg
Power SupplyDC 24V, 3A Power Adapter
Light Source Device Life5 years, more than 3 million times measurements.
Display7" TFT Capacitive Screen-touch Display
Data PortUSB & Bluetooth & Print serial port
Data StorageStandard 5000 Pcs, Sample 40000 Pcs
LanguageSimplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish)
Working EnvironmentTemperature: 0~40℃; Humidity: 0~85% (No Condensation)
Storage EnvironmentTemperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard AccessoryPower Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component
Optional AccessoryMicro-printer, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components, culture dish
Notes: The specifications are subject to change without notice.



Our Valued Clients

  • customer testeo logo
  • customer swaraj
  • customer tatamotor
  • customer century laminate
  • vogels logo vector
  • Client mohani logo
  • customer bell logo
  • partner vishay logo

FAQs About  Benchtop Spectrophotometers

When detecting color differences, the first factors to consider when selecting a light source include its stability, directionality, lifespan, and the effectiveness of the ultimately obtained spectral curve. The illuminant of a colorimeter is a fixed bulb, such as a tungsten lamp，LED light or a long-life xenon lamp. However, for the same color sample, the results displayed by the instrument vary under different light sources. This is because different light sources cause different absorption and reflection of light on the sample, leading to differences in how both the human eye and the instrument perceive the color.

In general, the D65 light source is used in the application of coil steel inks for construction. The D65 light source is equivalent to average daylight. Most coil steel inks for construction are used outdoors, and sunlight is regarded as the standard light source in outdoor environments. For household appliance coil steel inks, due to their usage characteristics, they are mostly used indoors. Therefore, the A standard light source is adopted for color measurement of samples based on indoor lighting conditions. The A light source is a carefully specified tungsten light source. Other light sources, such as fluorescent light sources, can be used in many types of applications. For example, some textile factories use fluorescent light sources. Therefore, a reasonable light source should be selected as the mutually recognized measurement method based on actual usage conditions and user requirements. Once agreed upon by both parties, color measurement must be conducted under the same conditions. This helps reduce unnecessary systematic errors and human errors, achieving the optimal consistency in color measurement.

The 3nh high-precision spectrophotometric colorimeter adopts a combined LED light source with long lifespan and low power consumption, which includes UV (ultraviolet) and UV-excluded options. This design can meet the color difference detection needs of different users and supports the selection of multiple light source modes.

Who are we? Threenh Technology: 22-Year Professional Color Measurement Solution Provider

Threenh Technology is a Chinese professional Measurement Instrument manufacturer with 22 years of industry experience, specializing in the field of color measurement and surface gloss detection. Integrating research and development, design, production, marketing, and sales, the company takes technological innovation as its core and is committed to providing global customers with high-precision and intelligent testing instruments as well as professional solutions.


For professional paint matching (decorative, automotive, industrial, metallic/pearlescent), these are the top-performing spectrophotometers from 3nh — optimized for formulation, batch consistency, metamerism control, and field/shop matching:


1. 3nh YS6060 Premium Benchtop (Best Lab & Formulation)

  • d/8° sphere, SCI/SCE, UV control (360–780nm)

  • ΔE*ab ≤ 0.015, IIA ≤ 0.2 — ultra-precise for R&D

  • Multi-apertures (Φ4/8/15/25.4mm)

  • Transmission + reflection modes

  • Best for: Paint lab formulation, fluorescent pigments, color standardization

2. 3nh TS7700 Portable (Best On-Site / Production)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Large Φ20mm aperture — averages texture/sheen

  • Fast, handheld, rugged

  • Best for: Paint store counters, job-site matching, production QC

3. 3nh MS3008 Multi-Angle (Metallic / Pearlescent Paints)

  • 8-angle measurement (15°/25°/45°/75°/110° + others)Threenh

  • For flip-flop, sparkle, pearlescent, metallic coatings

  • High stability for special-effect finishes

  • Best for: Automotive paint, powder coatings, metallic pigments, High-end industrial coatings, automotive OEM

4. 3nh YS3010 / YS3060 (Mid-Range Portable)

  • d/8°, SCI/SCE, UV adjustable

  • Interchangeable apertures (Φ4/8mm)

  • Bluetooth + USB

  • Best for: General paint store matching, routine QC

Short Best Recommendations

  • Lab formulation / R&D: 3nh YS6060

  • Portable on-site / paint store: 3nh TS7700

  • Metallic / pearlescent paint: 3nh MS3008

  • Entry-level portable: 3nh YS3010


All deliver stable spectral data, minimal metamerism, and perfect batch-to-batch consistency — critical for paint matching.


The machine used to measure color is primarily called a colorimeter or spectrophotometer.

Spectrophotometer: The most common and precise type. It analyzes light reflected/transmitted by an object across the visible spectrum to quantify color accurately. A spectrophotometer can measure colors on smooth or matte surfaces, as well as textured, glossy, mirror-like surfaces, and special effect colors. It measures the reflected light of a sample at a fixed angle (e.g., 45˚) or captures light reflected at all angles to calculate color measurements that closely match what the human eye perceives. Additionally, similar to how humans flip a sample to view colors from different angles, a spectrophotometer is suitable for measuring a variety of materials and surface characteristics. Widely used in industries like paint, textiles, plastics, Chemicals, Pharmaceuticals, and printing.

Colorimeter: Also called photoelectric integrating colorimeter, a simpler, more cost-effective option. It measures color based on three primary colors (RGB) and is suitable for basic color matching needs. A photoelectric integrating colorimeter is a color measurement device based on the photoelectric integration principle. It directly measures the tristimulus values XYZ of an object's color using three color filters (red, green, blue) and silicon photocells as three sensors. The color measurement principle of this instrument imitates the human eye's mechanism of perceiving the three primary colors (red, green, blue). It corrects the relative spectral sensitivity of the detector through color filters to match the CIE-recommended spectral tristimulus value functions x(λ), y(λ), and z(λ).

Spectrocolorimeter: Combines the functions of spectrophotometers and colorimeters, offering both spectral data and color space values for comprehensive analysis.

A spectrophotometer and colorimeter are certain instruments used by scientists to measure color by quantifying reflected or transmitted light. The results are presented in color spaces, such as L*a*b*, RGB, or XYZ. This enables the accuracy of comparison and tracking of the changes in color in chemical or material research.
