Spectrophotometer ST60

Portable Accurate Color Measurement Spectrophotometer

The 3NH ST60 spectrophotometer measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space. Designed to evaluate the color and appearance of paints, plastics,  food, fruit, cement, weaving, dyeing and other material. Portable color measurement device for fast and accurate color analysis. Equipped with a single-beam optical system, it offers reliable performance for basic color evaluation in various industries.


Key Highlights

  • 256-element linear CCD sensor

  • spectral range of 400–700 nm

  • Support standard color spaces like CIE LAB, XYZ, and s-RGB

  • D/8 geometry (SCI/SCE)

  • Good repeatability (ΔEab ≤0.15) and inter-instrument agreement (ΔEab ≤0.3)

  • Ideal for on-site color inspections in industries such as paints, plastics, and textiles

Spectrophotometer ST60 Instructions Operating Manual Spectrophotometer ST60 PDF
This TS60 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

The twin sister ST series of 3NH TS series is launched grandly, inherits the core technology of large-area array sensor and grating splitting in the field of color detection, and acutely analyzes the strong and weak light in 300-1100nm band. Our TS series has always been imitated, but never surpassed. TS series since its birth has been adhering to the quality first, with the purpose of quality, after years of continuous improvement, we can proudly say: ST series, let the color measurement is very accurate! In the future, 3nh will continue to practice the mission of "specialized and innovation" enterprise and high-tech enterprise, overcome difficulties and continue to innovate on the road of testing instruments, so that our partners can have a wonderful high accuracy and quality measurement instrument.

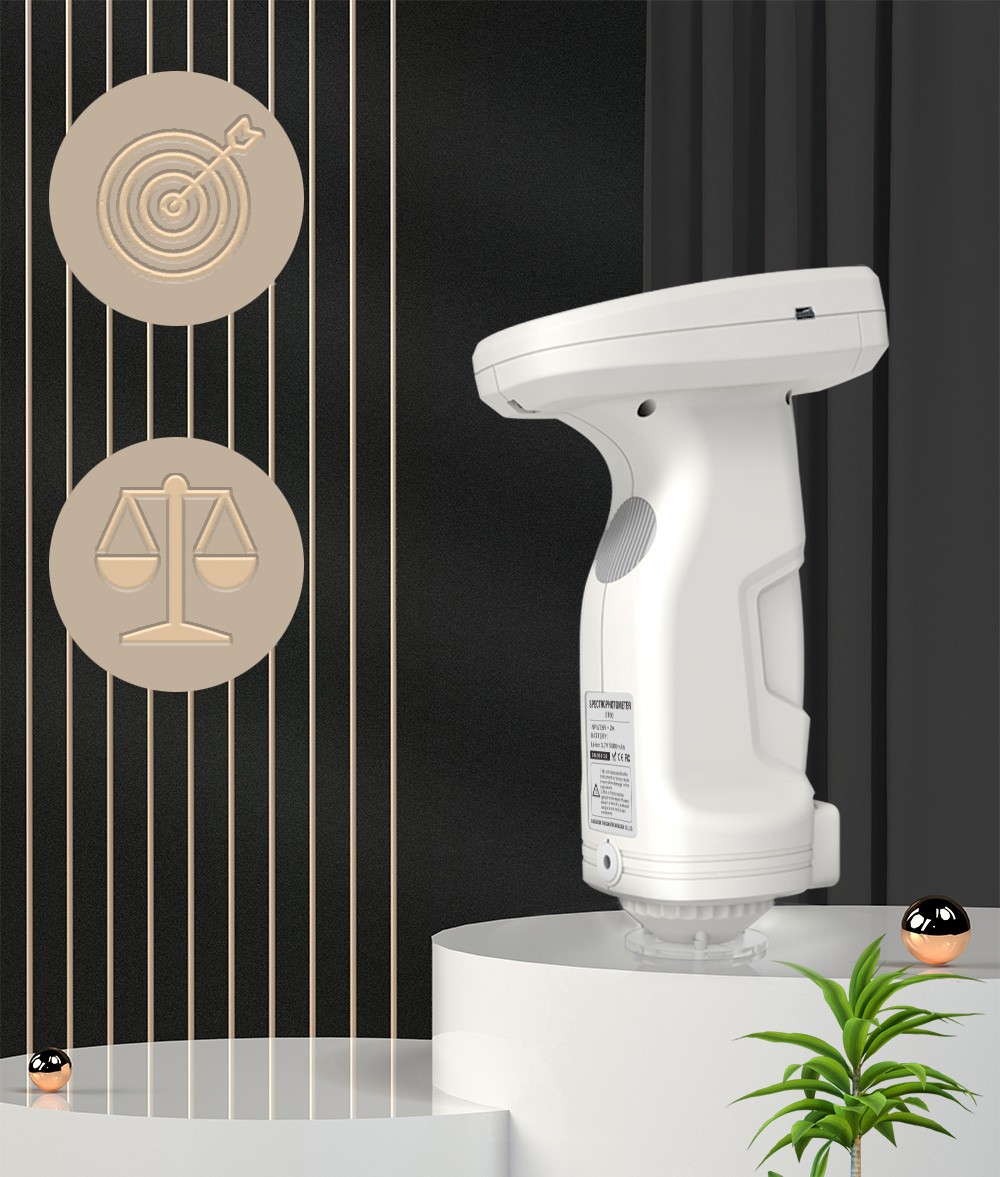

Spectrophotometer device ST60 is a spectrometer developed by 3NH TS series core technology, using built-in photodiode array (double 26 groups) sensors, imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of ST60 spectrophotometer is easily controlled within 0.025, and the Inter-instrument error delta E* AB is controlled within 0.15, to make the measurement more accurate, is a high-quality device designed for accurate color measurement in printing and graphic arts. And the test data can be used for accurate color analysis and transmission in the laboratory.



ST60 Widely Application

Spectrophotometer ST60 is equipped with 4 kinds of measuring apertures, with wider adaptability, accurate color measurement and stable performance. It is used for accurate color measurement and quality control in plastic electronics, paint ink, textile and garment printing and dyeing, printing, ceramics and other industries, and can be used for fluorescent sample measurement.

ST60 application in plastic, textile, paint, ceramics and print



ST60 Features

Large area photodiode array (dual 26 arrays) sensor

A larger area of double 26 array sensor, strong light saturation, weak light sensitivity and a wider spectrum response range, to ensure the instrument measurement speed, accuracy, stability and consistency, independent core technology, and international standards of the same platform, to achieve complete compatibility.


Adopt D/8 structure and SCI/SCE mode

Spectrophotometer ST60 uses a widely international use D/8 optical structure, SCI/SCE (Specular Component Included/Specular Component Excluded) synthesis technology, support SCI+SCE at the same time fast measurement, test time about 1.5 seconds.


Combination of full spectrum LED light source and UV light source

The use of 360-700nm full spectrum LED light source ensures sufficient spectral distribution in the visible light range, avoiding the spectral loss of specific bands, strong light will not be saturated, weak light is more sensitive, and fluorescence samples can be easily measured.

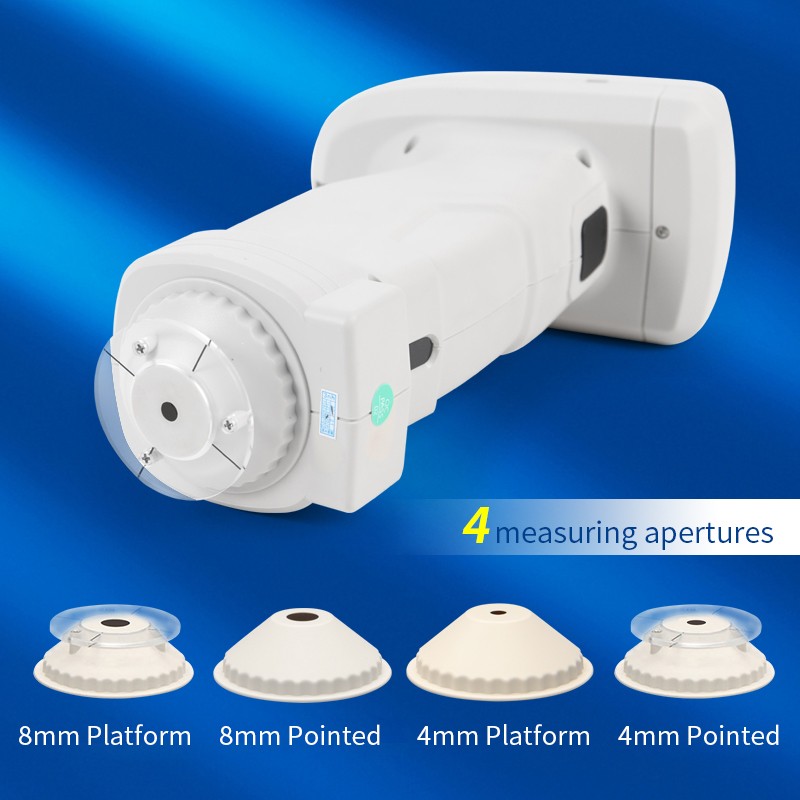

Equipped with four kinds of measuring apertures


It is equipped with four types of measuring apertures, which can meet the measurement needs of different sizes of samples, and is suitable for precise color measurement of samples with different specifications and shapes.

Spectrophotometer ST60 factory standard with 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture, a total of four measuring apertures, to meet the measurement needs of most special samples.

Connect with a Color Experts

Camera positioning can clearly observe the measured area


The ST60 spectrophotometer has built-in camera. Through the real-time scene-taking of the camera, it can accurately determine whether the measured part of the object is the target center, which improves the measurement efficiency and accuracy.




Non-contact automatic calibration, professional imported white board, more wear-resistant, dirty, stable



Place the base safely to ensure that the whiteboard is not dirty.


Offer 10 kinds of color measurement space and 41 kinds of observation light source

Offer CIE LAB,XYZ,Yxy,LCh,CIE LUV, S-RGB, HunterLab, βxy, DIN Lab99, Munsell(C/2) color spaces, and D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), B, U35, NBF, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-C2, LED-C3, LED-C5. It also can be customized light source (A total of 41 kinds of light source, Partially realize through the PC software /APP software), and can meet the special measurement requirements under different measurement conditions.


Many color indexes


Spectrophotometer ST60 not only provides the commonly used color measurement, but also provide spectral reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter, TaubeBergerStensby), YI (ASTM D1925, ASTM 313), Metamerism index of Mt, Staining Fastness, Color Fastness, Color Strength, Opacity, 8 degree gloss, 555 tone classification, Carbon (My,dM), color density CMYK(A,T,E,M), Tint, Munsel chroma index (part of the function is realized by PC software).






Excellent instrument errors and repeatability

Ensure the consistency of measurement data of multiple equipment, to be used for color matching and accurate color transfer.



Support Huawei Harmony OS, Android, IOS, Wechat applets, Windows programs

This extensive system support allows seamless integration across various platforms, whether you're on a mobile device or at your desk, making data transfer and device interaction a breeze.



Advice & information


Would you like additional advice or simply a quote regarding our ST60 Portable Color Measurement instrument? To do so, please fill out our contact form below. Our team, with over 20 years of experience in Measurement instrument, is available to respond as quickly as possible.



Specification



ModelST60 spectrophotometer
Optical GeometryD/8 (diffused illumination, 8-degree viewing angle)
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source
Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
CharacteristicAdopt 3nh TS series core technology, 4 measuring apertures for accurate color analysis and transmission in laboratory
It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement.
Integrating Sphere SizeΦ40mm
Light SourceCombined full spectrum LED light source, UV light source
Spectrophotometric ModeFlat Grating
SensorSilicon photodiode array (double row 26 groups)
Wavelength Range360~700nm
Wavelength Interval10nm
Measured Reflectance Range0-200%
Measuring Aperture4 apertures: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm;
Specular ComponentSCI&SCE
Color SpaceCIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99,Munsell(C/2)
Color Difference FormulaΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Colorimetric IndexSpectral reflectance,WI(ASTM E313,CIE/ISO, AATCC, Hunter, TaubeBergerStensby),
YI(ASTM D1925,ASTM E313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness,555 tone classification, Carbon (My,dM), color density CMYK(A,T,E,M), Tint, Munsel chroma index (part of the function is realized by PC software)
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5, F6,F7(DLF),F8 ,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF, ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, able to customized light source (total 41 kinds of light source, Partially realize through the PC software /APP software)
Displayed DataSpectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color simulation, Color Offset
Measuring TimeAbout 1.5s
RepeatabilityChromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)
Inter-instrument ErrorMAV/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles)
Display Resolution0.01
Measurement ModeSingle Measurement, Average Measurement(2-99times)
Locating MethodCamera Locating,stabilizer cross position
DimensionL*W*H=129X76X217mm
WeightApprox 600g
BatteryLi-ion battery, 8800 measurements within 8 hours
Illuminant Life Span10 years, more than 1.5 million times measurements
Displayed Data3.5-inch TFT color LCD, Capacitive Touch Screen
Data PortUSB, Bluetooth ® 5.0
Data StorageStandard 1000 Pcs, Sample 30000 Pcs, APP/PC mass storage
Software SupportAndriod,IOS,Windows,Harmony OS,Wechat applets
LanguageSimplified Chinese, English, traditional Chinese
Operating Environment0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment-20~50℃, 0~85%RH (no condensing)
Standard AccessoryPower Adapter, USB cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture
Optional AccessoryMicro Printer, Powder Test Box
NotesThe specifications are subject to change without notice.

Our Valued Clients

  • Clients honda logo
  • 3nh customer bridgestone
  • customer hms logo
  • customer swaraj
  • Client luminous
  • maruti suzuki logo
  • customer nesling logo
  • customer cipla

FAQs About Spectrophotometer

 Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

Who are we? Threnh Technology: 22-Year Professional Color Measurement Solution Provider

Threnh Technology is a Chinese professional Measurement Instrument manufacturer with 22 years of industry experience, specializing in the field of color measurement and surface gloss detection. Integrating research and development, design, production, marketing, and sales, the company takes technological innovation as its core and is committed to providing global customers with high-precision and intelligent testing instruments as well as professional solutions.


SCI&SCE are two method in the color measurement. SCI means Specular Component Include,SCE means Specular Component Exclude.

Under the method of SCE, only test diffuse refection and exclude specular reflection. In that way, the test result is similar to object color was observed by human eyes.

Under the method SCI, both the diffuse refection and specular reflection will be included. In that way, the value about the color is more objective. It will not effect by the environment condition.

When we choose the instrument, those elements should be taking into consideration.


A colorimeter or spectrophotometer should be used to measure the color of a solution. The instrument directs light through the liquid and quantifies absorbance at certain wavelengths. The values obtained indicate the color intensity of the solution and, by default, the concentration of the solution.

Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on. We sell to the global market.

With centers in 20 countries, including India, Japan, USA, Germany, Singapore, China, South Korea, and Taiwan, Threenh Technology’ s service network aims to provide customers with convenient access to service globally. With over 1 million measuring instruments sold, our expertise is our greatest asset, enabling us to work with our customers on solutions to complex measurement challenges.
