Precision Colour Measurement Solutions for Consistent Textile Quality

Picture holding two samples of navy cotton, and placing them under the factory fluorescent lights. They look identical. You agree to the shipment. Three weeks later, these fabrics are again on a retail rack, this time illuminated by warm store lights. One of the panels appears deep indigo. The other one appears muddy purple. The resulting jacket is a patchwork quirk.

This nightmare is a daily occurrence in textile mills. Our eyes trick us. After a few hours of looking, out eyes become weary. Lighting in the rooms varies according to weather and time of the day. A visual inspection alone is not enough to safeguard a textile brand against high cost of batch rejection.

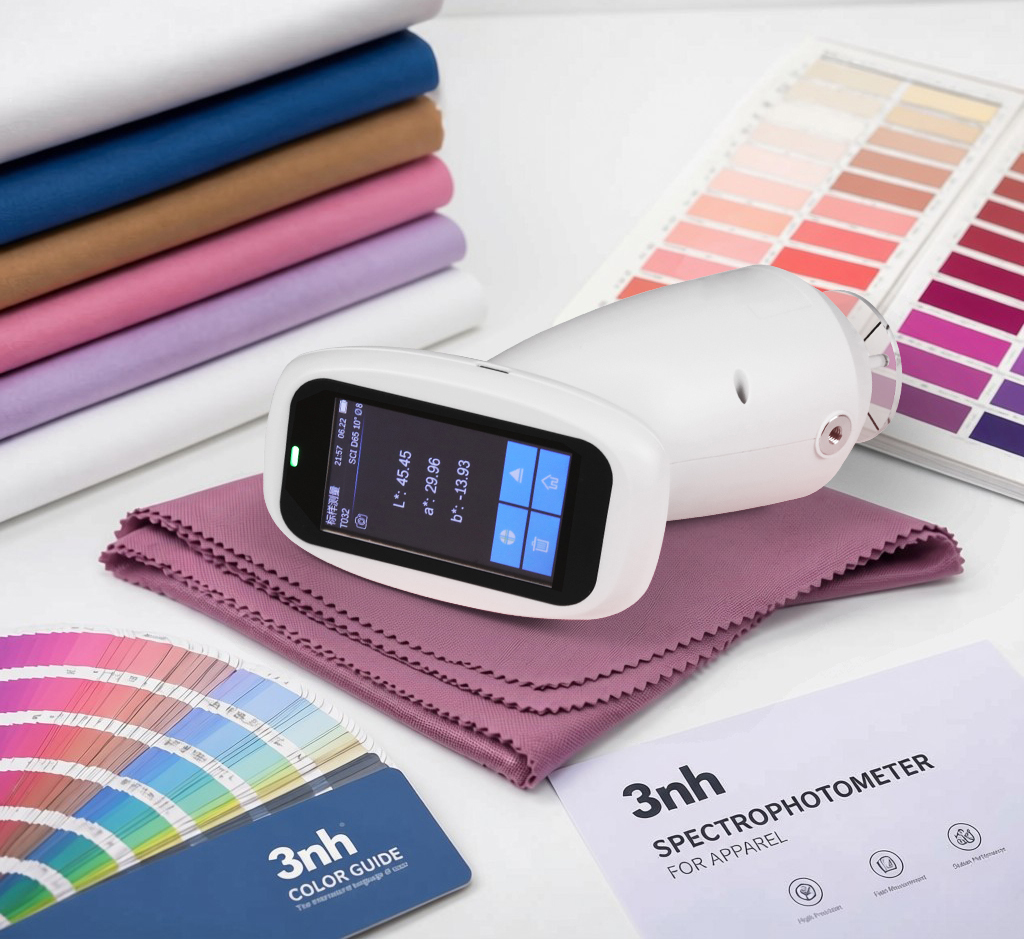

The quality of textiles is required to be substantiated by objective evidence. Requires precise spectral information. This is where precision colour measurement comes into play. 3nh Colour measurement instruments measure the subjective opinion into numbers by capturing the light reflection of a material on all wavelengths of the visible spectrum.

Raw Dyes and Recipe Matching: Where Precision Starts

The beginning of precision is where Raw Dyes and Recipe Matching begins.

All the rich colours in shirts and tough fabric rolls start in the dye shop. In this, the dye is liquid or powder which decides the dyeing. If there is one speck of dyeing mistake, thousands of metres of cloth are ruined.

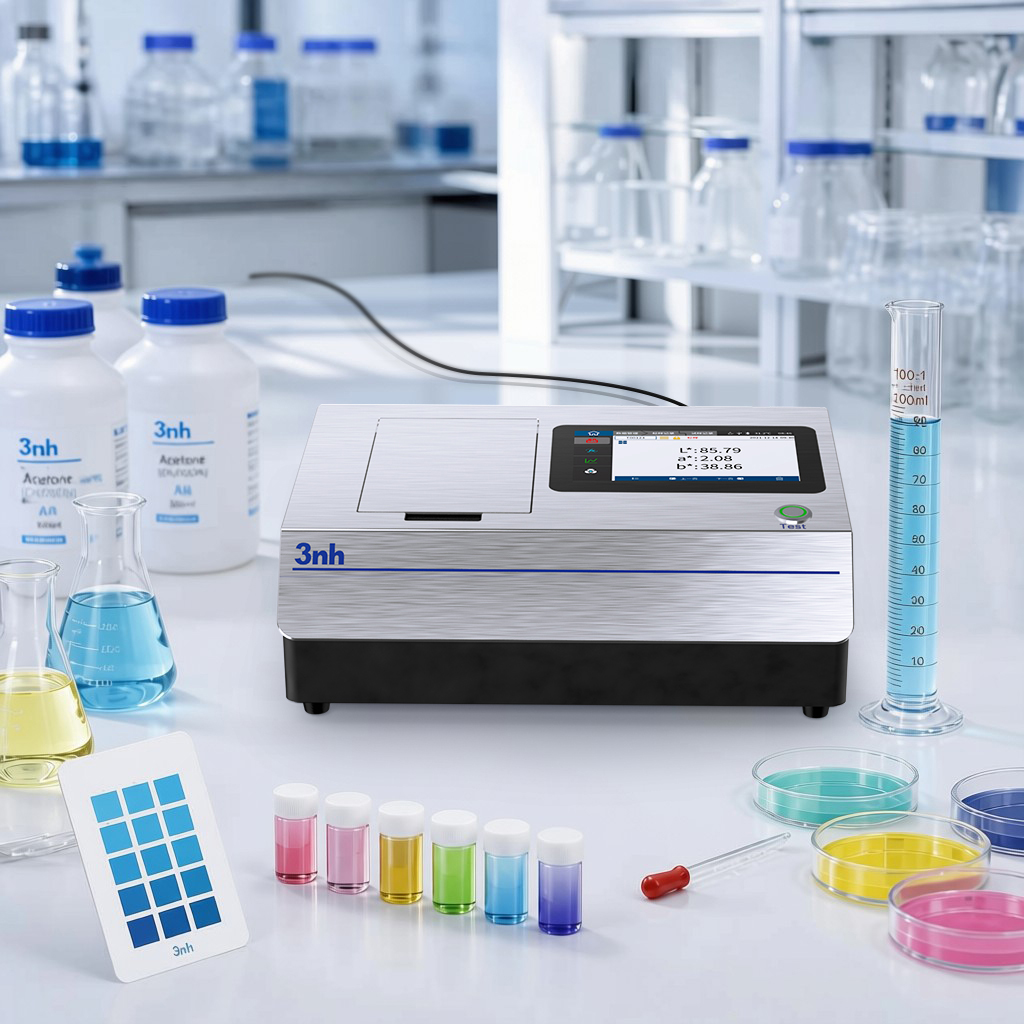

When production begins, dye laboratories need to be able to perform standard strength and recipe matching. Benchtop spectrophotometers are used for the measurement of dye solutions in liquids with benchtop cell holders. Stable reflectance sample holders are required for measuring raw powder dyes.

Metamerism is another subtle trick in dye houses. Morning sunlight allows 2 dyed samples to match, while store lighting causes them to be completely mismatched. Spectrophotometers are the answer to this headache. They assess the spectral reflectance under a variety of standardized illuminants such as D65 daylight, TL84 store lighting and F11 commercial lighting.

The 3nh benchtop spectrophotometers offer a precise spectral curve to dye masters. They assist chemists in adjusting dye formulations in a matter of seconds. It reduces wasted dyes, less test baths, quicker recipe approvals and a reduced raw materials cost.

Garments, Trims, and Home Furnishings: Component Matching and Shade Sorting

Matching Parts and Shade Collection: Garments, Trims, and Home Furnishings

It is an assembly job to make up any modern jacket or athletic shirt or sofa. The main body material may be from a Vietnam mill. The zipper tape is made from China. Sewing thread is from India. Plastic buttons are from Italy.

Once the different parts are brought together on the assembly line, their colour should blend seamlessly without any mismatches. Even the smallest shade difference is noticeable to the consumer. A zipper that is off by one unit in Delta E does not give the perception of the entire garment.

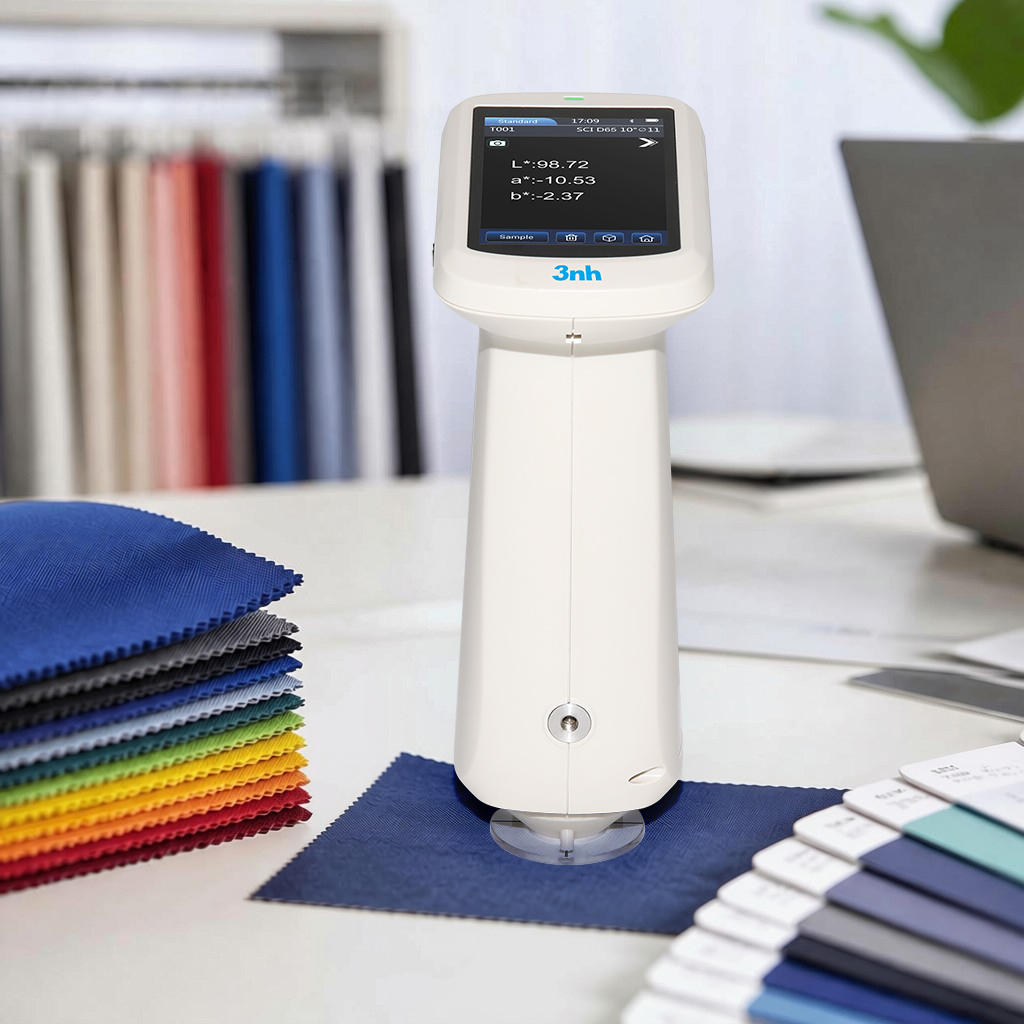

Portable spectrophotometers take the accuracy of the lab right to the factory floor. Compact instruments are dropped on zippers, seams, collars and trims during a quality control inspection.

The 3nh handheld spectrophotometers are designed to be multi-aperture. The inspectors are switched between 8mm aperture and 4mm or 1.5mm aperture, depending on the width of the fabrics and accessories to be inspected, such as narrow zipper tapes, and small accessories. The display screen can instantly show pass or fail results in line with agreed tolerances of brands.

The other important job in fabric manufacturing is shade sorting. Fabric rolls tend to be inconsistently manufactured from a roll to edge and roll to roll. The manufacturers gauge the spectral information of each roll and classify fabrics into narrow bands of color. Tailors then cut panels from the same shade group, so that multi-panel garments will not appear mismatched.

High-Visibility Fabrics: Safety Standards and Fluorescence

Understanding the safety standards and the level of fluorescence of high visibility fabrics.Fluorescence and safety standards of high-visibility fabrics.

Cross a highway work zone or pass an airport tarmac. You can see crew members wearing brightly coloured vests of neon yellow and orange. These are not always uniform options. They sustain the life of workers.

The international safety regulations, such as EN ISO 20471 and ANSI/ISEA 107, specify very tightly controlled chromaticity coordinates and luminance factors for high-visibility apparel. A safety jacket that is faded or has the color box that is lower than the safety standard ceases to be safe.

High visibility fabrics use fluorescent dyes. A type of dyes that absorb invisible ultraviolet (UV) radiation and re-emit the radiation as bright visible light. Because the UV is not controlled, standard color sensors are not suitable for these fabrics.

To make accurate measurement of high-vis, the UV light sources in the spectrophotometer must be controlled and the measurement geometry must be 45/0. The 45/0 setting is in the same direction as the human eye looks at flat surfaces and it is designed to be used to ignore the direction of the gloss.

Leather and Textured Surfaces: Separating Surface Grain from True Colour

True fluorescent brightness is measured precisely using 3nh's high precision instruments, which control the output of the UV to the correct level. They make sure that safety apparel conforms to international compliance regulations from the first dye bath to the final reflective finishing.

For Leather and Textured Surfaces: Separate Surface Grain From True Colour

Quality teams have one challenge with leather: It is an interesting product. Natural hides have grain patterns, natural wrinkles, pores and a natural surface gloss. A variation in shades from one hide to the next is not acceptable when joining leather seats in an automotive application, nor is it acceptable when joining leather boots for luxury.

Light reflects in different directions from the surface of textured leather. When dyed in the same bath, a coarse grain pattern may cause a dark brown hide to appear lighter than a smooth hide.

To overcome this, colour engineers use d/8 sphere geometry, dual measurement mode spectrophotometers, known as SCI (Specular Component Included) and SCE (Specular Component Excluded).

The total colour reflectance in SCI mode is unaffected by surface texture and shine. In SCE mode, colour is measured in the way the human eye sees it, that includes the optical effect of the surface gloss.

3nh portable units enable the leather hide to be assessed inside the tannery. They walkthe plank with grain orientation and produce consistent numbers in the spectrum, hide after hide.

Fastness Testing and Connected Digital Workflows

Colour control is not restricted to the first production run. Textiles should resist fading in wash, sunlight, rubbing and perspiration.

Fabrics are tested in testing laboratories before and after ISO 105 fastness tests. The software translates the change of the spectrum into digital ratings of stain and colour change known as 'Grey Scale'. This eliminates subjective grading by human testers.

Standardized light cabinets also facilitate the physical inspection. Colour viewing boxes are boxes that offer controlled conditions that have a controlled light source. Inspectors check the samples visually with digital data, alternating between D65 daylight, store lights and home lights.

Colour management software such as 3nh SQCX links the hardware together. The software saves digital colour standards, monitors batch history, generates Metamerism Index values and marks shade drift all over the world.

Digital colour standards can be used in place of fabric swatches that fade, stain and age over time. A European design team receives these digital spectral coordinates within seconds from a mill manager in Asia. Approval happens in minutes instead of waiting days for courier shipments.

Building Lasting Textile Quality with 3nh

Textile manufacturing moves fast. Profit margins leave no room for wasted dye or rejected shipments. Rethinking colour as exact spectral data transforms how mills and brands operate.

From raw dye powders to high-vis vests, leather seats, and delicate sewing threads, 3nh colour measurement solutions give textile makers full control. Precision benchtop and portable instruments cut reworks, eliminate shade disputes, and guarantee visual harmony across every product line.

Consistency builds customer trust. When your colors match perfectly across every roll and every batch, your brand wins on store shelves worldwide.
