TS8210 Reference Grade Spectrophotometer

The All-in-One Solution for Precision Color Measurement Anywhere

Tired of Bulky Lab Equipment? This Portable Desktop Spectrophotometer Brings Lab-Grade Accuracy to Your Workbench. TS8210 is developed by 3nh with independent core spectroscopic technology, specially designed for measuring the surface color of objects, is a game-changer in color measurement. When strict inter-instrument delta E (ΔE) is required, benchtop spectrophotomet`ers are an ideal choice.

Key Highlights

40 groups double rows sensors
Equipped with a 400 - 700nm full - waveband balanced LED and UV light source
Customized single apertures (φ4 mm or φ8 mm)
Repeatability of ΔE*ab 0.025, Inter-instrument Error ΔE*ab 0.2
SQCX quality management software
7-inch industrial-grade high-definition touch screen

TS8210 Reference Grade Spectrophotometer Instructions Operating Manual TS8210 Reference Grade Spectrophotometer PDF

This TS8210 Instrument are Certified with

1 Years Warranty (Additional support period of 3 years)

Outstanding Technical Performance for Reliable Color Measurement

The 3NH reference-grade benchtop TS8210 spectrophotometer is the newest generation of benchtop color measuring instruments, incorporating an improved integrated circuit technology in the measurement instrument design.

The portable desktop reference-grade spectrometer color meter TS8210 is a spectrophotometer developed by 3NH with independent core spectroscopic technology. TS8210 is a color measurement instrument used to capture and evaluate colors, It adopts built-in silicon photodiode array (40 groups in double rows) sensors and imported white board, and gives consideration to the speed of measurement and the convenience of operation. The rotating and pressing structure makes the test more convenient. TS8210 portable desktop spectrophotometer color measurement instrument features with repeatability Δ E * ab easily control within 0.025, and inner errors Δ E * ab control within 0.2. This accuracy measurement makes it good used in the lab color accurate analysis and transfer.

Application of TS8210 portable Desktop spectrophotometer:

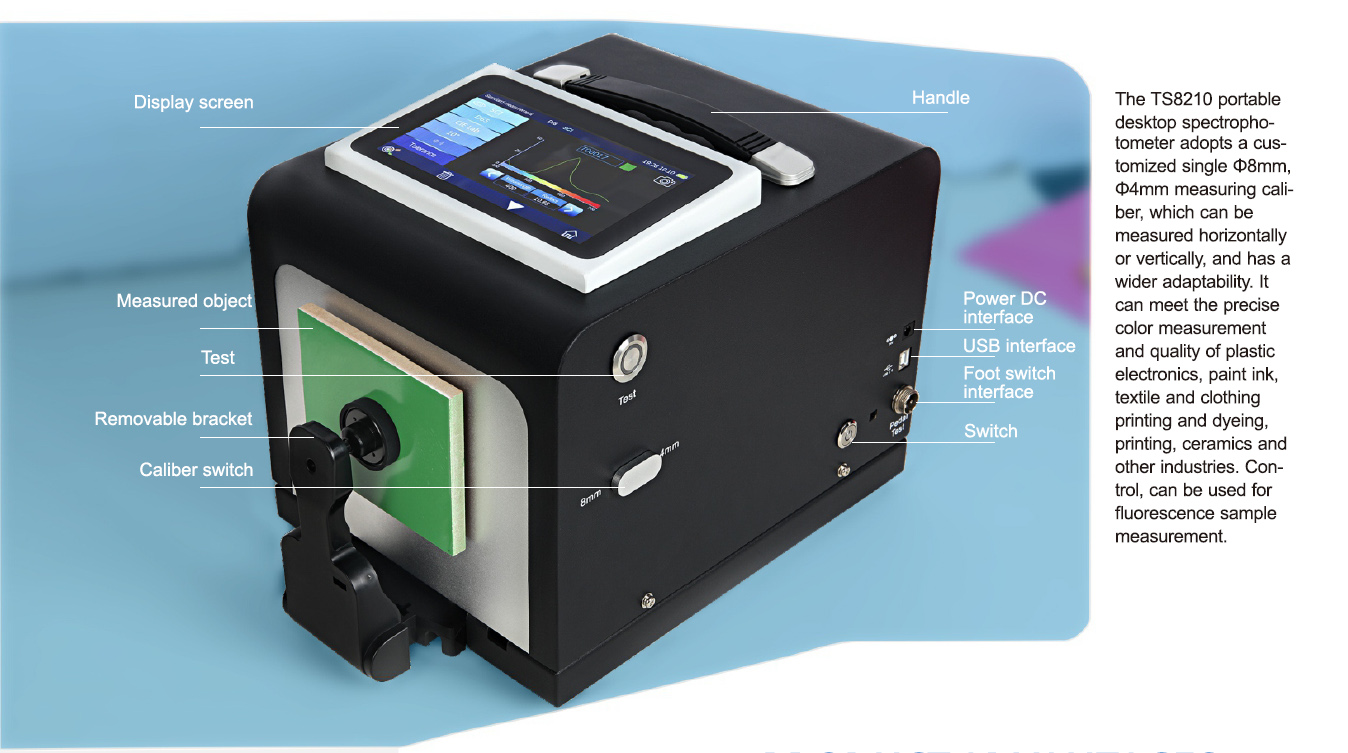

TS8210 portable desktop spectrophotometer color measurement instrument equipped with cutomzied single aperture Φ4mm or Φ8mm, good for horizontal or vertical measurement, wider adaptability, suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries.

TS8210 Technical Advantages:

Adopt international common use d/8 SCI/SCE Synthesis technology

TS8210 spectrocolorimeter adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology, supporting SCI+SCE simultaneous rapid measurement, and the test time is about 3.2 seconds.

Silicon photodiode array sensor (40 groups with double rows)

Double 40 array sensor with larger area, high light saturation, high sensitivity of low light and wide spectral response range ensure the measurement speed, accuracy, stability and consistency of the instrument.

A variety of color space, a variety of observation light sources

TS8210 portable desktop spectrophotometer color measurement instrument provides CIE LAB, XYZ, Yxy, LCh, CIE LUV, s - RGB, HunterLab, βxy, DIN Lab99, Munsell (C / 2) color space, and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83 / U30) light sources, which can meet the special measurement requirements under different measurement conditions.

Adopt combination full spectrum LED light source and UV light source Each

Full band balanced LED light source ensures sufficient spectral distribution in visible light range, avoids the spectral loss of white LED in specific band, ensures the accuracy of instrument measurement speed and measurement results, and professional UV light source ensures more reliable UV testing.

Camera locating can clearly observe the measured area

TS8210 spectrophotometer has a built-in camera for positioning, which can accurately determine whether the measured part of the object is the center of the target through real-time viewing by the camera, thus improving the measurement efficiency and accuracy.

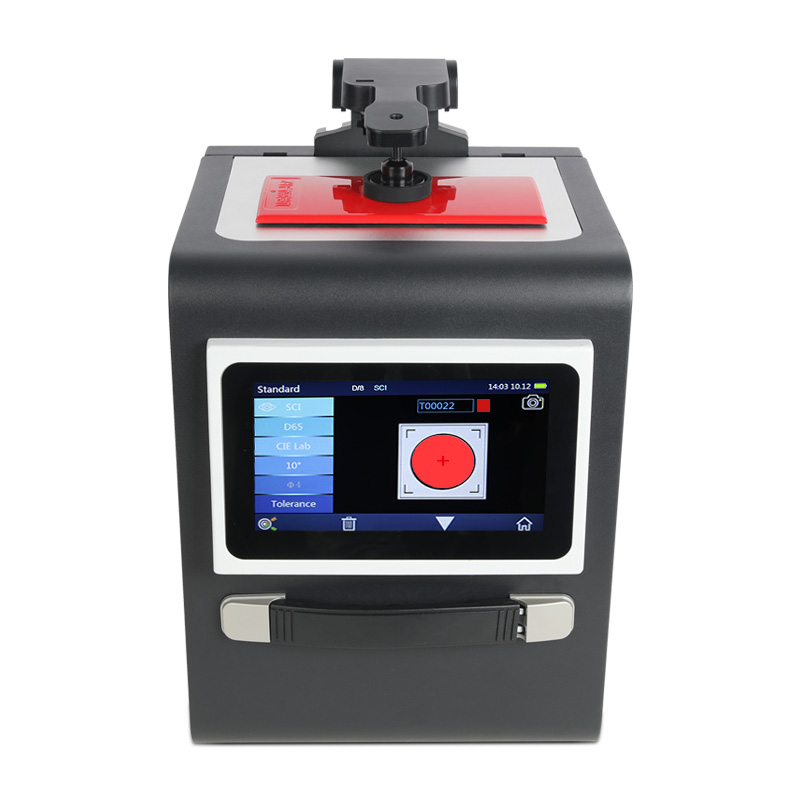

Calirbation Certificate

TS8210 spectrophotometer has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metrotechnical Institute to ensure the authority of the instrument test data.

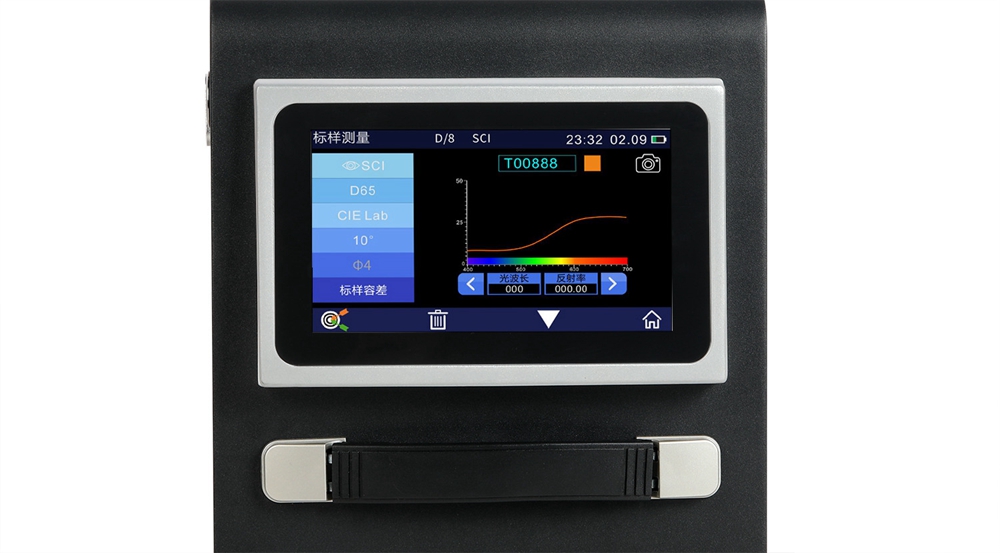

Industrial-grade HD touch screen, easy to use user interface

Using 7-inch industrial grade hd touch screen, smooth operation, the user interface is easy to use and it makes the operation to become comfortable and convenient.

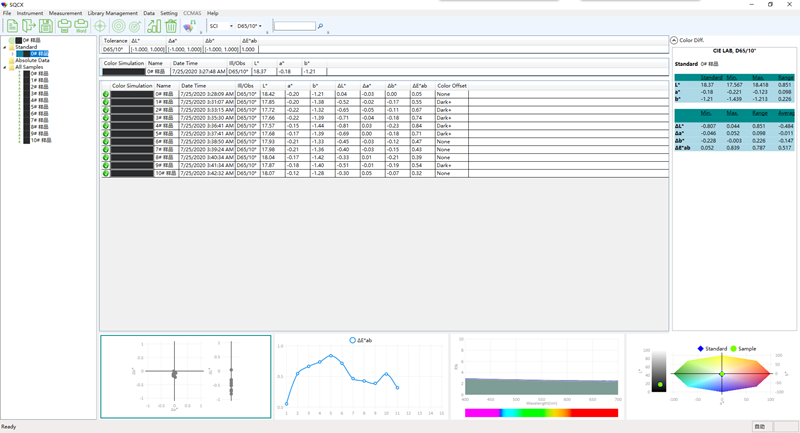

Color management software

SQCX quality management software with TS8210 spectrophotometer is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer's color management.

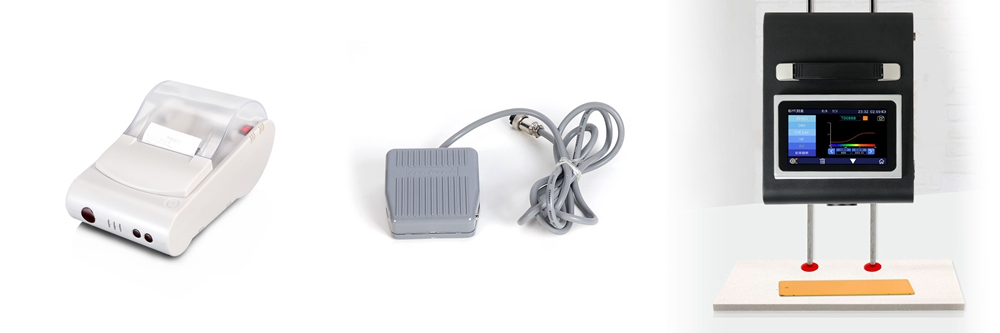

Optional Accessory

Micro printer, foot switch, rotating bracket can be freely selected according to the needs.

The completesolution for successful color management

3nh TS series spectrophotometer helps customers innovate faster, ensure consistent color quality, reduce the cost of production and accelerate their product’s speed to market. Because color matters, leading businesses worldwide choose threenh’s innovative technology and solutions to consistently achieve the right color.

Technical Specification

Model	TS8210
Optical Geometry	D/8(diffused illumination, 8-degree viewing angle)
	SCI (specular component included)/SCE (specular component excluded) ; excluded UV measurement
	Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic	Customized aperture,good for horizontal or vertical measurement, wider adaptability;
	Suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries;
Integrating Sphere Size	Φ40mm
Light Source	Combined full spectrum LED light source
Spectrophotometric Mode	Flat Grating
Sensors	Silicon photodiode array (double row 40 groups)
Wavelength Range	400~700nm
Wavelength Interval	10nm
Semiband Width	10nm
Measured Reflectance Range	0~200%
Measuring Aperture	Customized single aperture:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Specular Component	SCI/SCE
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)
Color Difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00
Other Colorimetric Index	WI(ASTM E313,CIE/ISO,AATCC,Hunter)，
	YI(ASTM D1925,ASTM 313),
	Staining Fastness, Color Fastness, Color Strength, Opacity
	8° Glossiness,555 tone classification
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time	About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability	Chromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	MAV/SCI, Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement Mode	Single Measurement, Average Measurement(2-99times)
Locating Method	Camera Locating
Dimension	LWH=370X240X260mm
Weight	About 7.8kg
Battery	AC 24V, 3A Power adapter power supply
Illuminant Life Span	5 years, more than 3 million times measurements
Display	7-inch TFT color LCD, Capacitive Touch Screen
Data Port	USB, trigger switch interface
Data Storage	Standard 1000 Pcs, Sample 20000 Pcs
Language	Simplified Chinese, English, Traditional Chinese
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment	-20~50℃, 0~85%RH (no condensing)
Standard Accessory	Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture)
Optional Accessory	Micro Printer, Foot Switch, Rotating Bracket
Notes	Technical parameters are only for reference, subject to the actual sale of the product

Our Valued Clients

FAQs About TS8210 Spectrophotometer

Threenh Technology with excellent after sale service, Generally, Our Spectrophotometer instrument warranty is one years(Additional support period of 3 years). Within the warranty period, we can offer technique support and parts to parts change, necessarily, our engineers may go to your place for better support. Our instrument have professional After-sales Dept, if you have any technical problem or question with our goods welcome to contact us.

The machine used to measure color is primarily called a colorimeter or spectrophotometer.

Spectrophotometer: The most common and precise type. It analyzes light reflected/transmitted by an object across the visible spectrum to quantify color accurately. A spectrophotometer can measure colors on smooth or matte surfaces, as well as textured, glossy, mirror-like surfaces, and special effect colors. It measures the reflected light of a sample at a fixed angle (e.g., 45˚) or captures light reflected at all angles to calculate color measurements that closely match what the human eye perceives. Additionally, similar to how humans flip a sample to view colors from different angles, a spectrophotometer is suitable for measuring a variety of materials and surface characteristics. Widely used in industries like paint, textiles, plastics, Chemicals, Pharmaceuticals, and printing.

Colorimeter: Also called photoelectric integrating colorimeter, a simpler, more cost-effective option. It measures color based on three primary colors (RGB) and is suitable for basic color matching needs. A photoelectric integrating colorimeter is a color measurement device based on the photoelectric integration principle. It directly measures the tristimulus values XYZ of an object's color using three color filters (red, green, blue) and silicon photocells as three sensors. The color measurement principle of this instrument imitates the human eye's mechanism of perceiving the three primary colors (red, green, blue). It corrects the relative spectral sensitivity of the detector through color filters to match the CIE-recommended spectral tristimulus value functions x(λ), y(λ), and z(λ).

Spectrocolorimeter: Combines the functions of spectrophotometers and colorimeters, offering both spectral data and color space values for comprehensive analysis.

Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

The color of chemical products is measured by using a colorimeter or spectrophotometer. The instruments measure the amount of light that gets absorbed or reflected by a substance. It may be used to determine concentration, purity, or compliance with product standards.

When detecting color differences, the first factors to consider when selecting a light source include its stability, directionality, lifespan, and the effectiveness of the ultimately obtained spectral curve. The illuminant of a colorimeter is a fixed bulb, such as a tungsten lamp，LED light or a long-life xenon lamp. However, for the same color sample, the results displayed by the instrument vary under different light sources. This is because different light sources cause different absorption and reflection of light on the sample, leading to differences in how both the human eye and the instrument perceive the color.

In general, the D65 light source is used in the application of coil steel inks for construction. The D65 light source is equivalent to average daylight. Most coil steel inks for construction are used outdoors, and sunlight is regarded as the standard light source in outdoor environments. For household appliance coil steel inks, due to their usage characteristics, they are mostly used indoors. Therefore, the A standard light source is adopted for color measurement of samples based on indoor lighting conditions. The A light source is a carefully specified tungsten light source. Other light sources, such as fluorescent light sources, can be used in many types of applications. For example, some textile factories use fluorescent light sources. Therefore, a reasonable light source should be selected as the mutually recognized measurement method based on actual usage conditions and user requirements. Once agreed upon by both parties, color measurement must be conducted under the same conditions. This helps reduce unnecessary systematic errors and human errors, achieving the optimal consistency in color measurement.

The 3nh high-precision spectrophotometric colorimeter adopts a combined LED light source with long lifespan and low power consumption, which includes UV (ultraviolet) and UV-excluded options. This design can meet the color difference detection needs of different users and supports the selection of multiple light source modes.
