Precision Colour Measurement and Color Matching for the Plastics

Visualize a fast injection molding machine manufacturing elegant consumer electronic enclosures. Every 10 seconds a shiny white front cover falls into the collection bin. Another press forms the identical battery door, located a few feet away. The two pieces look crisp ivory under bright showroom lights, and slightly yellow for the battery door when snapped by an assembly worker.

This can be a frustrating fault that occurs at plastic processing plants around the world. Polymers are a difficult material to work with. Resins are subjected to high shear stress, high temperatures and chemical tension during molding, extrusion, and compounding. The final color changes immediately with a slight change in barrel temperature or resin lot or pigment dispersion.

A visual inspection is not enough to safeguard a plastic processor. Eyeballs get tired with the lighting of a factory floor. Metamerism cannot be calculated by the human eye and very slight changes in translucency cannot be detected. The only way to ensure shade harmony with multi-component plastic assemblies is to use objective spectral data. This is where 3nh precision spectrophotometers come in handy.

Masterbatch Formulation and Tinting Power: Optimizing Pigment Loading

Masterbatch is the foundation behind every vibrant plastic bottle, durable appliance housing or colorful toy. These pigment pellets are concentrated chemicals that are mixed in the raw resin that is used for extrusion or molding. A slight error in masterbatch can lead to the failure of whole production runs.

Color compounding laboratories need to determine the amount of pigment tinting and recipe matching prior to mass production. Specialized pellet fixtures are needed to measure raw masterbatch pellets, to avoid light leakage between non-uniform granules. Otherwise, flat test plaques are cast in the lab to test the properties of the pigments under actual processing conditions.

Another important process in the manufacturing of masterbatch is the thermal stability test. High molding temperatures can cause the degradation of pigments. Test plaques are measured before and after each heat cycle, allowing spectrophotometers to detect a change in color or shade caused by the heat.

Recycled Resin Audits: Taming Color Variations in PCR and Regrind Stock

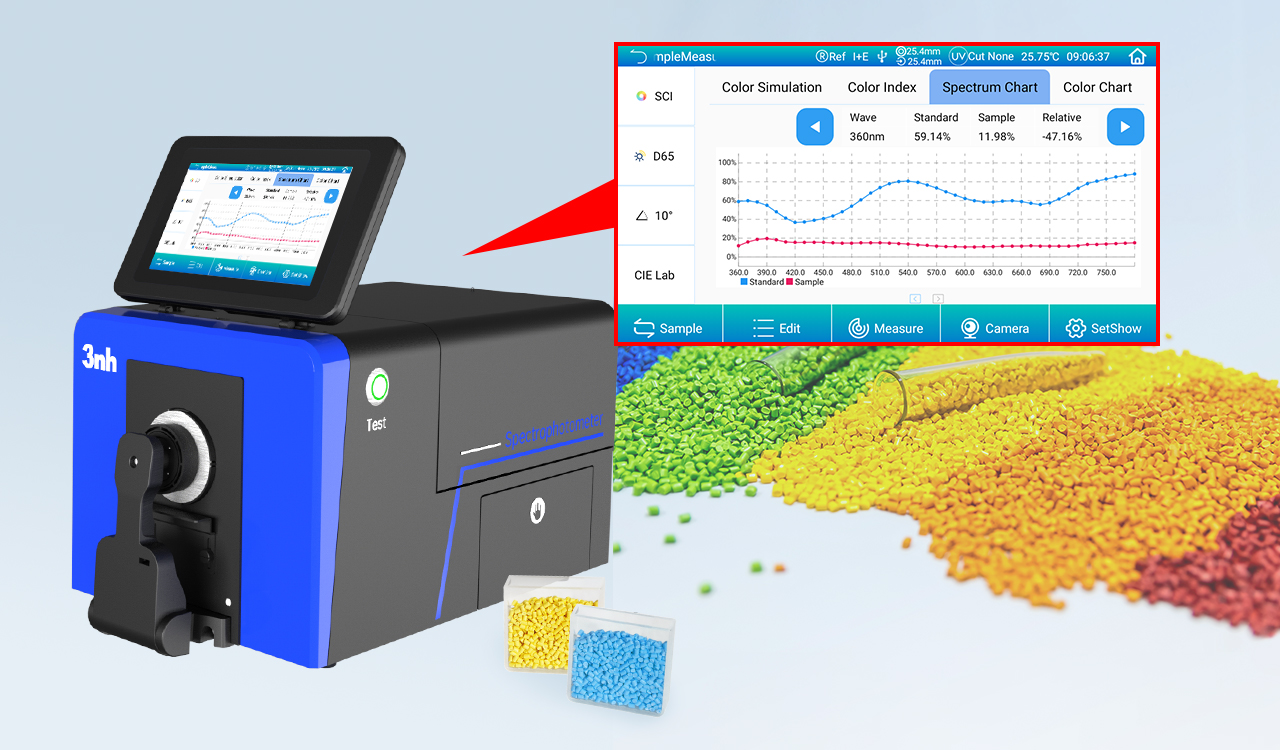

3nh benchtop spectrophotometers provide spectrographic curves with precision to masterbatch compounders. In seconds, chemists are able to make changes to the recipe of the pigments to achieve maximum pigment loading without compromising color stability throughout the high-temperature molding lines, and at a lower cost.

Recycled Resin Audits: Control Color Variations in PCR and Regrind Stock

The plastics industry is undergoing a transformation with sustainability goals. The use of molding plants that incorporate post-consumer recycled (PCR) resin and post-industrial regrind (PIR) into virgin plastic stock is becoming more common. Recycled materials however, cause unpredictable shadings.

Residual inks, mixed polymer types and thermal degradation marks are found on recycled flakes. The impurities lead to gray/ yellow batch to batch variations and hazing. If constant monitoring of color changes aren't done, recycled content is a detriment to the appearance of finished products and packaging.

Before feeding recycled pellet lots into the molding hopper the plastic processors have to audit the lots. The base colour and yellowness index of the regrind lots are measured and the corrective pigment or whitener used is calculated to counteract shade drift.

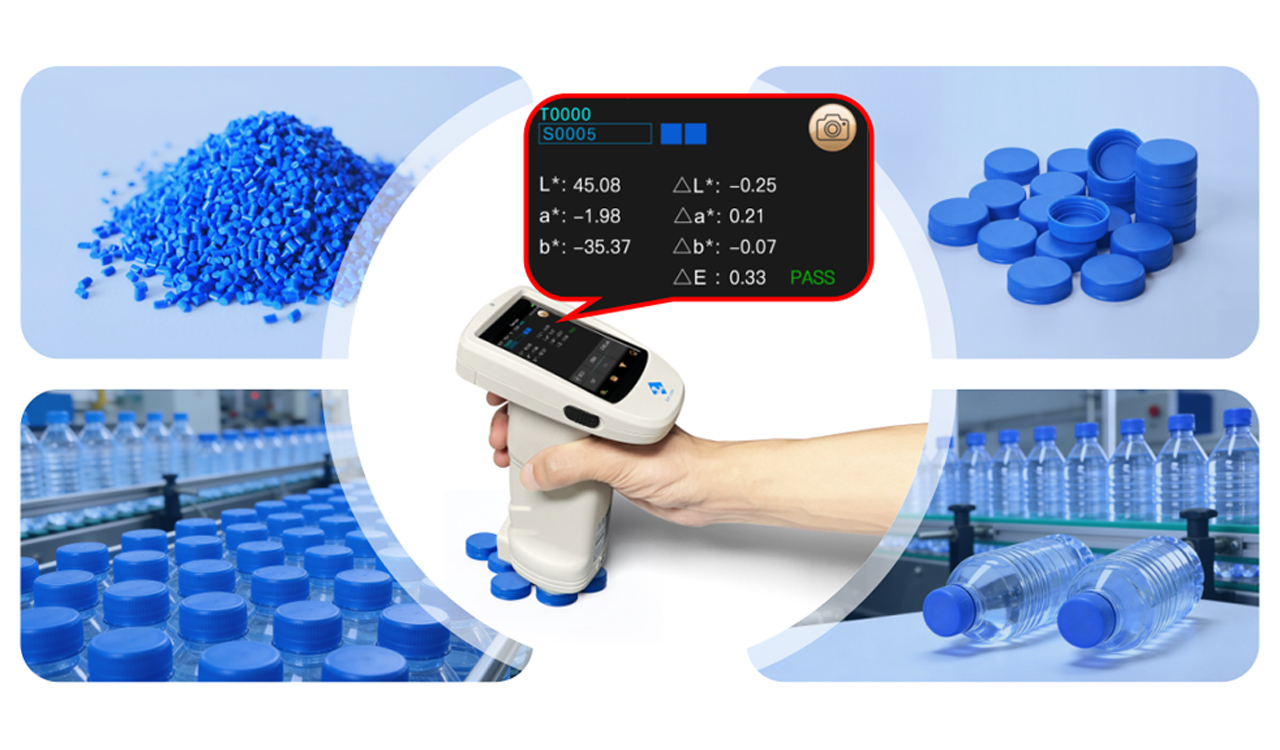

For quality inspectors, the 3nh portable spectrophotometers enable them to check incoming resin bags directly on the floor of the warehouse. Technicians collect CIELAB values in seconds to maintain consistency and usability of the recycled resin streams.

Injection Molding and Component Fit: Disentangling Texture from True Pigment

Multi-component plastic products have intricate assembly problems. Moulded dashboard, soft touch door panels, textured steering wheel covers and shiny control buttons merge in the automotive interior. Every part is manufactured from a different mold, resin mix or source.

Colours are even more difficult to match when the surface is moulded. This scatters light in a different way even if the same colored resin was molded into both parts, the scatters will differ in a coarse leather-grain finish compared to a smooth, high-gloss surface.

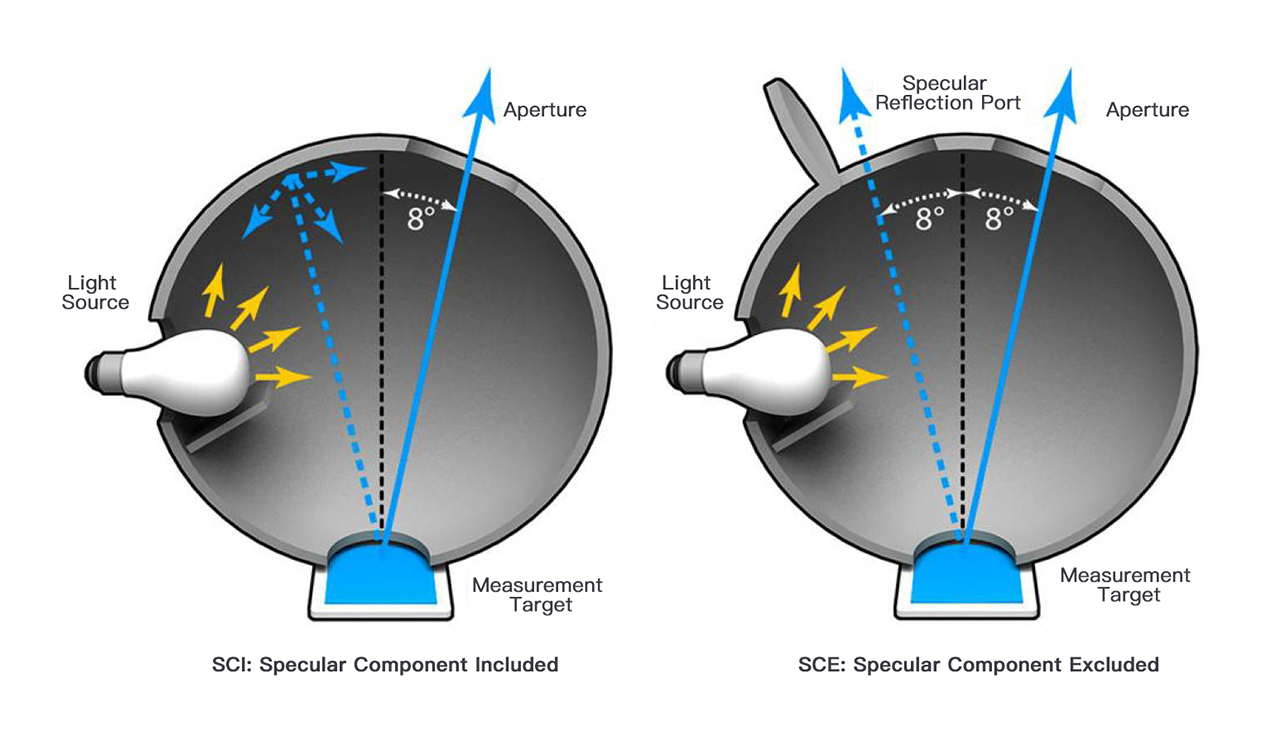

The solution to this optical illusion is to use a d/8 sphere geometry spectrophotometers with dual measuring modes - SCI (Specular Component Included) and SCE (Specular Component Excluded).

In SCI mode, the total pigment colour is measured, without taking into account mould texture and surface gloss. Surface color measured in SCE mode is the same as what the human eye sees including gloss variations.

Handheld spectrophotometers 3nh provide d/8 measurement in the laboratory directly to the molding machine. The multi-aperture options (8mm, 4mm, 1.5mm) enable inspectors to test flat housing walls, thin clips and curved plastic handles directly from the mold.

Rubber and Elastomeric Seals: Managing Carbon Black and Vulcanization Shift

Rubber and thermoplastic elastomers (TPE/TPU) present special challenges in the measurement domain. Elastomers demand high levels of shade control from automotive weatherstrips to footwear soles, to industrial seals to soft-touch tool grips.

Carbon black, mineral fillers, and vulcanizing agents are all components of rubber compounds. Any slight colour change during vulcanization and the dispersion of the carbon black is responsible for the real colour and undertone of darker rubber parts.

Rubber samples are also frequently curved, rubber or oil finished. Rigid measuring ports will cause inaccuracies in soft rubber surfaces.

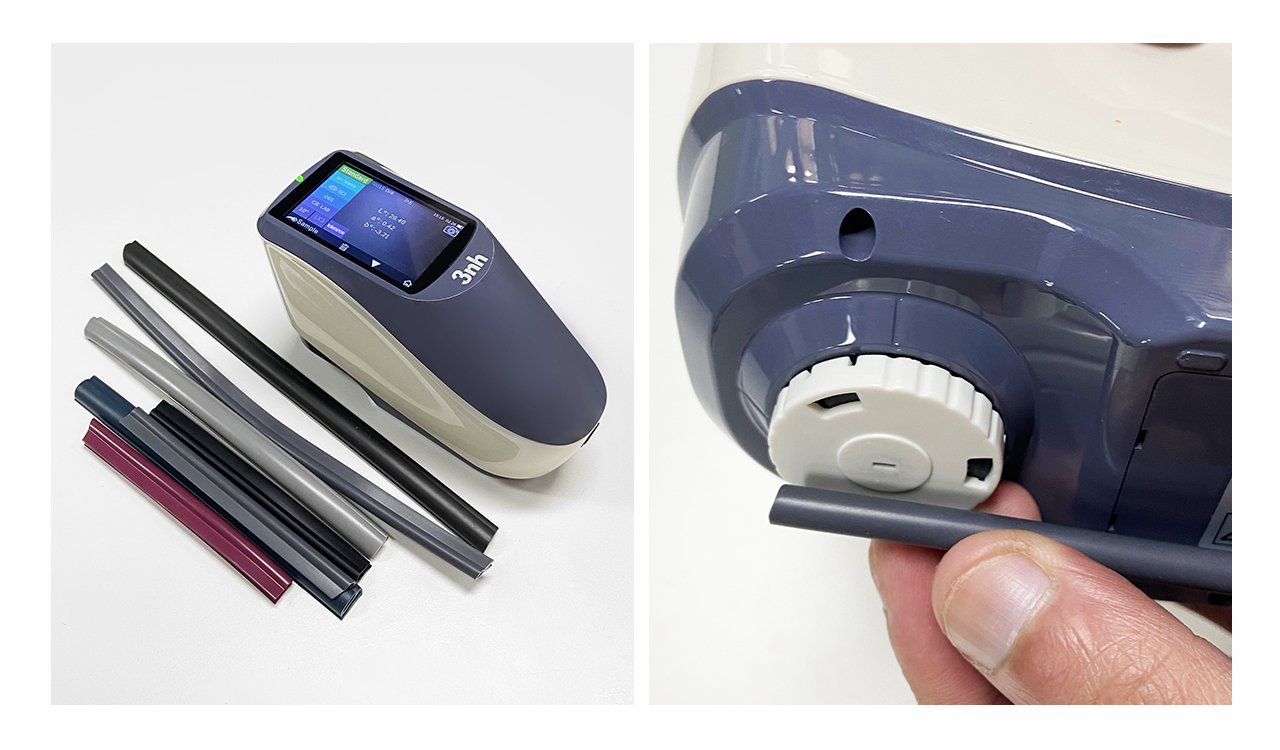

Foldable rubber and elastomer samples can be easily measured with 3nh spectrophotometers. Repeatable spectral data provided by custom measurement fixtures and stable optics ensure dark rubber seals and colorful TPE grips match the surrounding plastic trim panels.

Translucency and Haze Metrics: Streamlining Global Digital Workflows

Clear and semi transparent plastics have other optical properties besides colour. Strict control over light transmission and haze is required for PET beverage bottles, medical tubing, cosmetic jars and lighting diffusers.

Clear bottles look cloudy if the haze increases, which suggests that there is either polymer crystallization or contamination from a filler. Total light transmittance and haze percentages are measured in liquid resins and in molded transparent sheets with a spectrophotometer capable of transmission measurements.

Color management software makes global supply chains go round and round. Digital color standards, batch histories and Delta E 2000 color difference calculations are stored in software such as 3nh SQCX, and shade drift across molding facilities around the world is highlighted.

Digital standards replace physical plastic standards that are subject to scratching, fading and aging over time. Digital spectral targets sent to molding plant in Asia in seconds from a design center in the USA, speeding up product launches and reducing approval costs.

Transforming Polymer Quality Control with 3nh Measurement Tools

The process of creating high-volume plastic parts is quick. Moldings that fall out of specification cost dearly when it comes time to scrap a molding run. The use of color as a measurable spectral information changes the way plastic processors, compounders and recyclers work.

Whether it is raw masterbatch pellets or recycled flakes, or complex injection molded components or flexible rubber seals, 3nh optical measurement solutions offer full quality control. Precision benchtop and portable instruments avoid shade disputes, reduce material waste and ensure visual harmony throughout all plastic assemblies.

Repetition establishes trust amongst buyers. 3nh precision instruments serve plastic processors with the greatest accuracy in each and every production run.
