Colour Measurement for Automotive Manufacturers: A Practical Guide Using 3nh Instruments

If you build cars, you know that colour consistency shapes how customers judge quality. A door panel that reads even slightly different from the fender beside it signals poor craftsmanship before anyone checks the specs. That is why colour measurement for automotive manufacturers has moved from optional check to standard quality control step. This guide shows how 3nh colorimeters and spectrophotometers help quality engineers, procurement managers, and R&D teams keep paint colours uniform across every batch and every supplier.

Why Automotive Colour Consistency Matters

Car bodies come together from dozens of components. Bumpers, mirrors, door handles, and body panels often come from different suppliers using different processes. Even when every supplier receives the same paint code, the final colours can drift. Substrate type, curing temperature, application method, and film thickness all push readings off target.

For quality engineers, this means rejecting parts that individually pass spec but look wrong side by side on the assembly line. For procurement managers, it means returned shipments and delayed schedules. For R&D engineers developing new finishes, it means long debugging cycles to figure out whether a colour difference comes from the paint formulation or the measurement method itself.

A reliable measurement workflow catches these problems early. Instead of relying on human judgment under inconsistent lighting, you get objective numbers. Delta E values give everyone in the supply chain a common reference point.

The Real Cost of Colour Mismatch in Car Manufacturing

Colour mismatches carry hard costs that many plants underestimate until they appear in the scrap report.

First, rework and scrap. A bumper painted in the wrong shade cannot simply be repainted. The original coat must be stripped first, which adds labour and material cost. Some plants report that colour-related rework accounts for 15 to 20 percent of total paint line defects.

Second, warranty claims. When a customer notices that their new car's plastic trim does not match the metal body, the dealership may replace parts under warranty. These claims are expensive and they chip away at brand trust.

Third, supplier disputes. Without measurement data, arguments over who caused the colour drift can drag on for weeks. With a spectrophotometer reading on file, the conversation shifts from opinion to data. This is where colour measurement for car manufacturers pays for itself, by cutting dispute resolution time from weeks to hours.

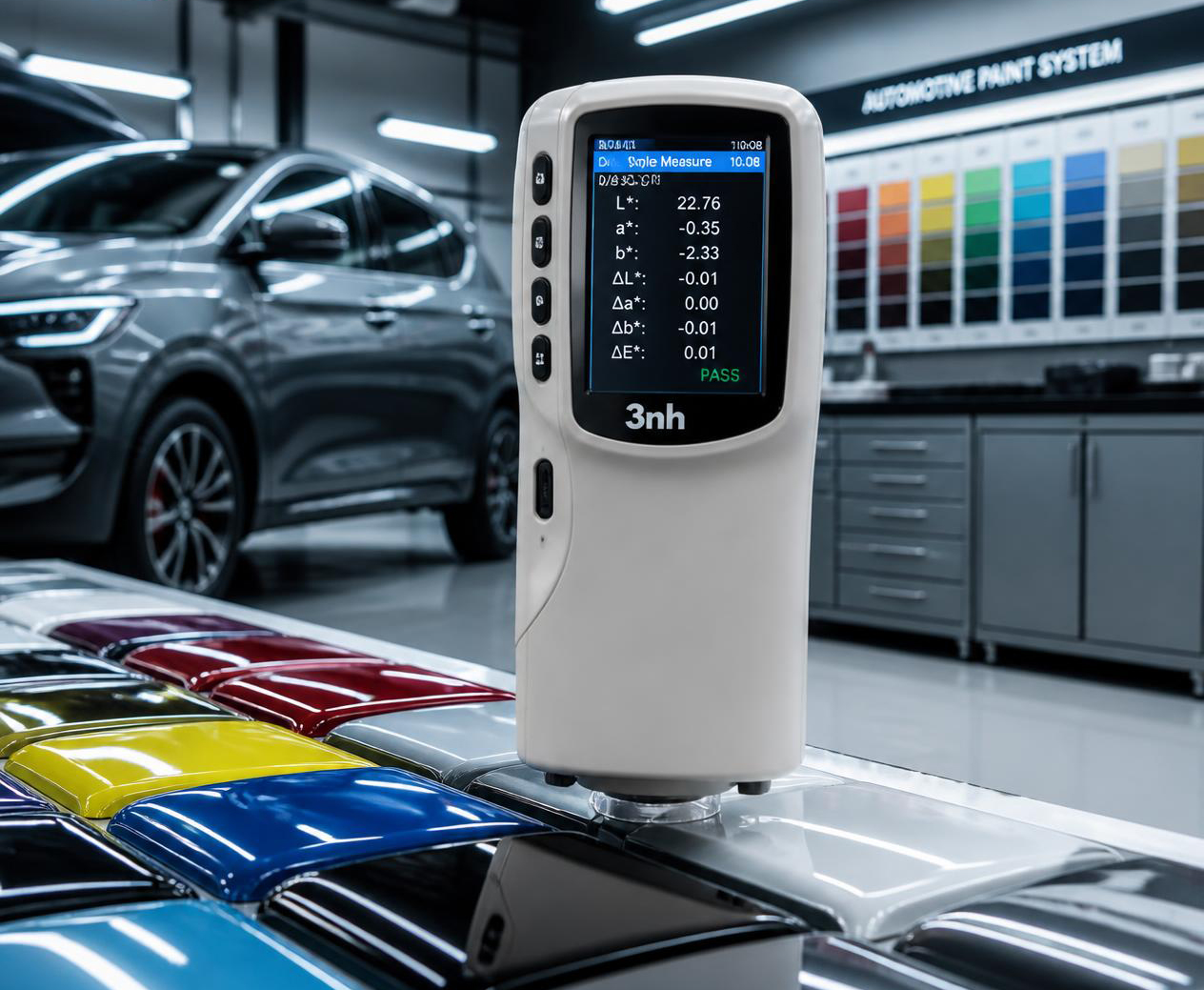

How 3nh Colorimeters Work for Automotive Applications

3nh colorimeters are built for quick, repeatable colour difference checks on the production floor. They measure colour in CIE colour spaces, typically CIELAB, and report Delta E values between a sample and a standard.

The typical workflow runs like this. The R&D team establishes a master standard panel when a new colour is approved. Quality control then measures production samples against that standard using a 3nh colorimeter. If the Delta E stays below an agreed threshold (often 1.0 or lower for body panels), the part passes.

Several 3nh colorimeter models feature apertures sized for automotive parts. The larger 8mm or 27mm measurement areas average out minor texture differences on metallic and pearlescent finishes. You get readings that match what the eye actually sees on the finished car.

These instruments also support multiple illuminants. You can check whether a colour holds up under different light sources. This matters for automotive colour measurement because customers view cars under showroom fluorescent, dealership parking lot metal halide, and outdoor daylight, sometimes all in the same visit.

3nh Spectrophotometers: Full Spectral Data for Paint Labs

A colorimeter tells you how much a sample differs from a standard. A spectrophotometer tells you why.

3nh spectrophotometers measure the full reflectance curve of a surface. They capture the percentage of light reflected at each wavelength across the visible spectrum. This data is essential for automotive paint labs that need to diagnose colour problems rather than just detect them.

Here is an example. If a batch of silver metallic paint reads high in Delta E, the reflectance curve can show whether the problem comes from the aluminium flake content, the binder, or the tinting pigment. R&D engineers use this information to correct formulations rather than guessing at the cause.

The 3nh spectrophotometer lineup includes both portable and benchtop models. Portable units let auditors measure directly on car bodies at the end of the line. Benchtop units provide the stability needed for formulation work in the paint lab.

Choosing the Right 3nh Instrument for Your Line

Your choice between a colorimeter and a spectrophotometer depends on what you need to accomplish. The table below maps common needs to the recommended 3nh instrument type.

Procurement managers often start with a colorimeter for basic quality control. They add a spectrophotometer once the team needs deeper diagnostic capability. Both instruments can share the same master standards, so readings stay comparable across departments. For colour measurement for auto manufacturers setting up their first system, this staged approach keeps the initial budget manageable.

Best Practices for Colour Measurement in Automotive Production

Getting good numbers depends as much on your process as on your instrument. Here are practices that experienced quality teams follow:

Standardize your sample preparation. Clean every panel with the same solvent and cloth before measuring. Dust, fingerprints, and polish residue shift readings by several Delta E units.

Control measurement conditions. Measure at the same temperature and humidity whenever possible. Paint colour can shift with temperature, and some instruments are sensitive to ambient conditions.

Calibrate daily. 3nh instruments ship with white and black calibration tiles. Run the calibration routine at the start of each shift. A thirty-second calibration step prevents hours of wasted production later.

Train operators consistently. Different operators hold the instrument at different pressures and angles. Write a simple one-page procedure and have everyone practice until their readings agree within 0.2 Delta E.

Keep master standards protected. Store your master colour panels in a dark, temperature-controlled cabinet. Re-measure them periodically against a reference to detect fading before it corrupts your pass/fail decisions.

These steps apply to colour measurement for automotive lines of any size. Whether you run a single paint booth or manage colour across five plants, the discipline is the same.

Common Questions About Automotive Colour Measurement

What Delta E threshold should we use?

Most automotive OEMs specify a maximum Delta E of 1.0 for body panels and 1.5 to 2.0 for interior plastics. Metallic and pearlescent finishes may require multi-angle measurements to catch sparkle and flop differences that a single-angle reading misses. Discuss your specific requirements with your paint supplier and set the threshold in writing. Most automotive color measurement programs also document the illuminant and observer angle used for each standard, so there is no ambiguity on the shop floor.

Can a 3nh colorimeter measure curved surfaces?

Yes. The contact measurement method works on curves as long as the aperture sits flat against the surface. For tight curves like door handles, use a model with a small aperture. For large body panels, a larger aperture gives more representative readings.

How do we correlate readings between our plant and our supplier's plant?

First, exchange physical master panels so both sites share the same reference. Second, run a round-robin test. Measure the same set of panels at both sites and compare results. Third, agree on the same illuminant and colour space settings on both instruments. This process is standard practice for colour measurement for automotive industry supply chains.

Get Expert Advice on Your 3nh Instrument Setup

Choosing the right 3nh colorimeter or spectrophotometer depends on your paint types, production volume, and quality standards. Our team has helped plants across the car industry configure measurement systems that reduce colour rejects and simplify supplier communication.

Whether you are setting up colour measurement for car industry operations for the first time or upgrading from visual inspection to instrument-based control, we can recommend the right 3nh instruments. We also help you build a measurement procedure that your operators will actually follow.

Contact us today for a product demo, application notes, or a measurement system audit tailored to your line.
